SIR Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

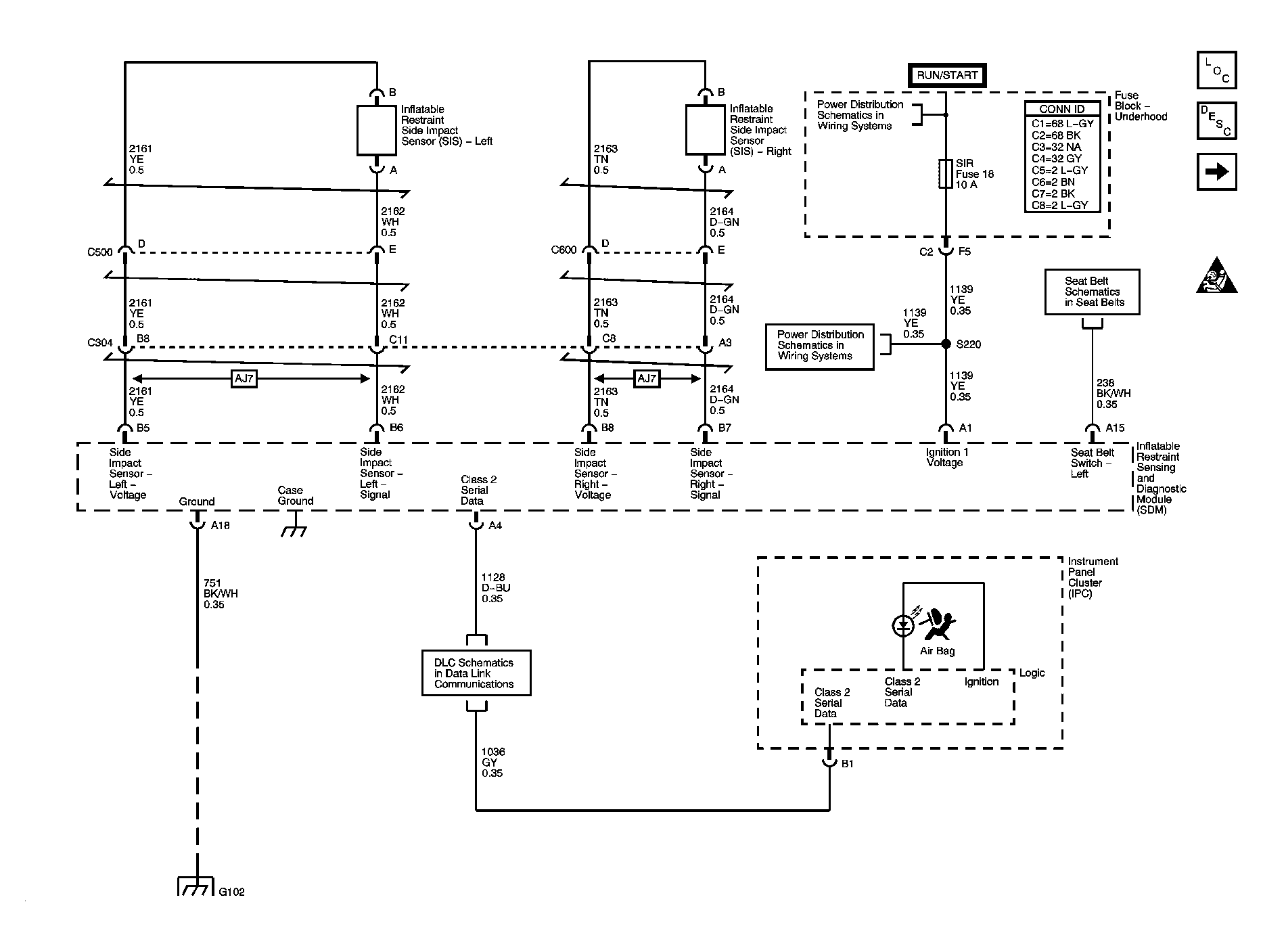

Fig 1: Power, Ground, Serial Data, Indicator, and Side Impact Sensors Schematic
GM1304055Courtesy of GENERAL MOTORS CORP.

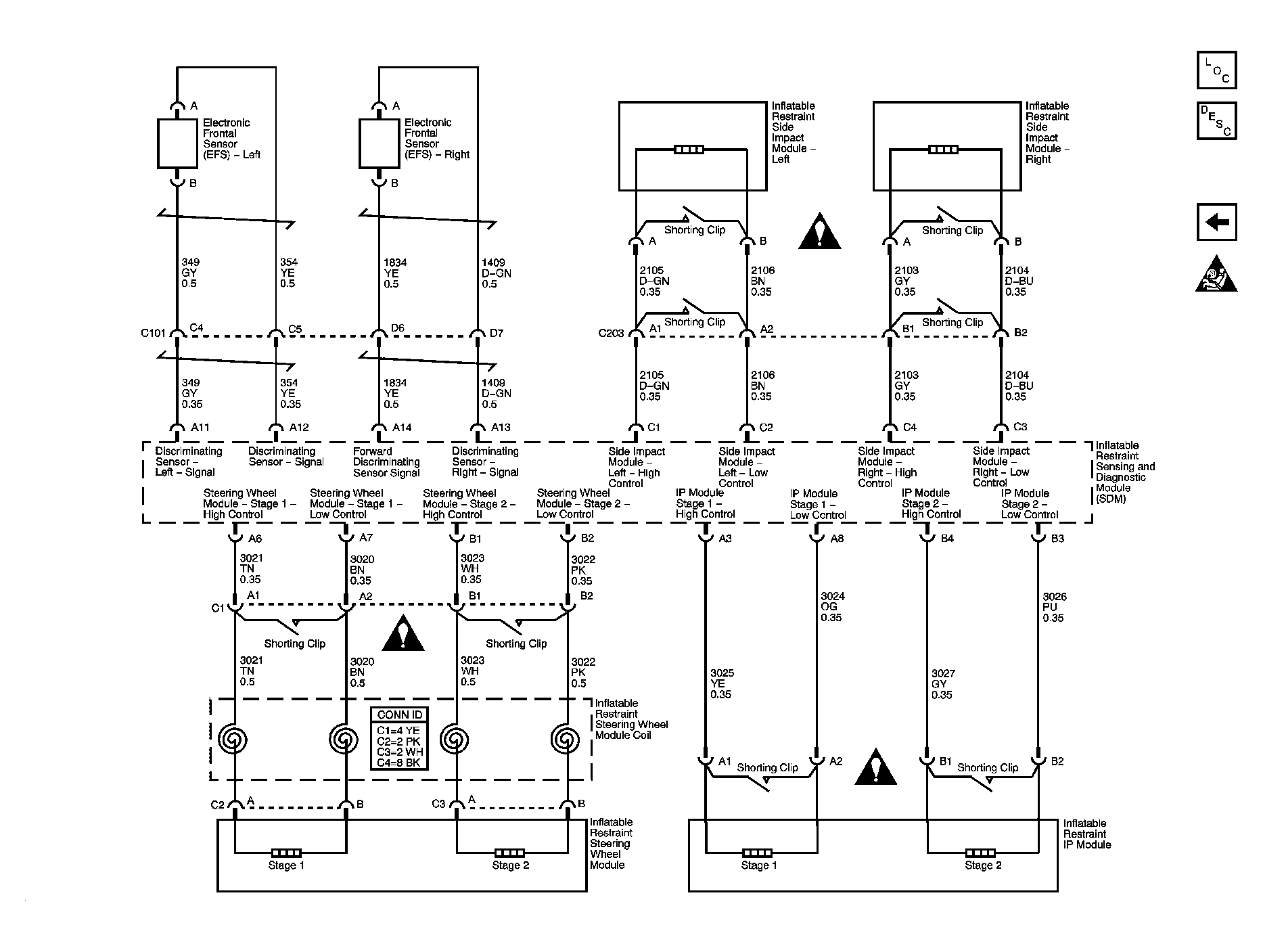

Fig 2: Frontal Sensors and Modules Schematic
GM1304099Courtesy of GENERAL MOTORS CORP.
