Fuel Hose/Pipes Routing Diagram (Without Returnless Fuel System)

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

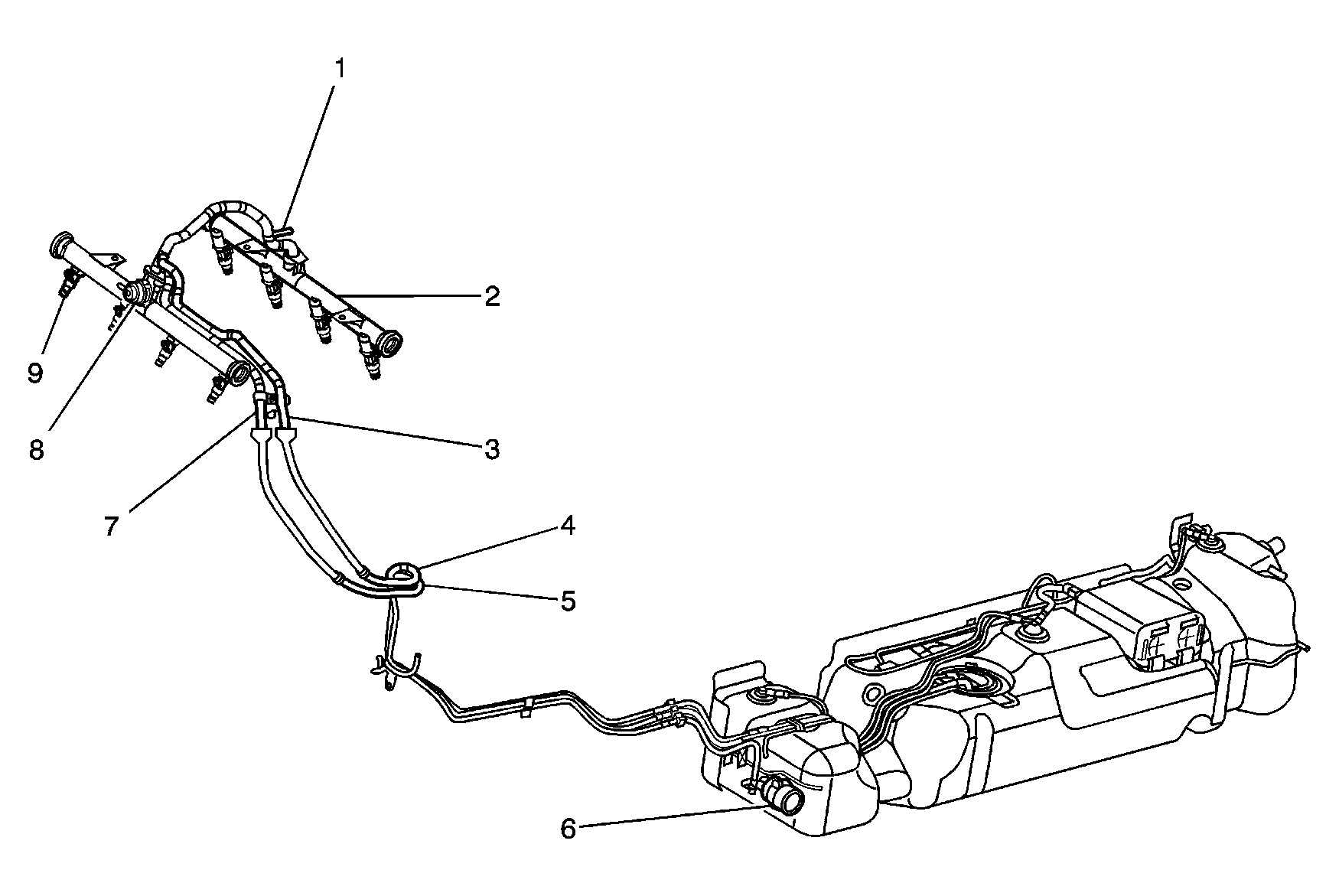

Fig 1: Fuel Hose/Pipes Routing Diagram (Without Returnless Fuel System)
GM884564Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pressure Service Connection
2 Fuel Injector Rail
3 Fuel Rail Feed Pipe
4 Fuel Feed Hose
5 Fuel Return Hose
6 Fuel Filter
7 Fuel Rail Return Pipe
8 Fuel Pressure Regulator
9 Fuel Injector
