Fuel Hose/Pipes Routing Diagram (With Returnless Fuel System)

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

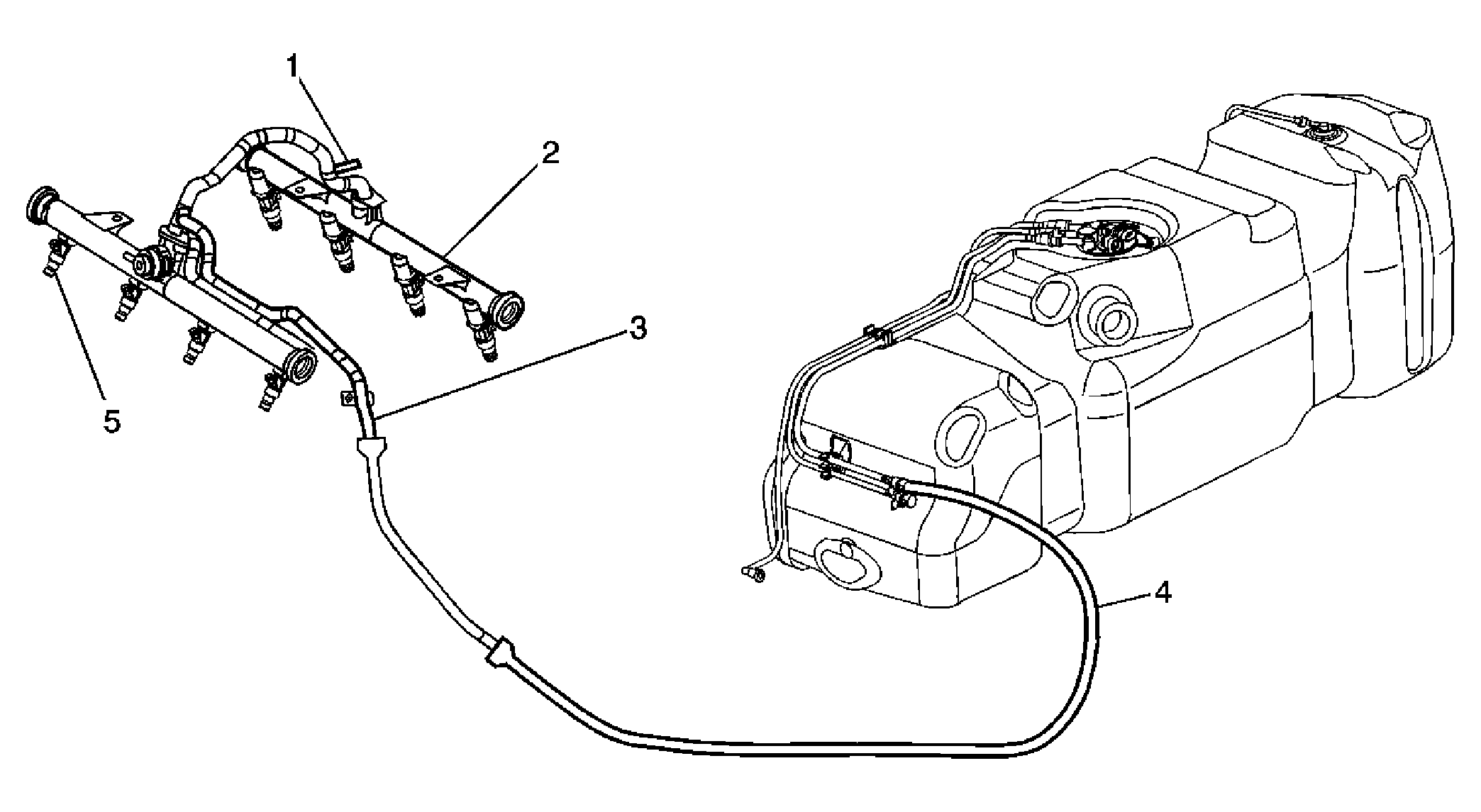

Fig 1: Fuel Hose/Pipes Routing Diagram (With Returnless Fuel System)
GM1244350Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pressure Service Connection
2 Fuel Injector Rail
3 Fuel Rail Feed Pipe
4 Fuel Feed Hose
5 Fuel Injector
