Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: A special anti-seize compound is used on the HO2S threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor easier to remove. New, or service replacement sensors already have the compound applied to the threads. If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before the reinstallation.
    Fig 1: Removing/Installing HO2S
    GM899721Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Component Fastener Tightening Notice in Cautions and Notices.
  1. If reinstalling the old sensor, coat the threads with anti-seize compound GM P/N 12377953, or equivalent.
  2. Install the HO2S (2).

    Tighten:  Tighten the sensor to 42 N.m (31 lb ft).

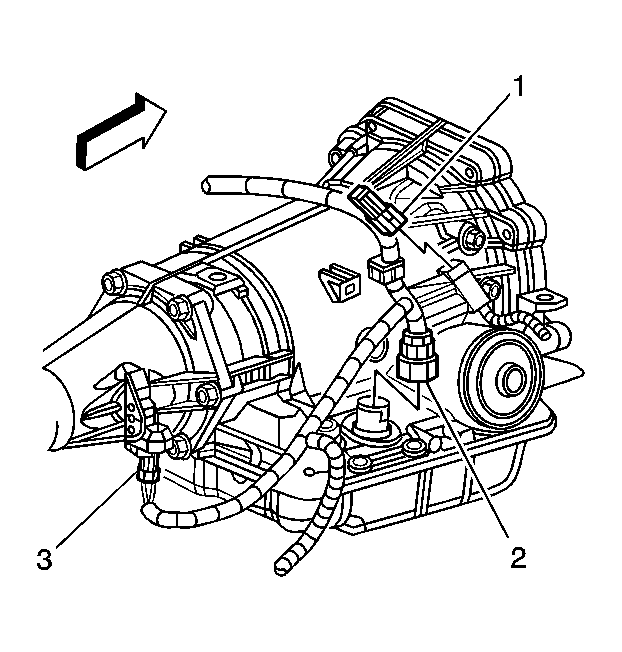

    3. Fig 2: Disconnecting/Connecting HO2S Electrical Connector
    GM899723Courtesy of GENERAL MOTORS CORP.
  3. Connect the HO2S electrical connector (1).
  4. Install the CPA retainer.
  5. Lower the vehicle.
