Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

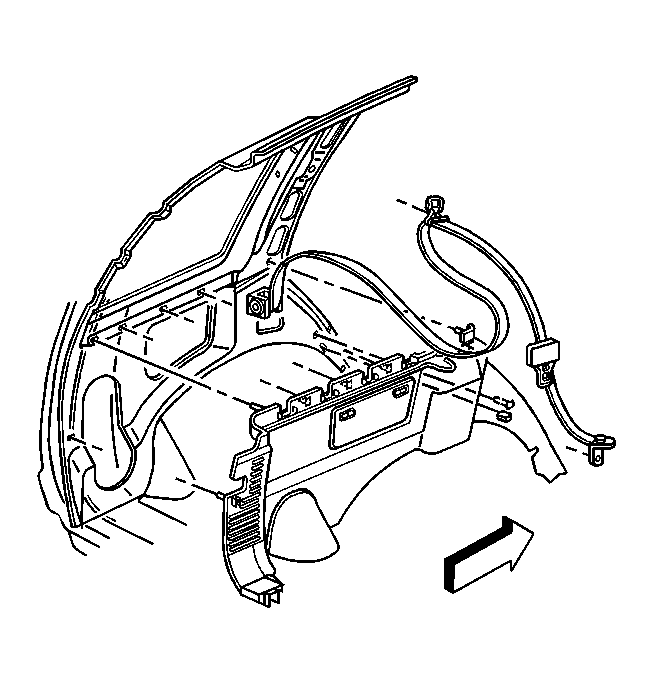

- Position the trim panel to the vehicle.
- Position the seat belt over the top of the trim panel, ensuring that the buckle is not behind the trim panel.
- Index the locating tabs on the trim panel to the holes in the body.
- Seat the clips the retain the trim panel to the body.
- Install the seat belt lower anchor.
Tighten: Tighten the anchor bolt to 70. N.m (52 lb ft).
- Install the left rear door sill panel. Refer to Door Sill Plate Replacement - Rear (TrailBlazer, Envoy, Bravada) or Door Sill Plate Replacement - Rear (TrailBlazer EXT, Envoy XL, Envoy XUV) .
- Install the liftgate sill plate. Refer to Door Sill Plate Replacement - Liftgate .
- Install the left body side upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (TrailBlazer, Envoy, Bravada) .
NOTE:
Refer to Fastener Notice in Cautions and Notices.
