Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Route the seat belt webbing through the slot in the panel. Ensure that there are no twists in the belt.

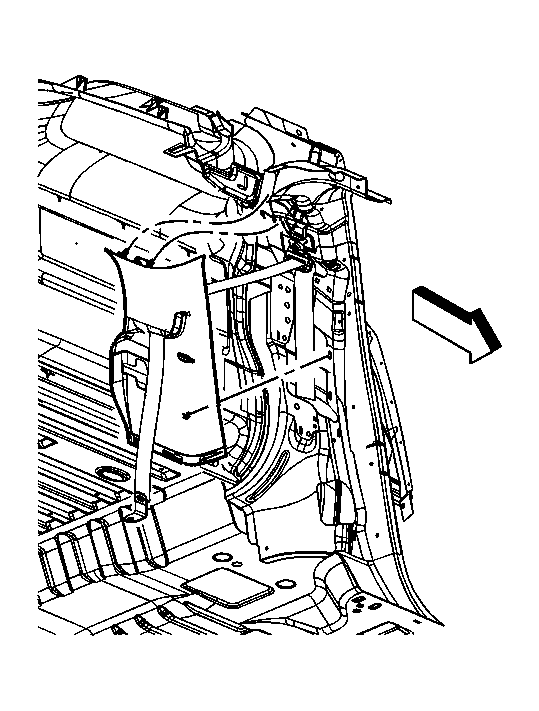

Fig 1: Identifying Trim Panel - Body Lock Pillar Upper (Envoy XUV)
Courtesy of GENERAL MOTORS CORP.
Install the trim panel to the lock pillar.
Install the rear seat belt lower anchor bolt. Refer to Seat Belt Replacement - Rear (TrailBlazer, Envoy, Bravada) , Seat Belt Replacement - Rear (TrailBlazer EXT, Envoy XL) or Seat Belt Replacement - Rear (Envoy XUV) .
Install the lower body lock pillar trim panel. Refer to Trim Panel Replacement - Body Lock Pillar Lower (Envoy XUV) .
