Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

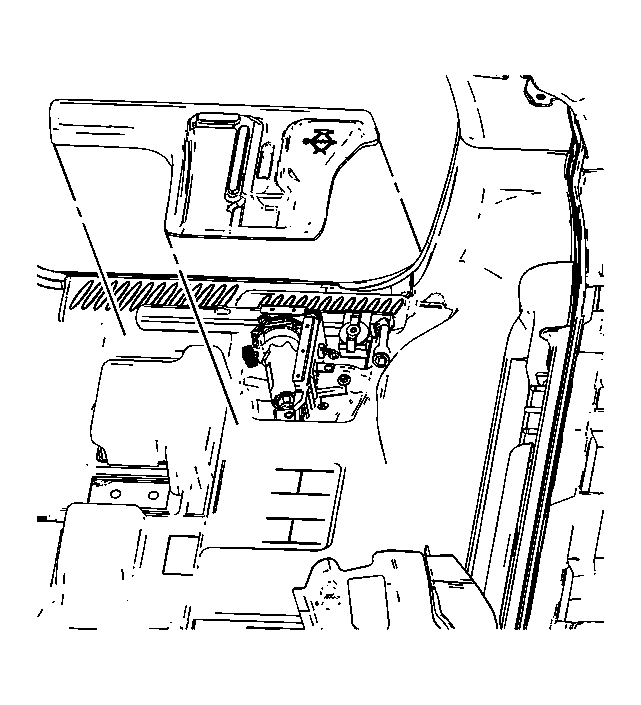

    Fig 1: Identifying Jack Stowage Cover
    GM1237406Courtesy of GENERAL MOTORS CORP.
  1. Raise the midgate to the up position.
  2. Install the jack stowage cover by pressing firmly into position.
  3. Engage the latch on top of the cover.
  4. Unfold the right rear seat to the passenger position.
