Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

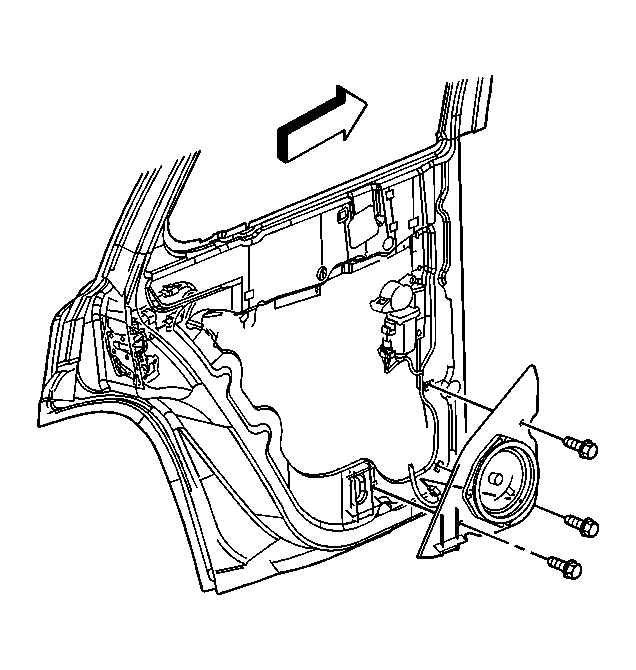

    Fig 1: Installing Rear Door Speaker
    GM683437Courtesy of GENERAL MOTORS CORP.
  1. Install the speaker to the door.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 3 speaker retaining bolts.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

  3. Connect the speaker electrical connector.
  4. Install the water deflector. Refer to Water Deflector Replacement - Rear Door in Doors.
  5. Install the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door in Doors.
