Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door sill plate. Refer to Door Sill Plate Replacement - Front in Interior Trim.

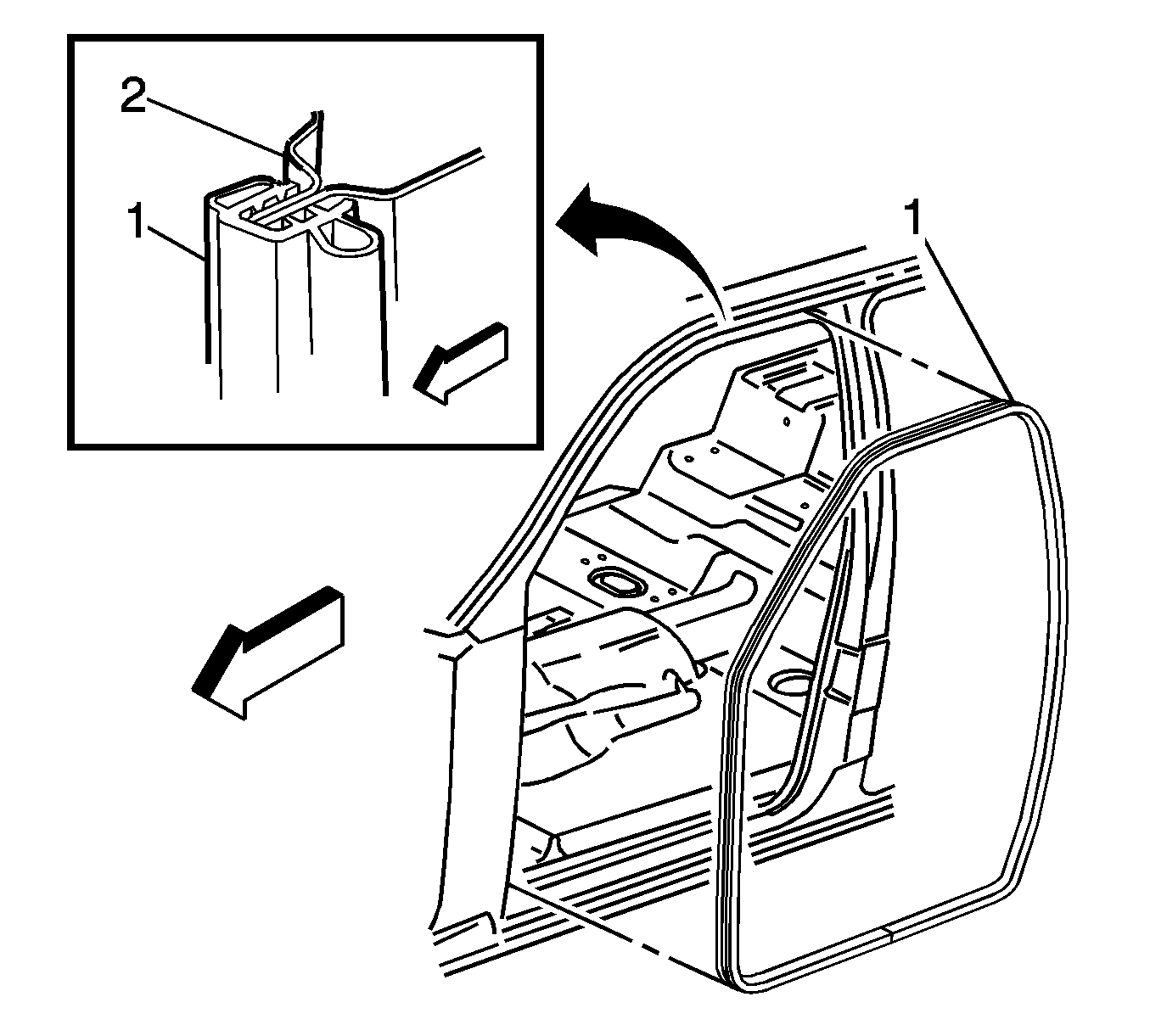

    2. Fig 1: Removing Front Door Opening Weatherstrip
    GM686582Courtesy of GENERAL MOTORS CORP.
  2. Remove the weatherstrip from the pinch-weld flange.
