Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

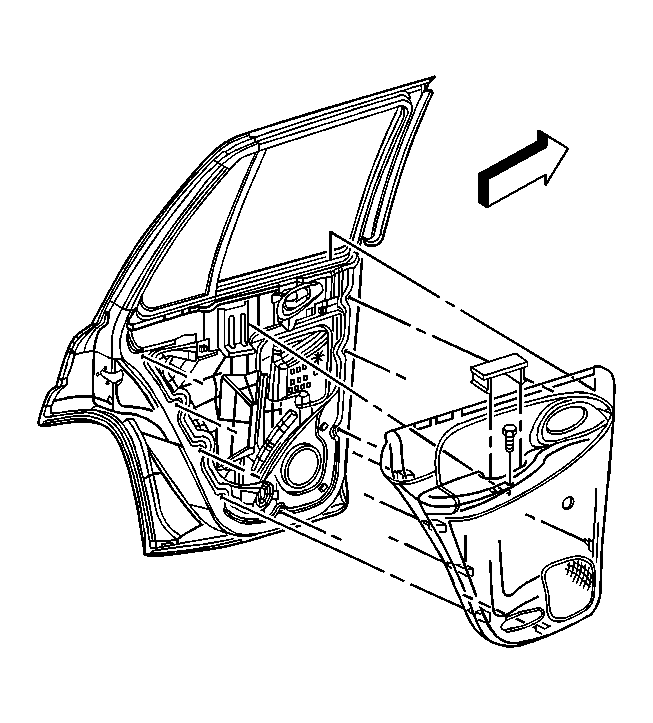

    Fig 1: Replacing Side Rear Door Trim Panel
    GM683552Courtesy of GENERAL MOTORS CORP.
  1. Remove the cover from the trim panel.
  2. Remove the 2 retaining screws from the trim panel.
  3. Remove the power window switch. Refer to Power Window Switch Replacement - Rear Door (Chevrolet) .
  4. Use the J 36796  in order to release the fasteners that retain the trim panel to the door.
  5. Remove the trim panel from the door.
