Exterior Lights Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Park Lamp Relay Schematic

GM1332428

Courtesy of GENERAL MOTORS CORP.

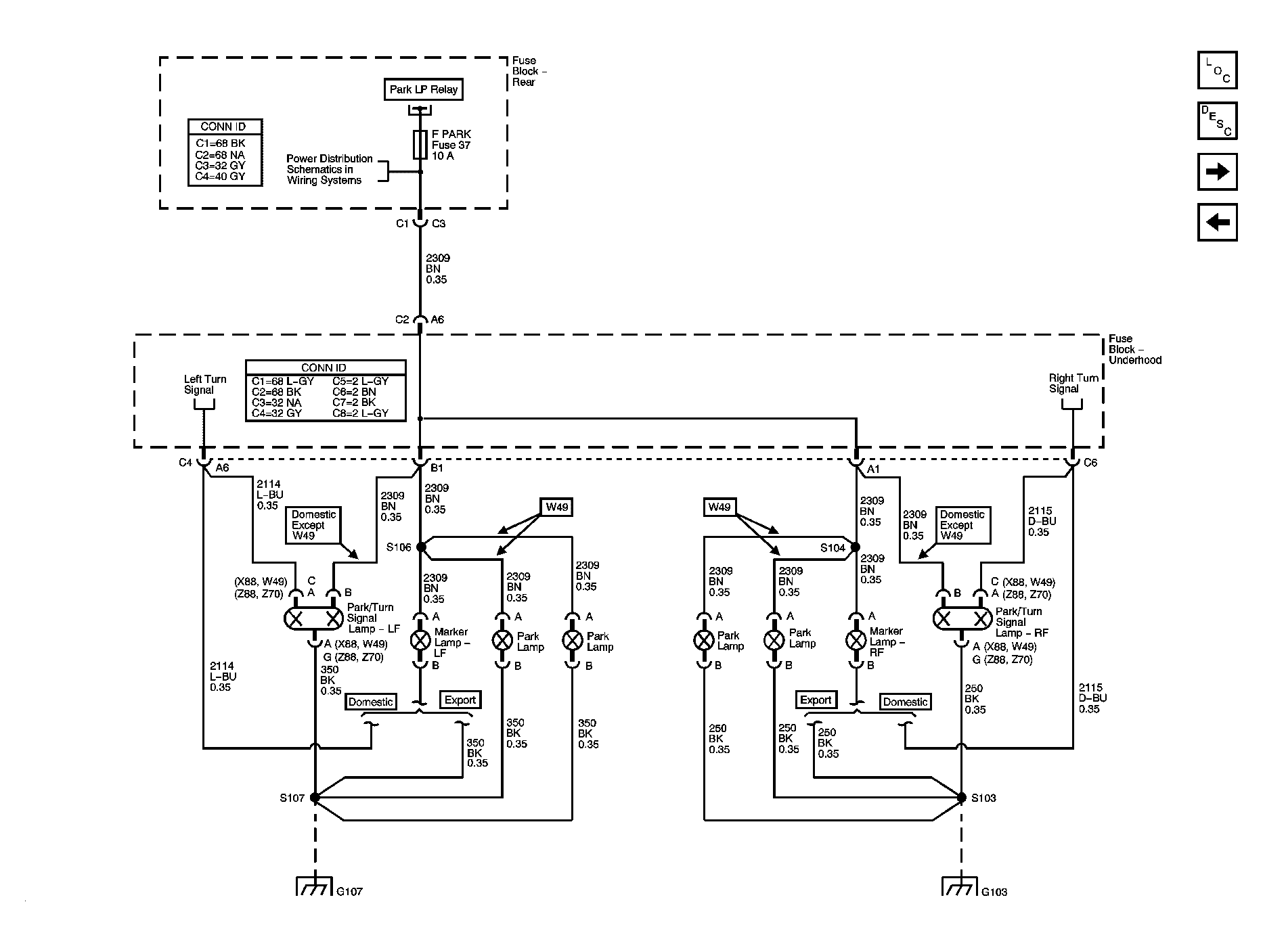

Fig 2: Marker and Front Park Lamps Schematic

GM1332429

Courtesy of GENERAL MOTORS CORP.

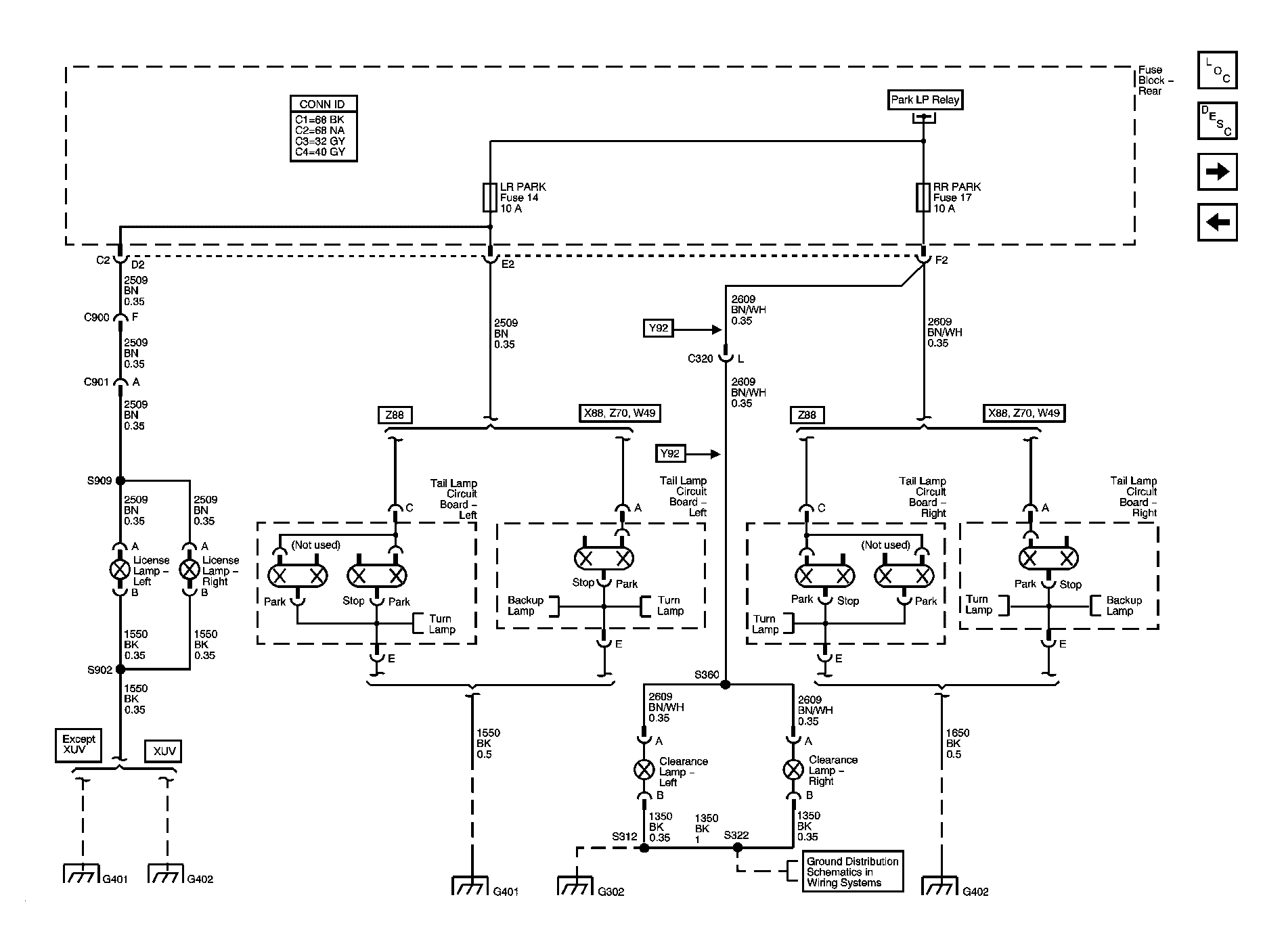

Fig 3: Clearance, License, and Rear Park Lamps Schematic

GM1332430

Courtesy of GENERAL MOTORS CORP.

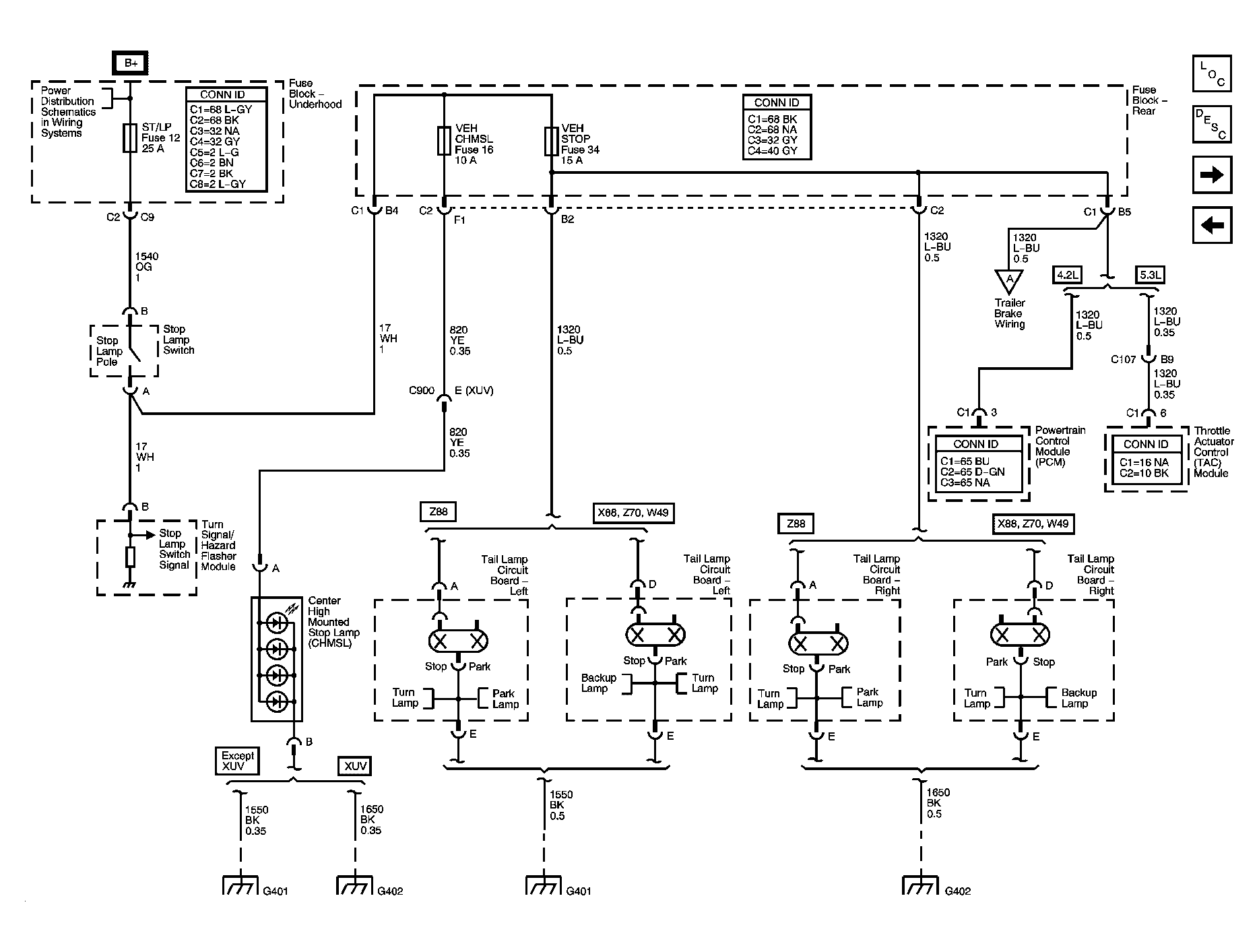

Fig 4: Stop Lamps Schematic

GM1332431

Courtesy of GENERAL MOTORS CORP.

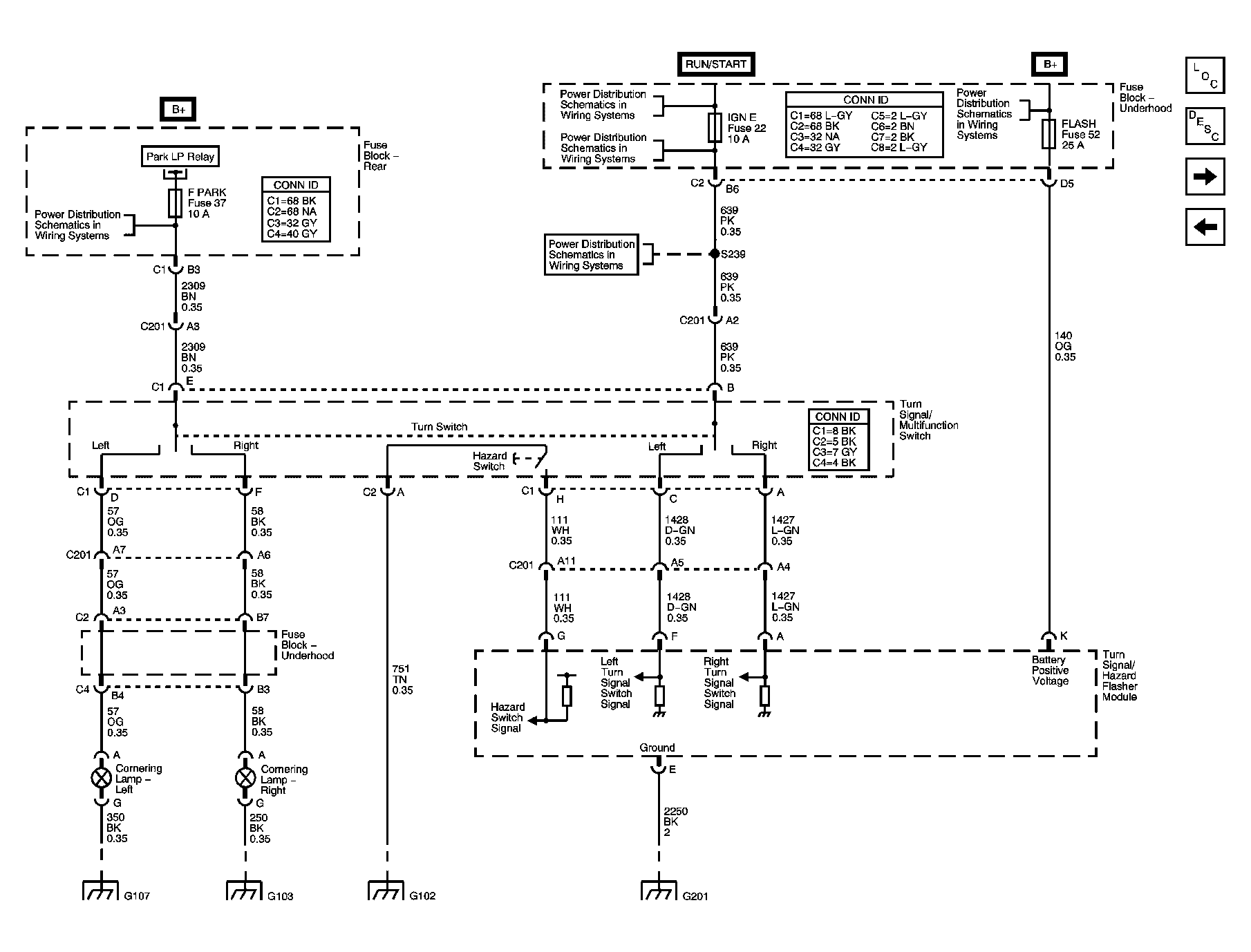

Fig 5: Turn Signal Multifunction and Cornering Lamps Schematic

GM1332432

Courtesy of GENERAL MOTORS CORP.

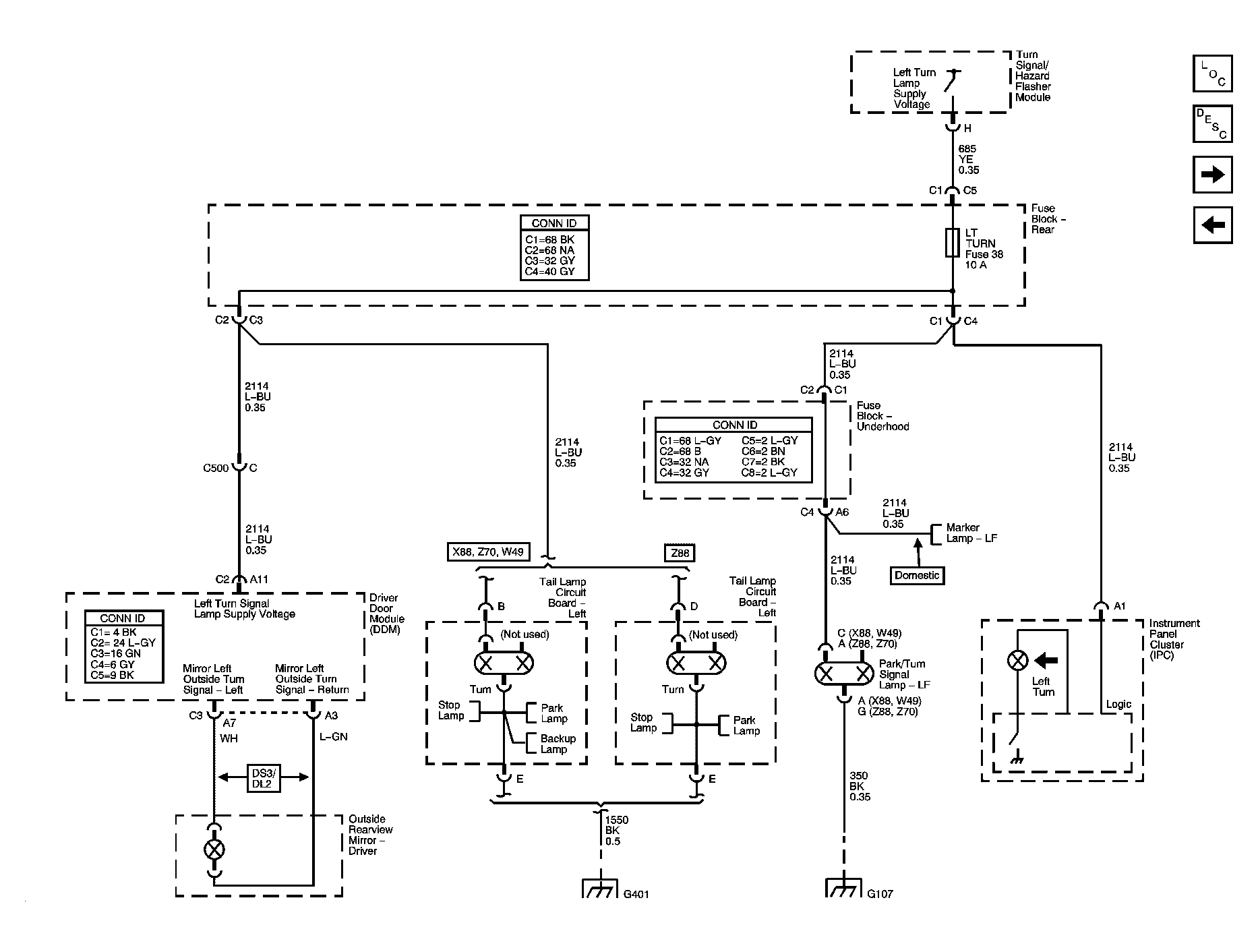

Fig 6: Left Turn Signals Schematic

GM1332433

Courtesy of GENERAL MOTORS CORP.

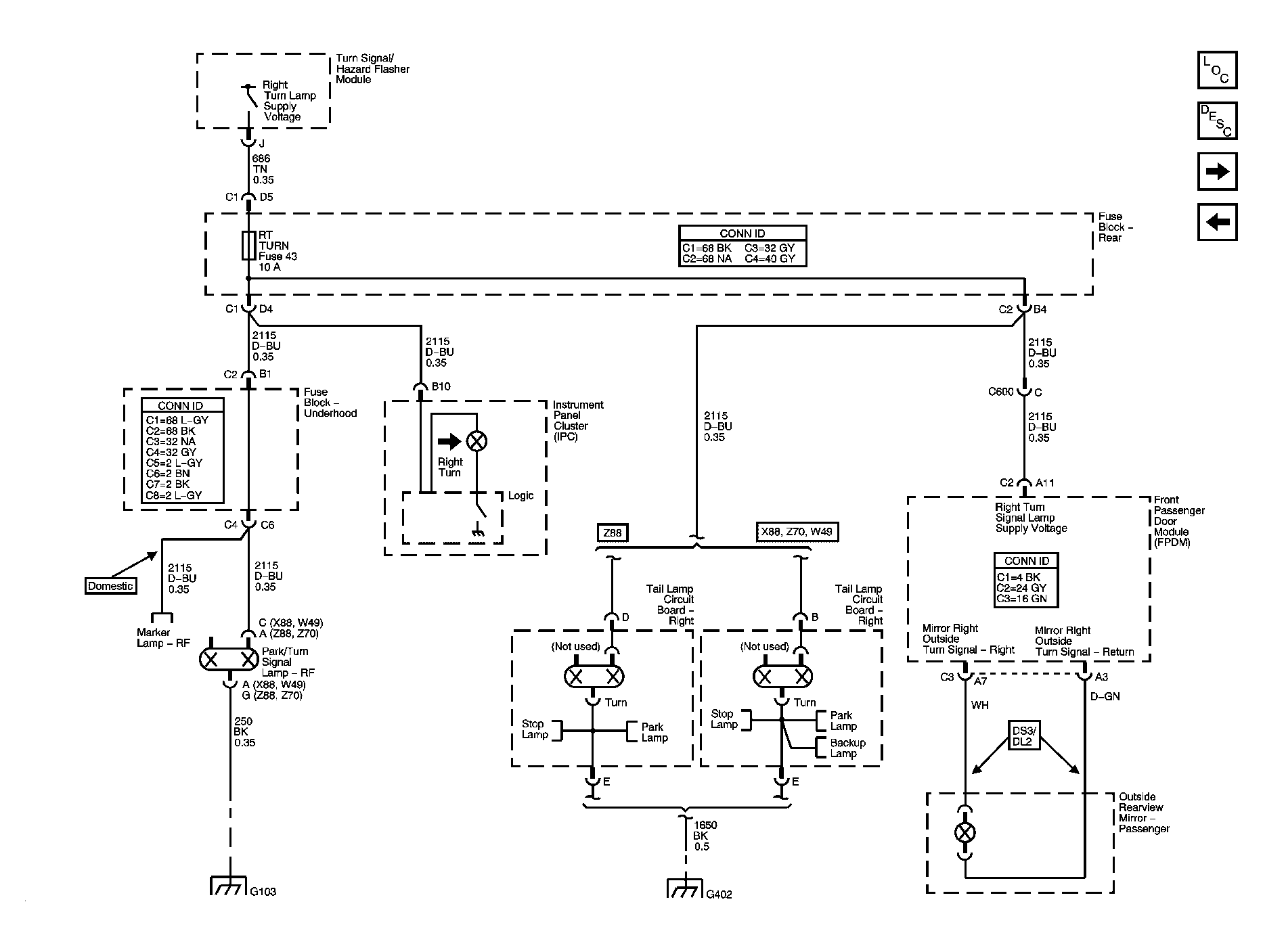

Fig 7: Right Turn Signals Schematic

GM1332434

Courtesy of GENERAL MOTORS CORP.

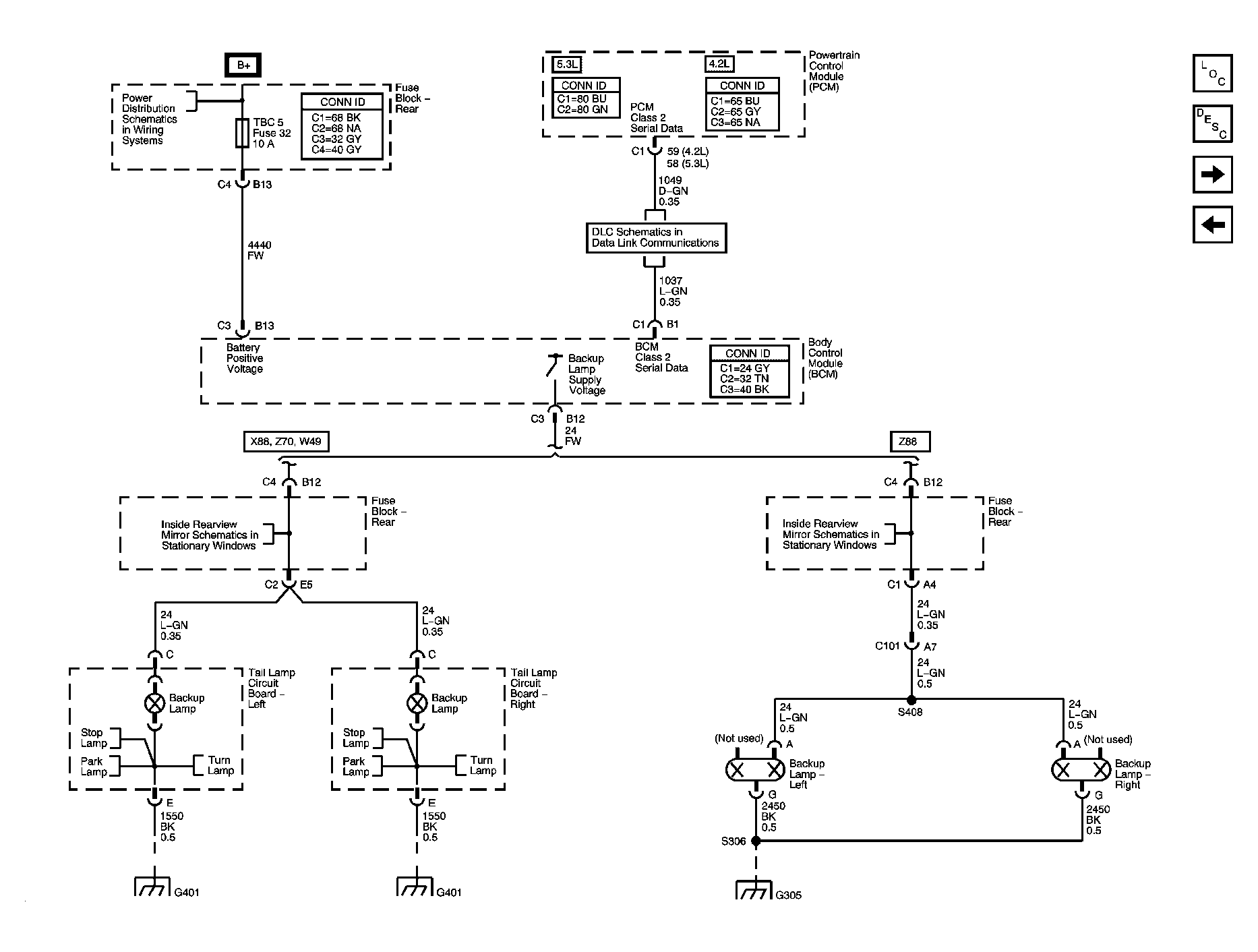

Fig 8: Backup Lamps Schematic

GM1332435

Courtesy of GENERAL MOTORS CORP.

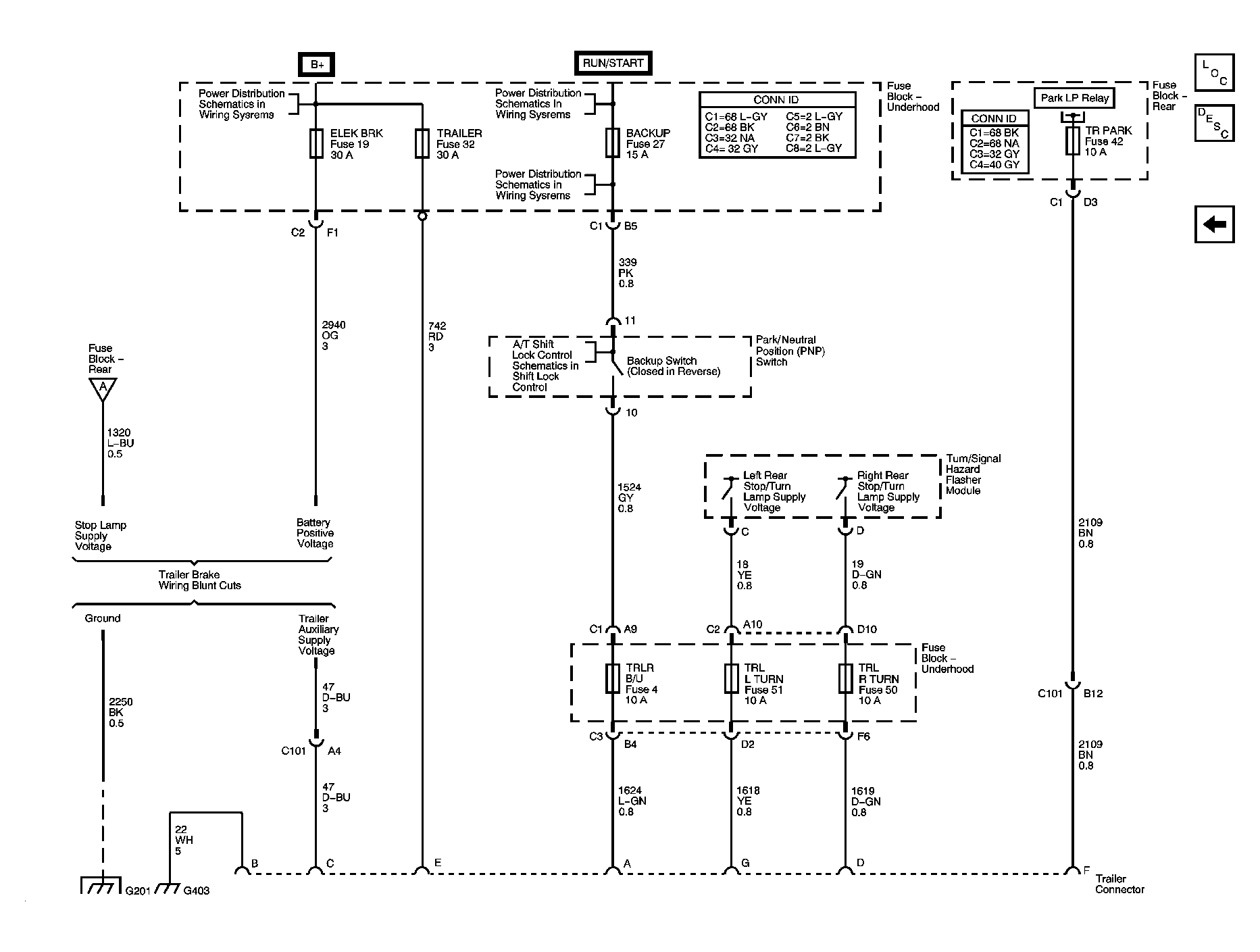

Fig 9: Trailer Wiring Schematic

GM1332436

Courtesy of GENERAL MOTORS CORP.
