Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

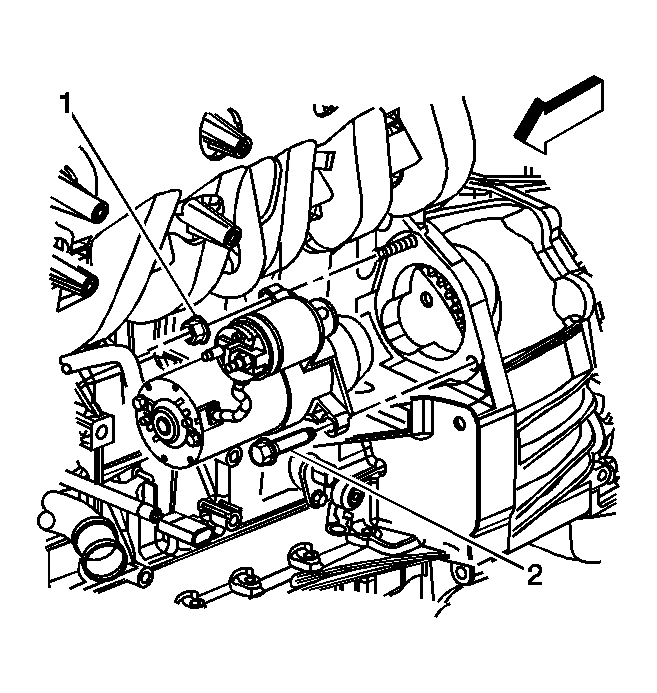

    Fig 1: View Of Starter Mount Bolt & Nut
    GM759316Courtesy of GENERAL MOTORS CORP.
  1. Install the starter motor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the starter motor mount bolt (2) and nut (1).

    Tighten:  Tighten the starter mount bolt and nut to 50 N.m (37 lb ft).

    3. Fig 2: View Of Starter & Related Components
    GM754358Courtesy of GENERAL MOTORS CORP.
  3. Connect the positive battery cable to the starter solenoid and secure the cable with a nut (1).

    Tighten:  Tighten the positive cable nut to 9 N.m (80 lb in).

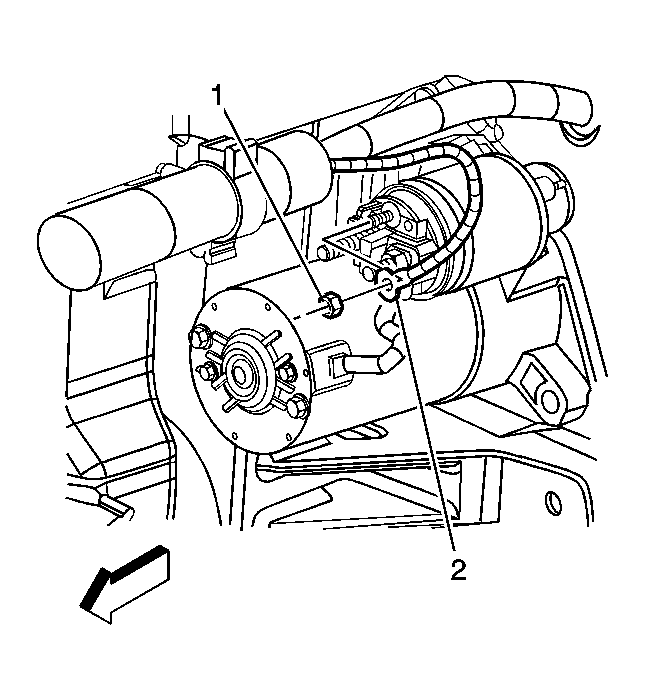

    4. Fig 3: View Of Starter Solenoid S-Terminal Lead & Nut
    GM1380362Courtesy of GENERAL MOTORS CORP.
  4. Install the starter solenoid S-terminal lead (2) to the solenoid and secure the lead with a nut (1).

    Tighten:  Tighten the S-terminal nut to 2.3 N.m (20 lb in).

  5. Install the vacuum brake booster hose. Refer to Vacuum Brake Booster Check Valve and/or Hose Replacement in Hydraulic Brakes.
  6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
