Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

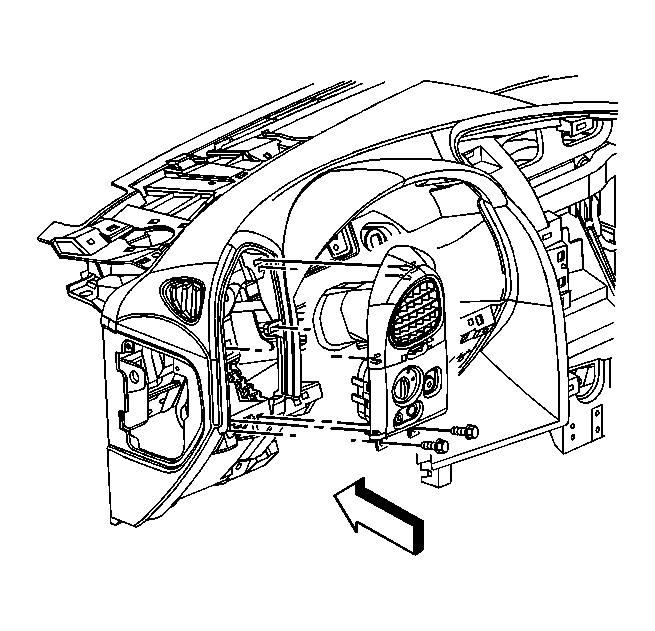

    Fig 1: Removing/Installing Trim Plate - Instrument Panel (I/P) Accessory Left
    GM712835Courtesy of GENERAL MOTORS CORP.
  1. Install the headlamp trim plate to the IP, ensuring the retaining clips are fully seated.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 2 headlamp trim plate retaining screws.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  3. Install the knee bolster trim panel. Refer to Trim Panel Replacement - Knee Bolster .
  4. Install the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left .
