Removal & Installation (4.8L, 5.3L & 6.0L)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Clean area around Camshaft Position (CMP) sensor before removal to prevent debris from entering engine. CMP sensor is located at the top center rear of engine. See Fig 1.
Loosen retaining bolt on intake manifold sight shield at top of engine. See Figure. Remove intake manifold sight shield from top of engine. Disconnect CMP sensor harness connector.
Remove CMP sensor retaining bolt. See Fig 2. Remove CMP sensor. To install, reverse removal procedure. Tighten CMP sensor retaining bolt to specification. See TORQUE SPECIFICATIONS .

Fig 1: Locating Camshaft Position Sensor & Engine Oil Pressure Sensor (4.8L, 5.3L & 6.0L)

Courtesy of GENERAL MOTORS CORP.

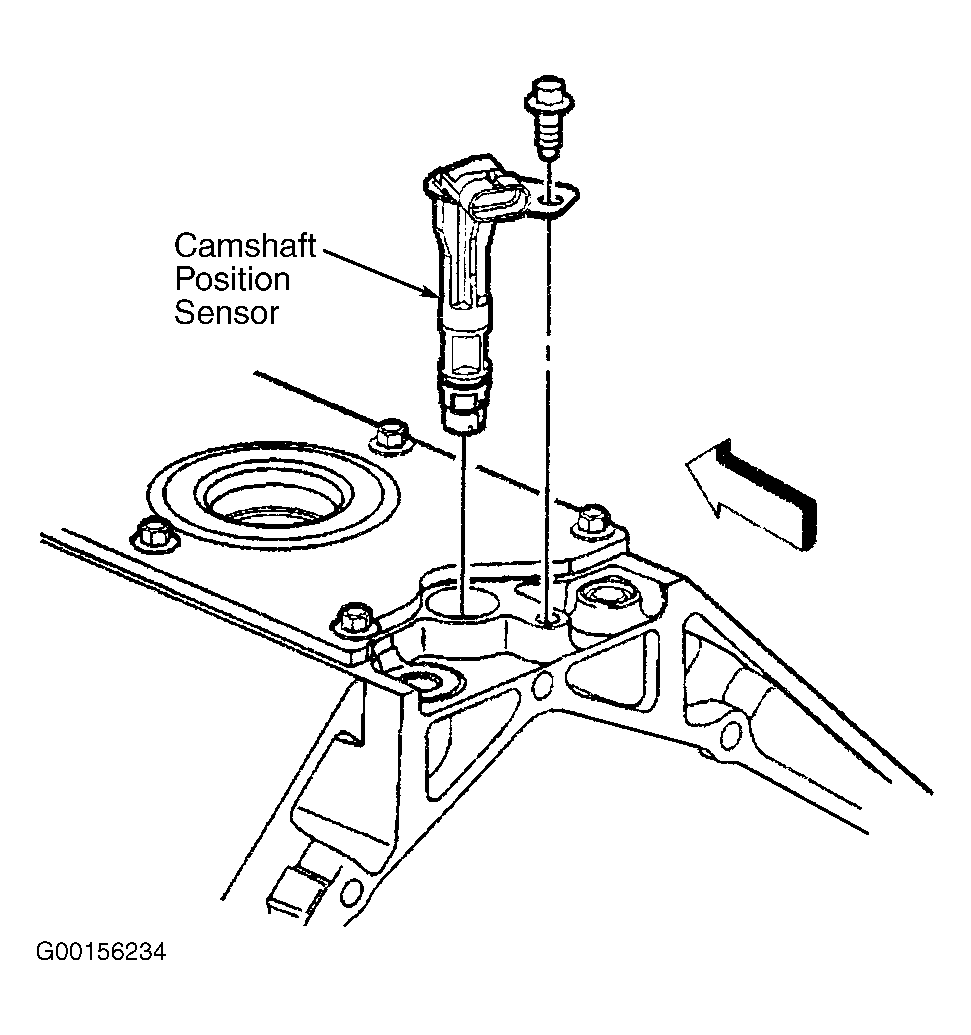

Fig 2: Removing/Installing Camshaft Position Sensor (4.8L, 5.3L & 6.0L)

Courtesy of GENERAL MOTORS CORP.
