EVAP Canister: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

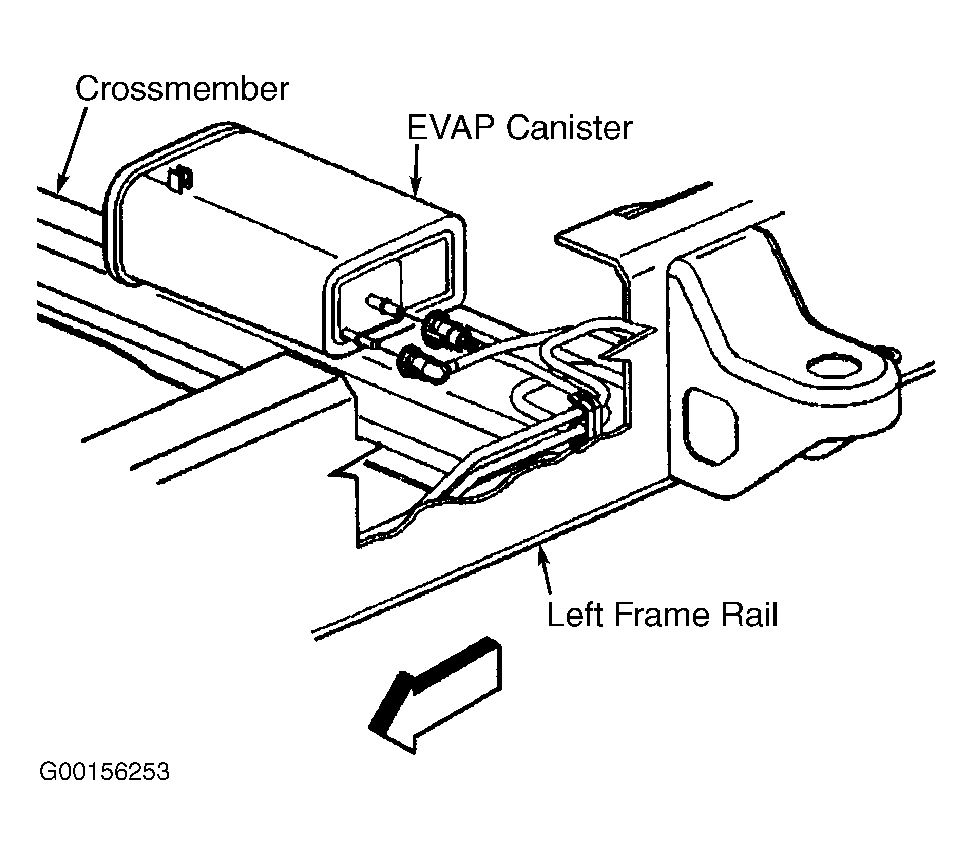

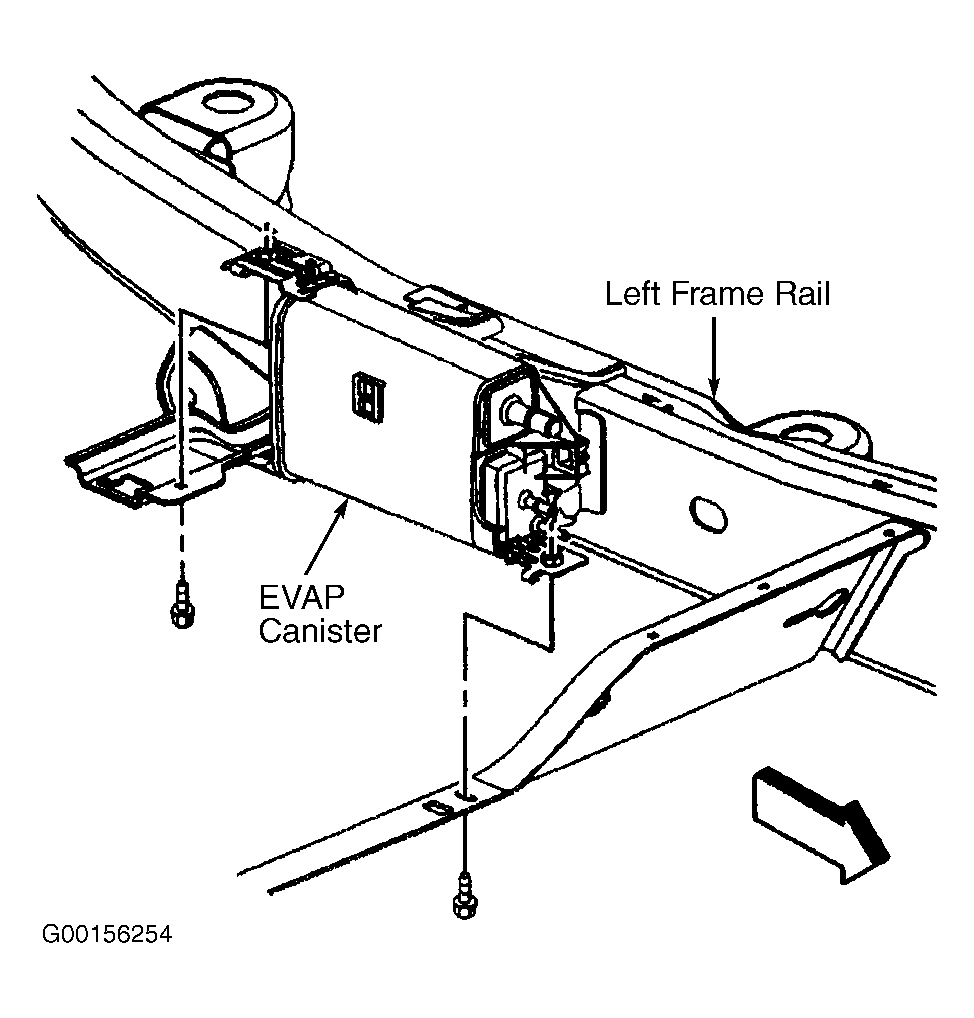

Raise and support vehicle. Locate EVAP canister, mounted to crossmember or left frame rail, near front of fuel tank. See Figure or Figure.
Remove EVAP canister mounting bolts. Disconnect EVAP pipes at EVAP canister. Disconnect EVAP vent valve pipe at EVAP canister bracket. Remove EVAP canister.
