EGR Valve: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean EGR valve gasket surfaces. Install EGR valve using NEW gasket, and ensuring EGR valve is oriented correctly. See Fig 1.
  2. Tighten EGR valve mounting bolts to specification. See TORQUE SPECIFICATIONS . Connect EGR valve harness connector. Connect negative battery cable.

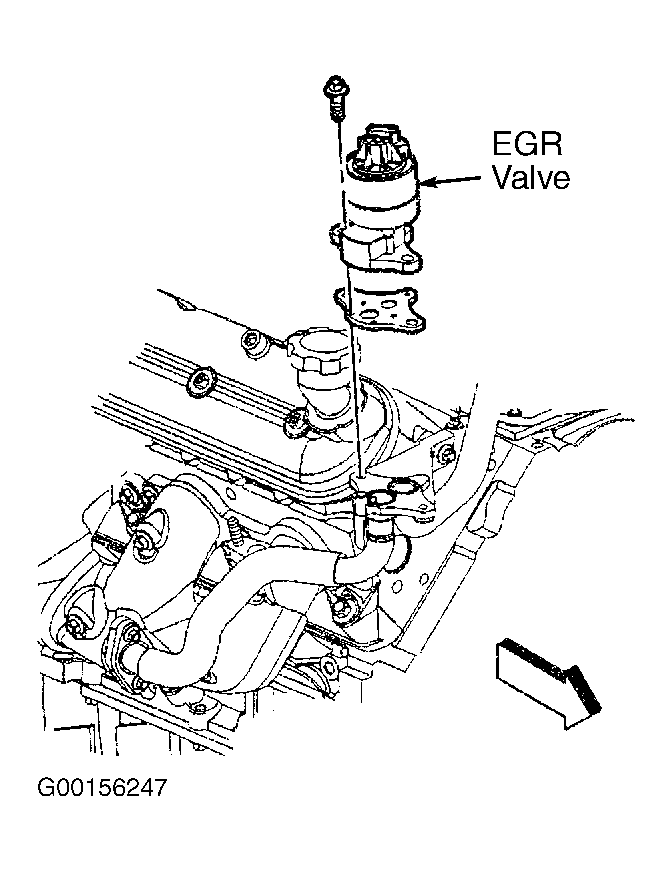

Fig 1: Removing/Installing EGR Valve (4.8L, 5.3L & 6.0L)
G00156247Courtesy of GENERAL MOTORS CORP.


Clean EGR valve gasket surfaces. Install EGR valve using NEW gasket, and ensuring EGR valve is oriented correctly. See Fig 1. Tighten EGR valve mounting nuts to specification. See TORQUE SPECIFICATIONS . Connect EGR valve harness connector.

Fig 1: Removing/Installing EGR Valve (8.1L)
G00156248Courtesy of GENERAL MOTORS CORP.
