Combination Valve: Installation
WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2001 Pontiac Montana, 2001 Pontiac Aztek, 2001 Oldsmobile Silhouette, 2001 Oldsmobile Bravada, and 2001 GMC Sonoma. However, it is still accessible from the selected car via links, so may be relevant.
To install, reverse removal procedure. Bleed brake system. See MANUAL BLEEDING or PRESSURE BLEEDING under BLEEDING BRAKE SYSTEM. Center the brake warning light switch piston by applying moderate to heavy force on brake pedal.
NOTE:

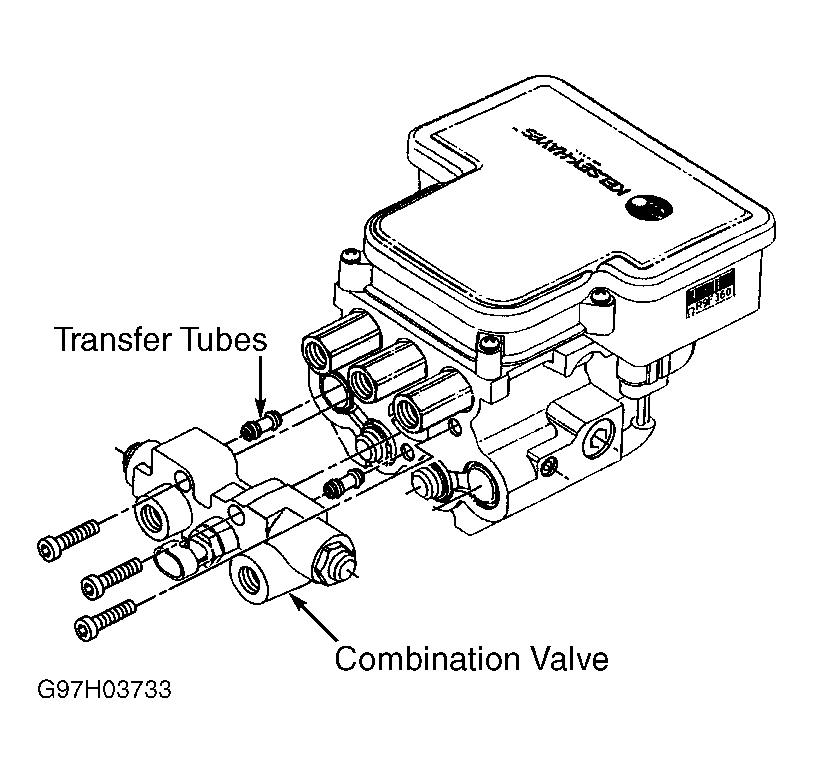

Install NEW transfer tubes with new combination valve. See Fig 1.
To install, reverse removal procedure. Bleed brake system. See MANUAL BLEEDING or PRESSURE BLEEDING under BLEEDING BRAKE SYSTEM. Center the brake warning light switch piston by applying moderate to heavy force on brake pedal.
