Ground Distribution Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

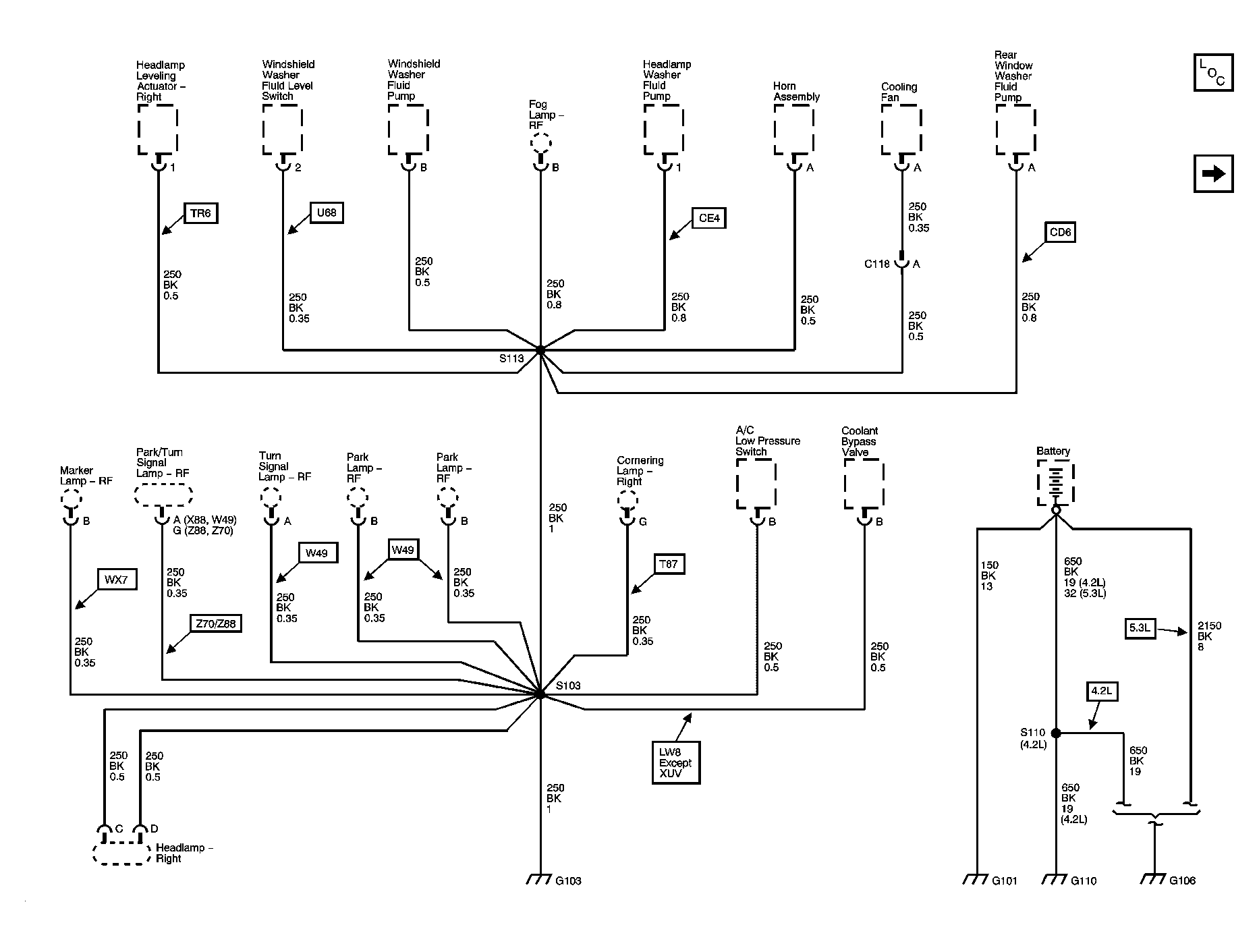

Fig 1: G101, G103, G106, and G110

GM1284656

Courtesy of GENERAL MOTORS CORP.

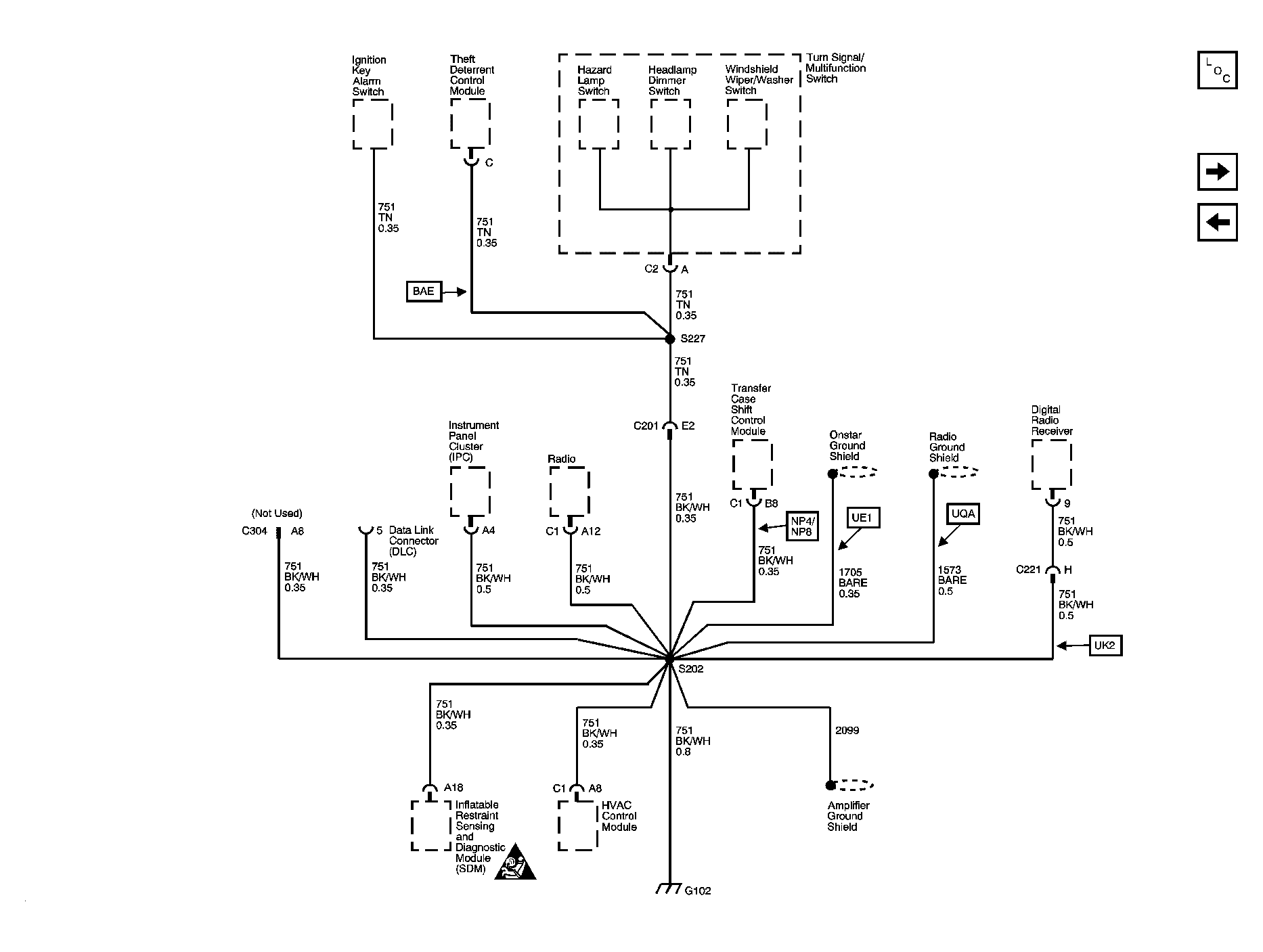

Fig 2: G102

GM1284657

Courtesy of GENERAL MOTORS CORP.

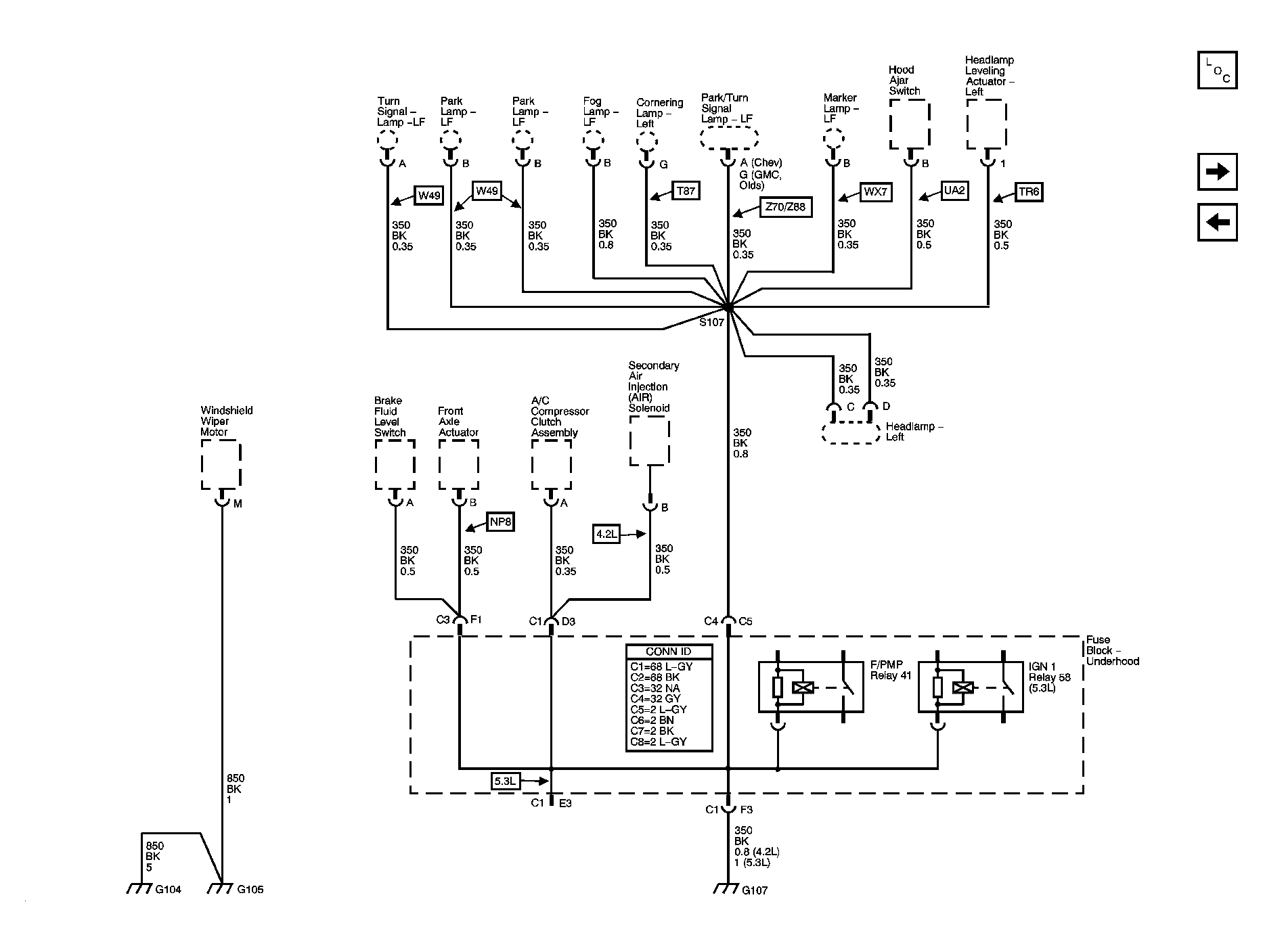

Fig 3: G104, G105, and G107

GM1284658

Courtesy of GENERAL MOTORS CORP.

Fig 4: G108

GM1284659

Courtesy of GENERAL MOTORS CORP.

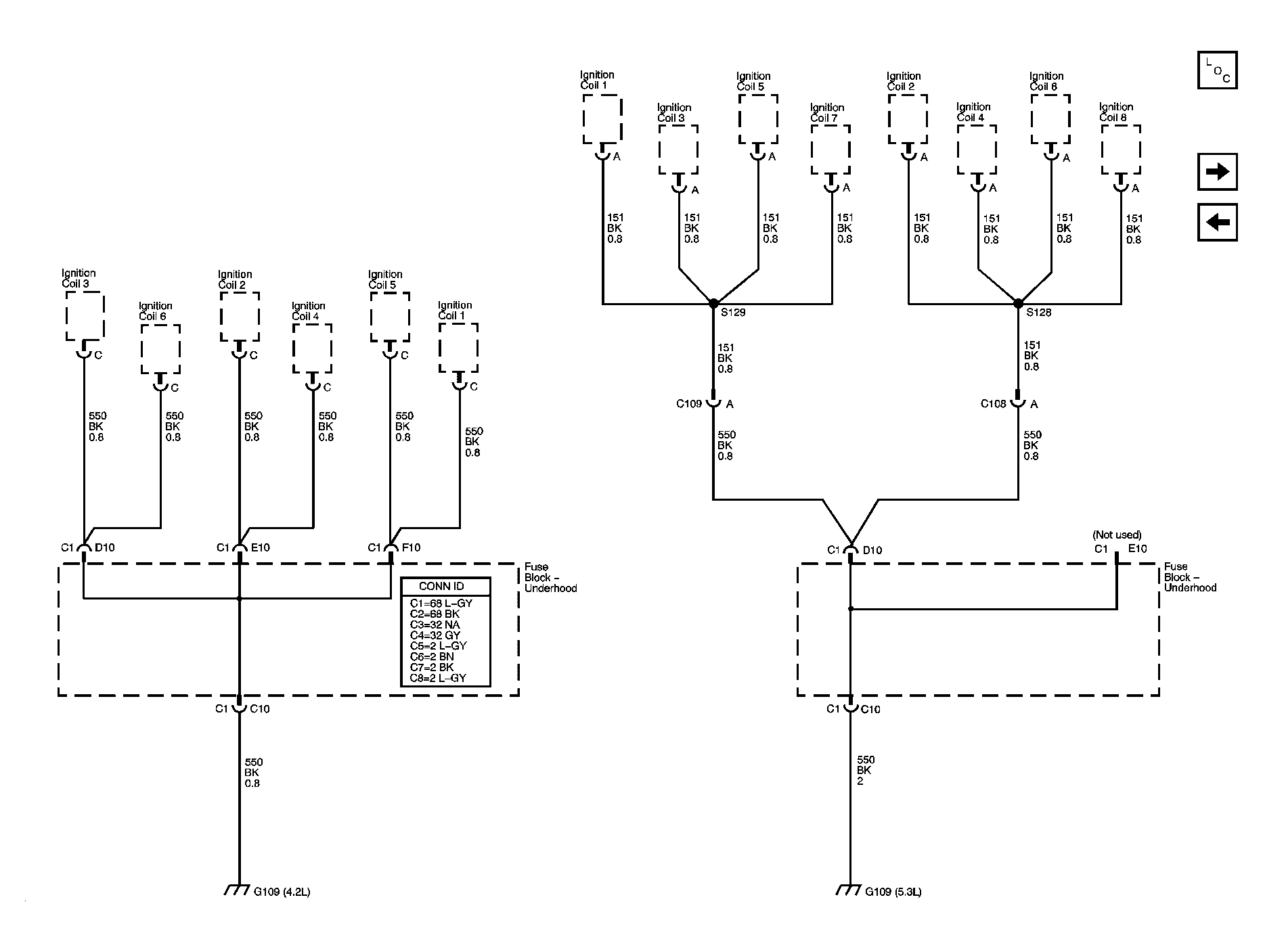

Fig 5: G109

GM1284660

Courtesy of GENERAL MOTORS CORP.

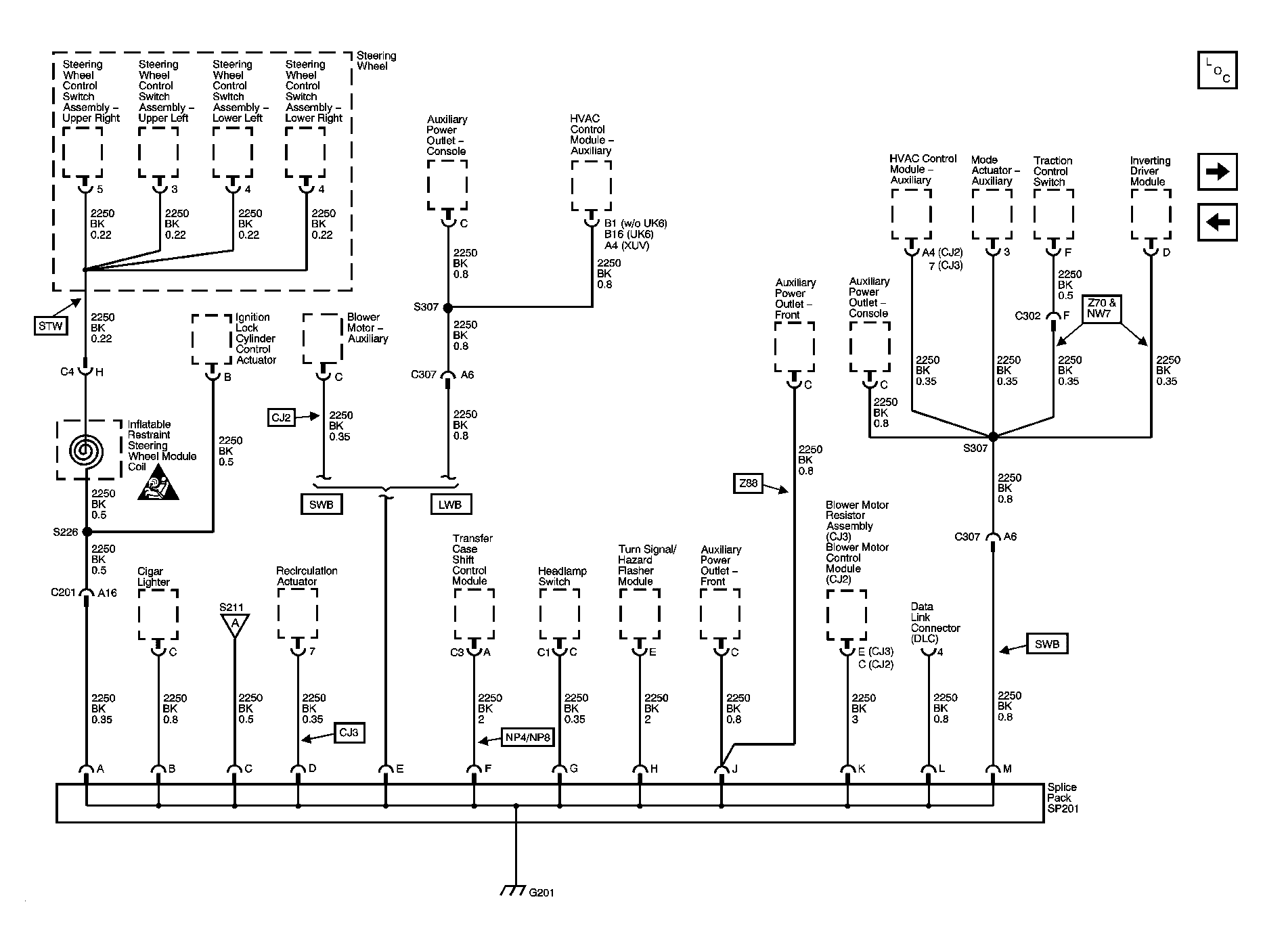

Fig 6: G201 - 1 of 2

GM1284661

Courtesy of GENERAL MOTORS CORP.

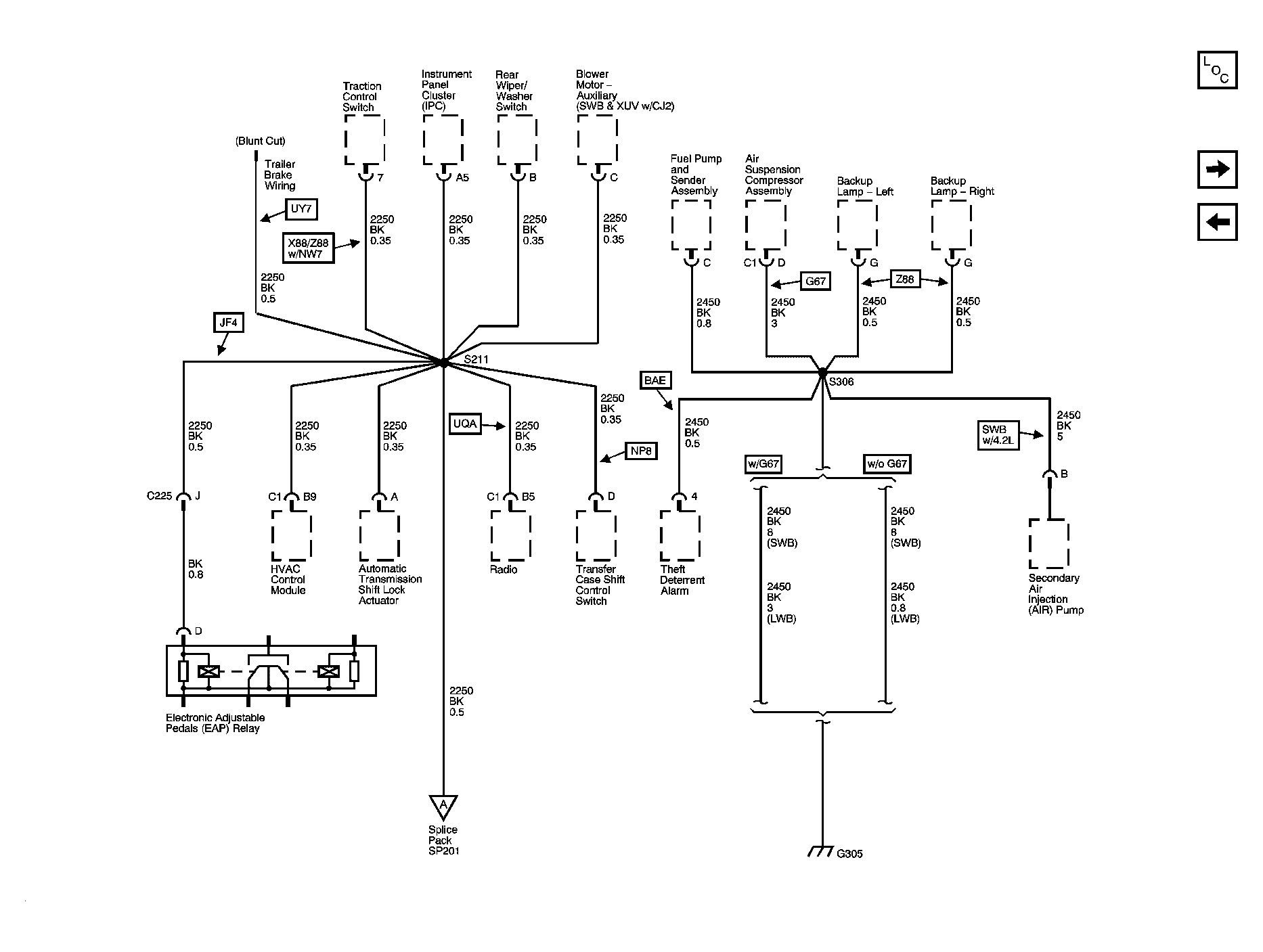

Fig 7: G201 - 2 of 2, and G305

GM1284662

Courtesy of GENERAL MOTORS CORP.

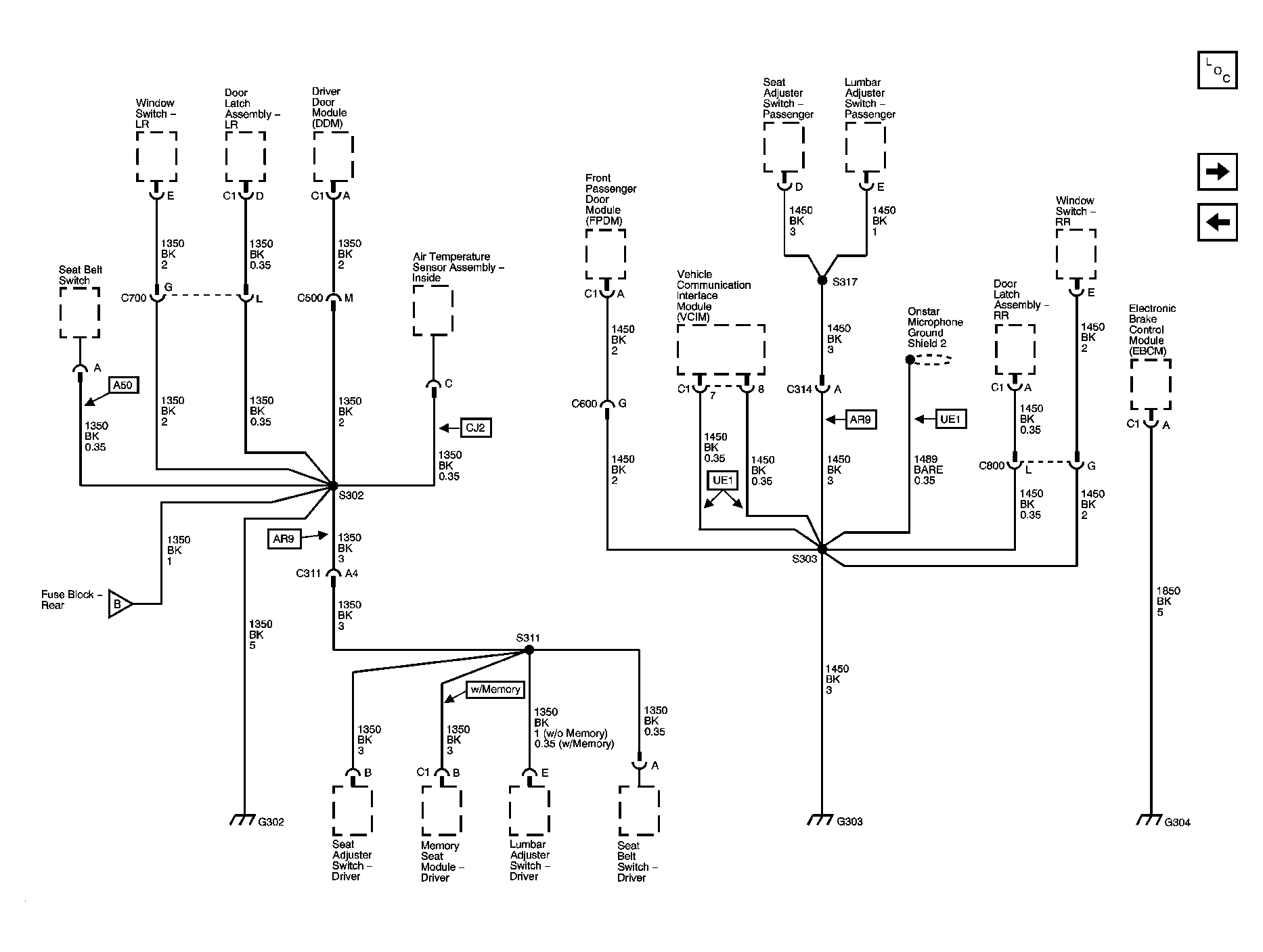

Fig 8: G302 - 1 of 2, G303, and G304

GM1284663

Courtesy of GENERAL MOTORS CORP.

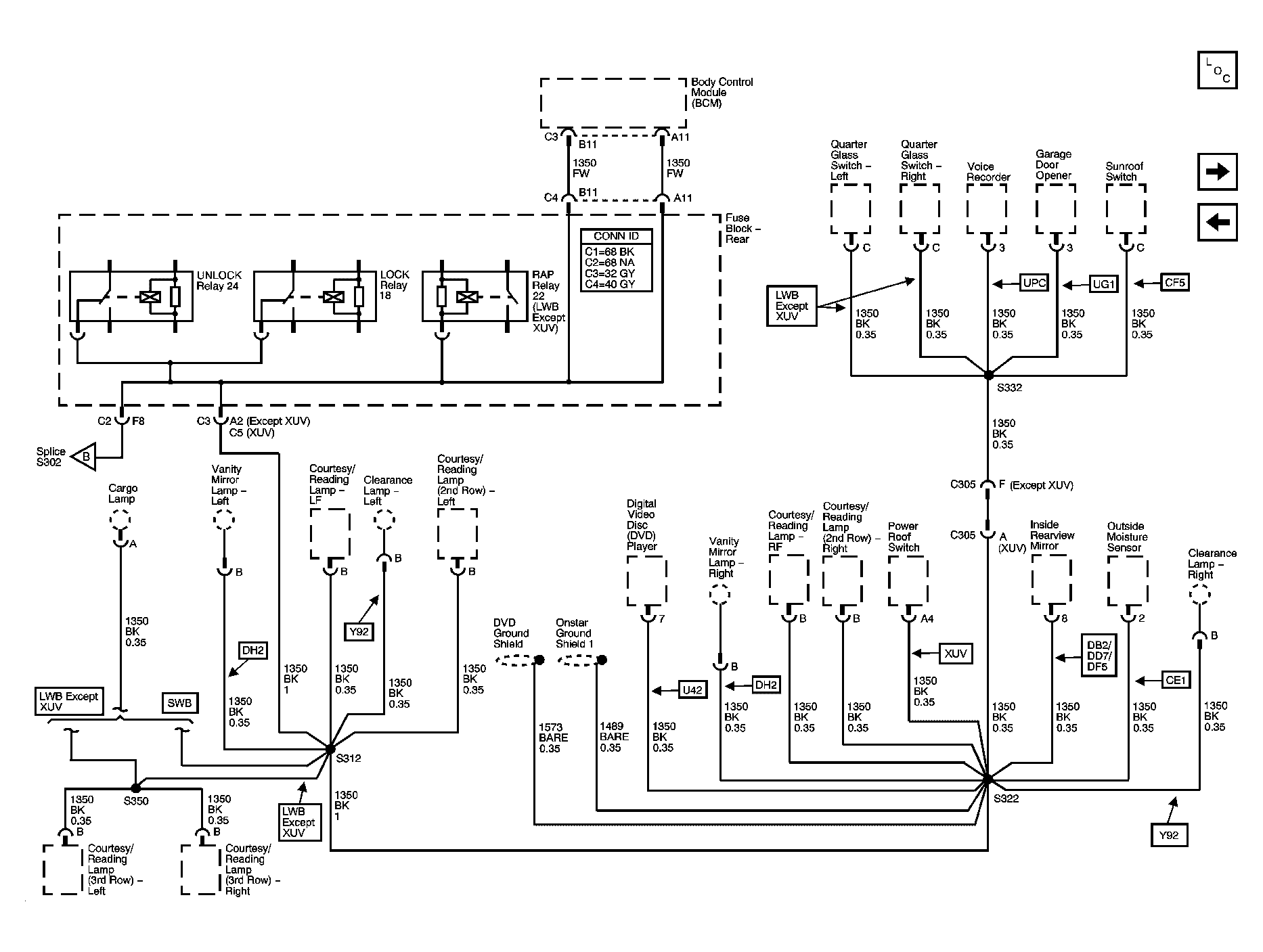

Fig 9: G302 - 2 of 2

GM1284664

Courtesy of GENERAL MOTORS CORP.

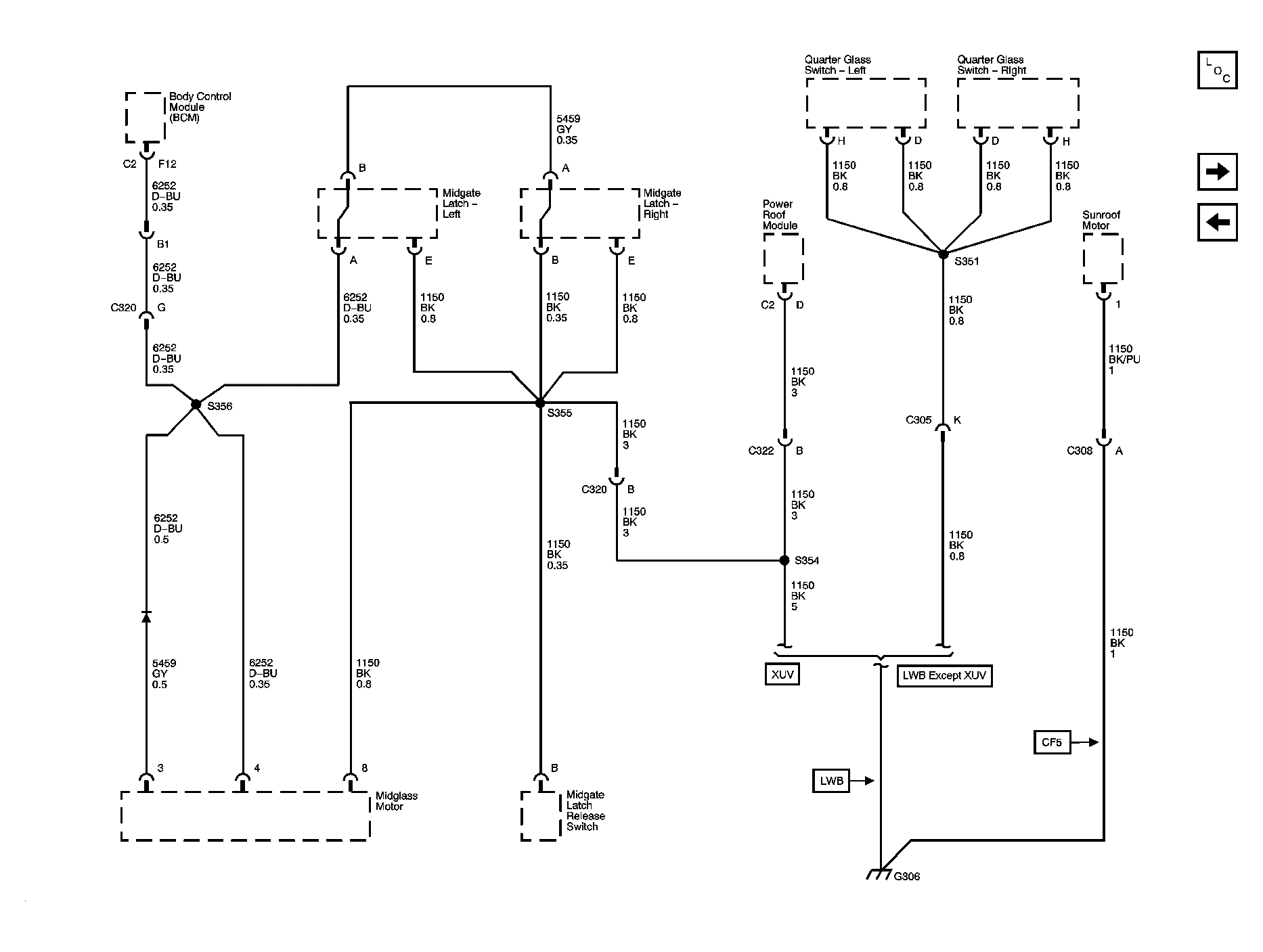

Fig 10: G306

GM1284666

Courtesy of GENERAL MOTORS CORP.

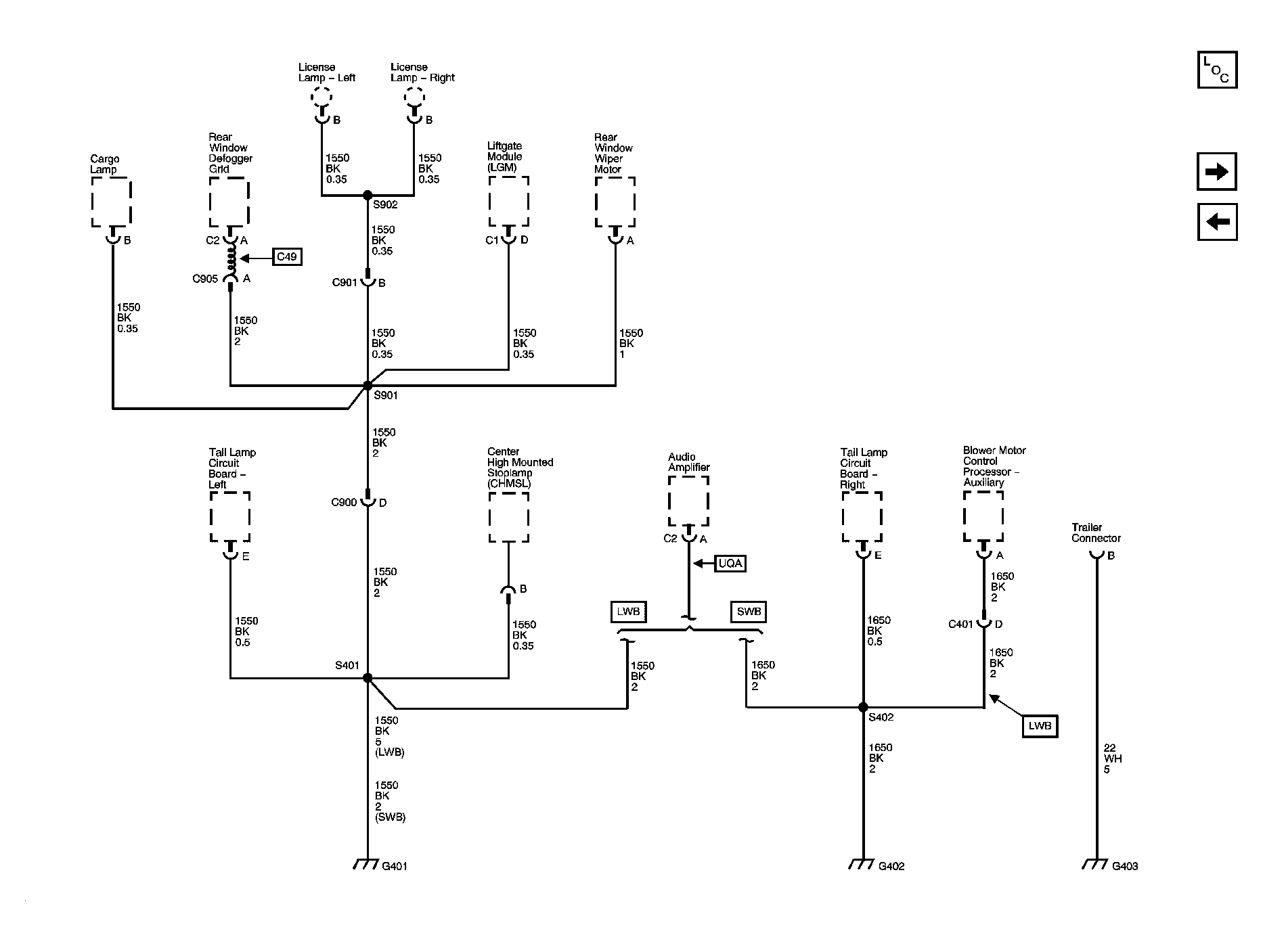

Fig 11: G401, G402, and G403 - Except XUV

GM1284668

Courtesy of GENERAL MOTORS CORP.

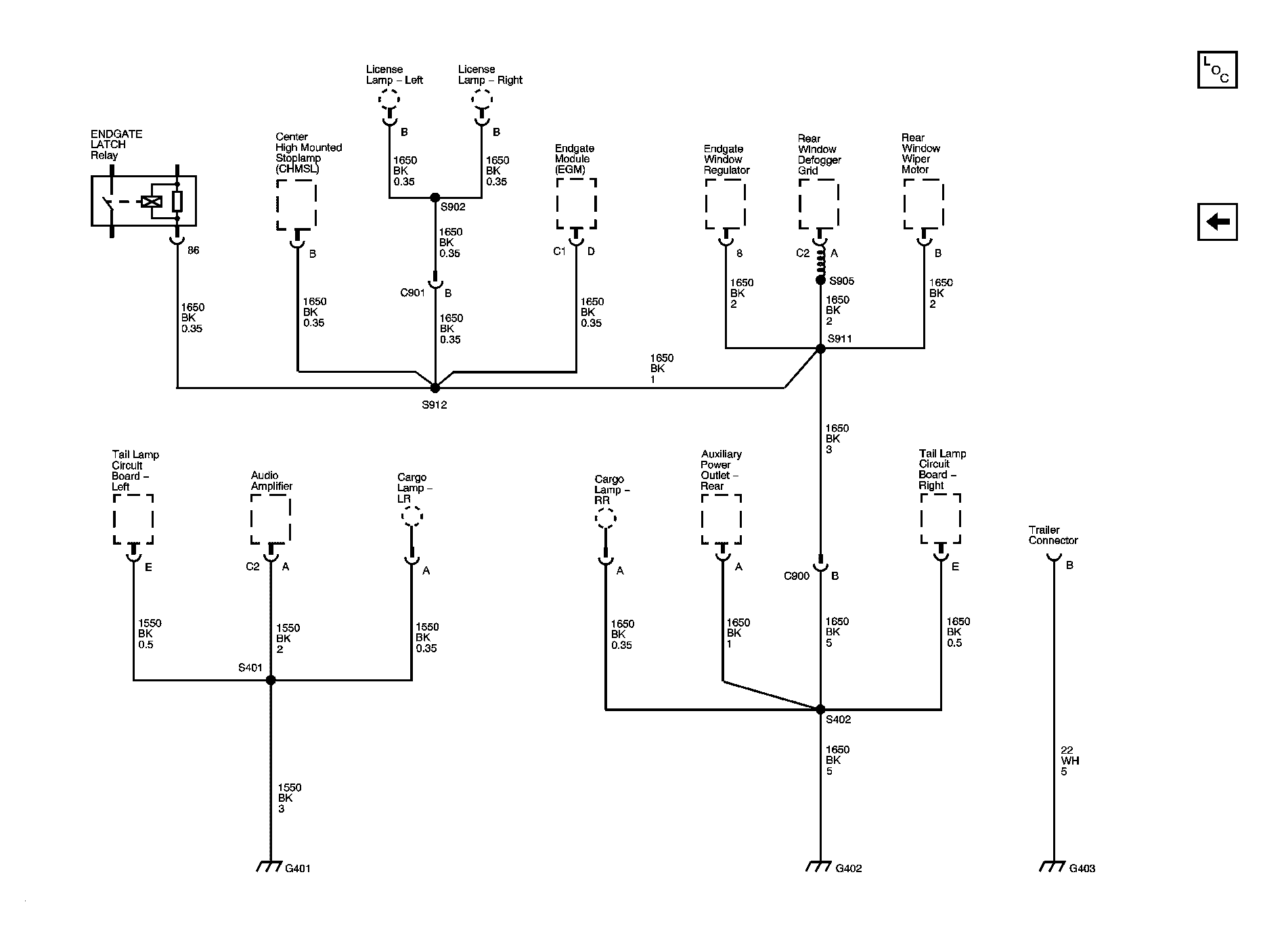

Fig 12: G401, G402, and G403 - XUV

GM1284670

Courtesy of GENERAL MOTORS CORP.
