Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
    Fig 1: Locating Junction Block Bracket Retaining Bolts
    GM882144Courtesy of GENERAL MOTORS CORP.
  1. Position the junction block bracket and install the bolts (1).

    Tighten:  Tighten the junction block bracket bolts to 6 N.m (53 lb in).

  2. Align the wiring harnesses and install the fuse relay center.

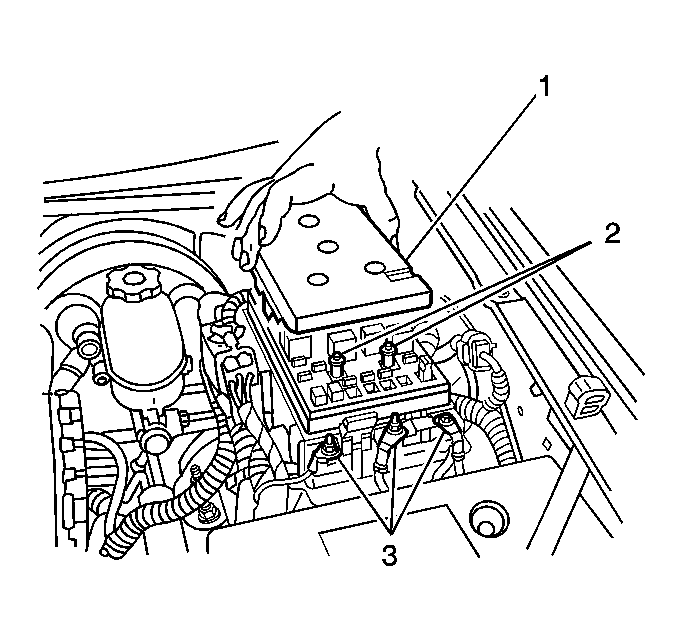

    3. Fig 2: Locating Harness End Bolts
    GM882142Courtesy of GENERAL MOTORS CORP.
  3. Install the fuse relay center bolts (3).

    Tighten:  Tighten the relay center bolts to 6 N.m (53 lb in).

  4. Install the harness end bolts (2).
  5. Install the fuse relay center cover (1) over the relay center bolts. Press downward to engage the tabs.
  6. Install the junction block cover. Press downward to engage the tabs.
