Driver Seat Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

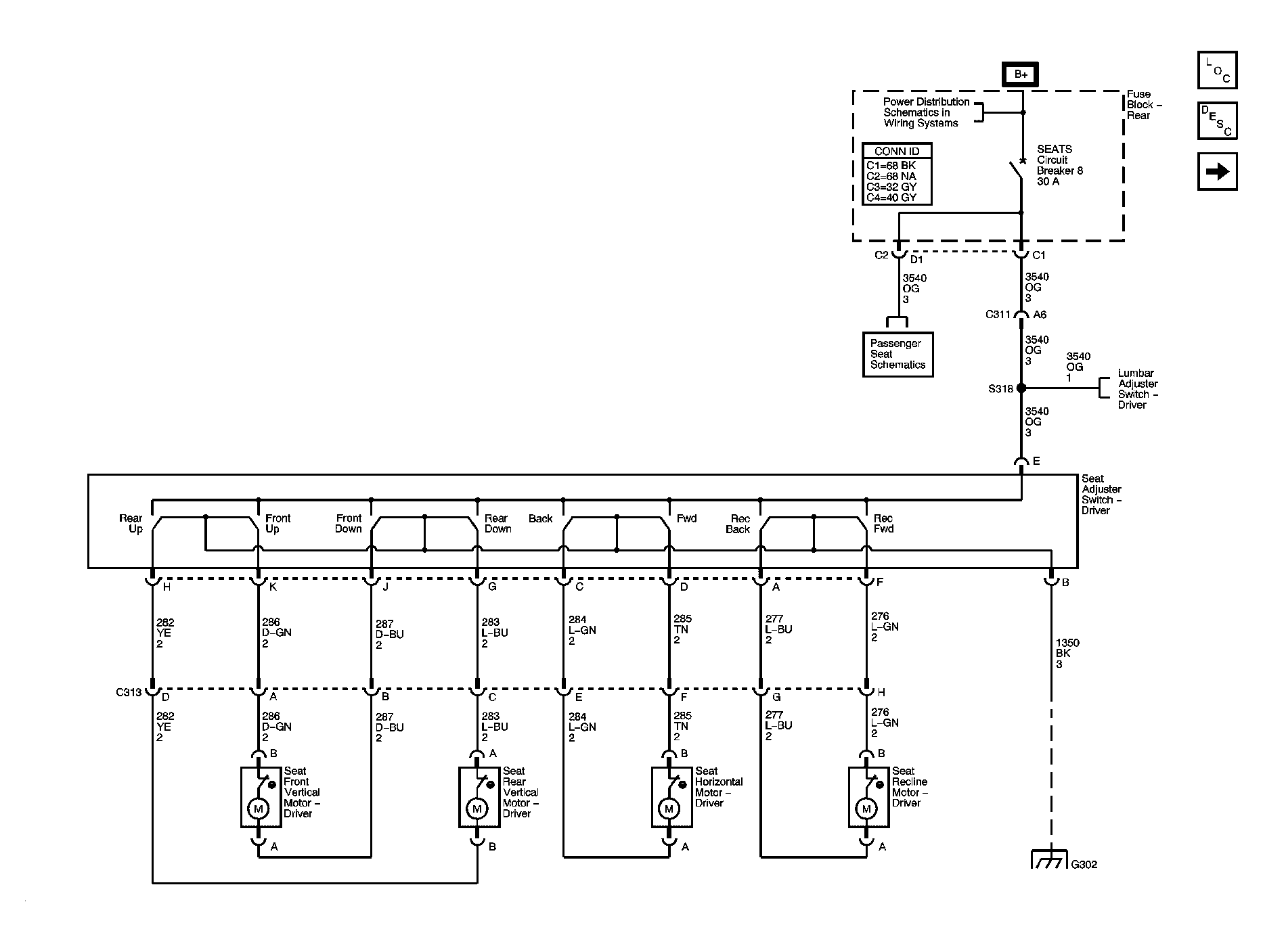

Fig 1: Power Seat Controls w/o Memory

GM1337282

Courtesy of GENERAL MOTORS CORP.

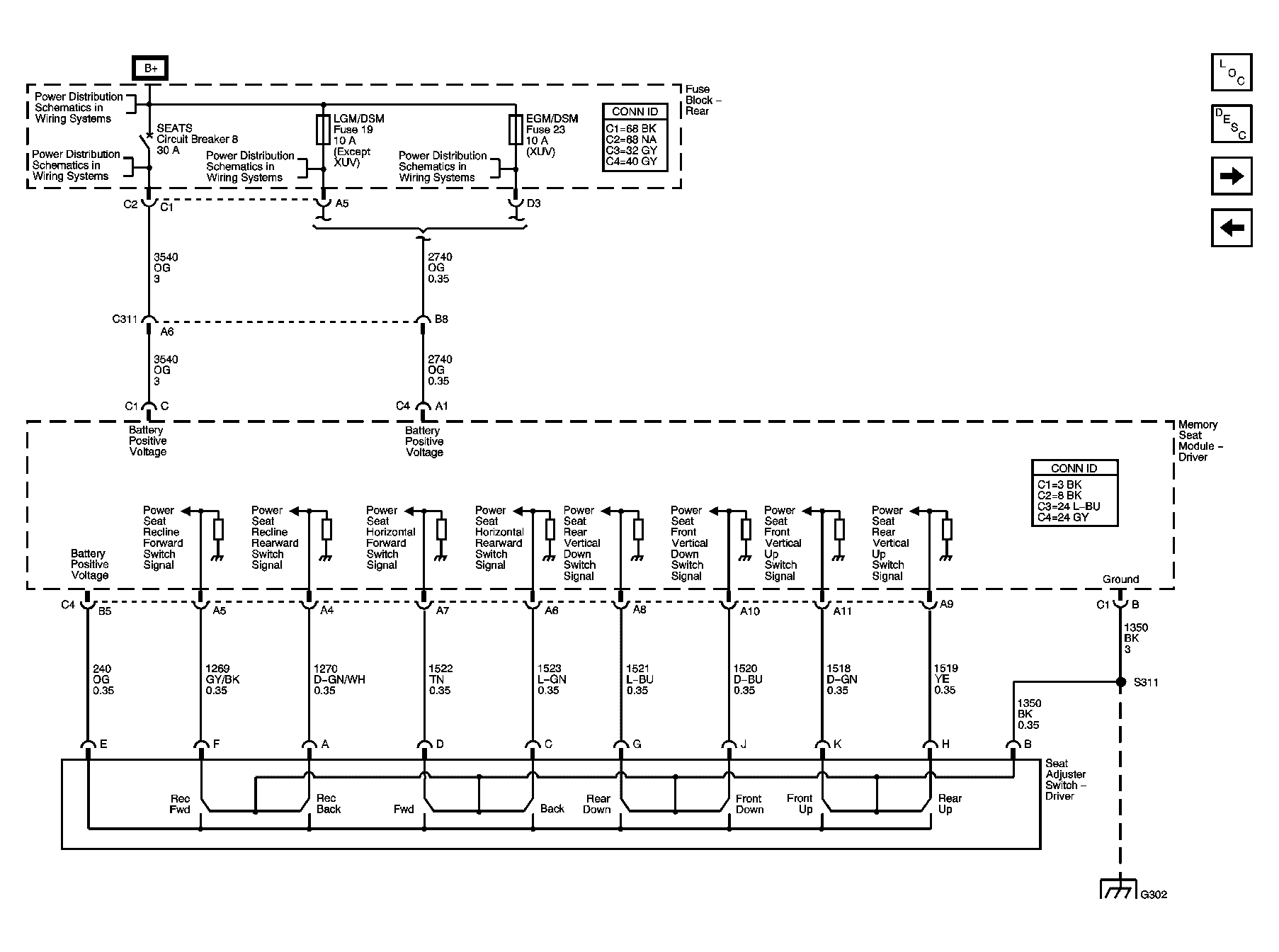

Fig 2: Power Seat Controls w/Memory - Power, Ground, and Switch Controls

GM1337284

Courtesy of GENERAL MOTORS CORP.

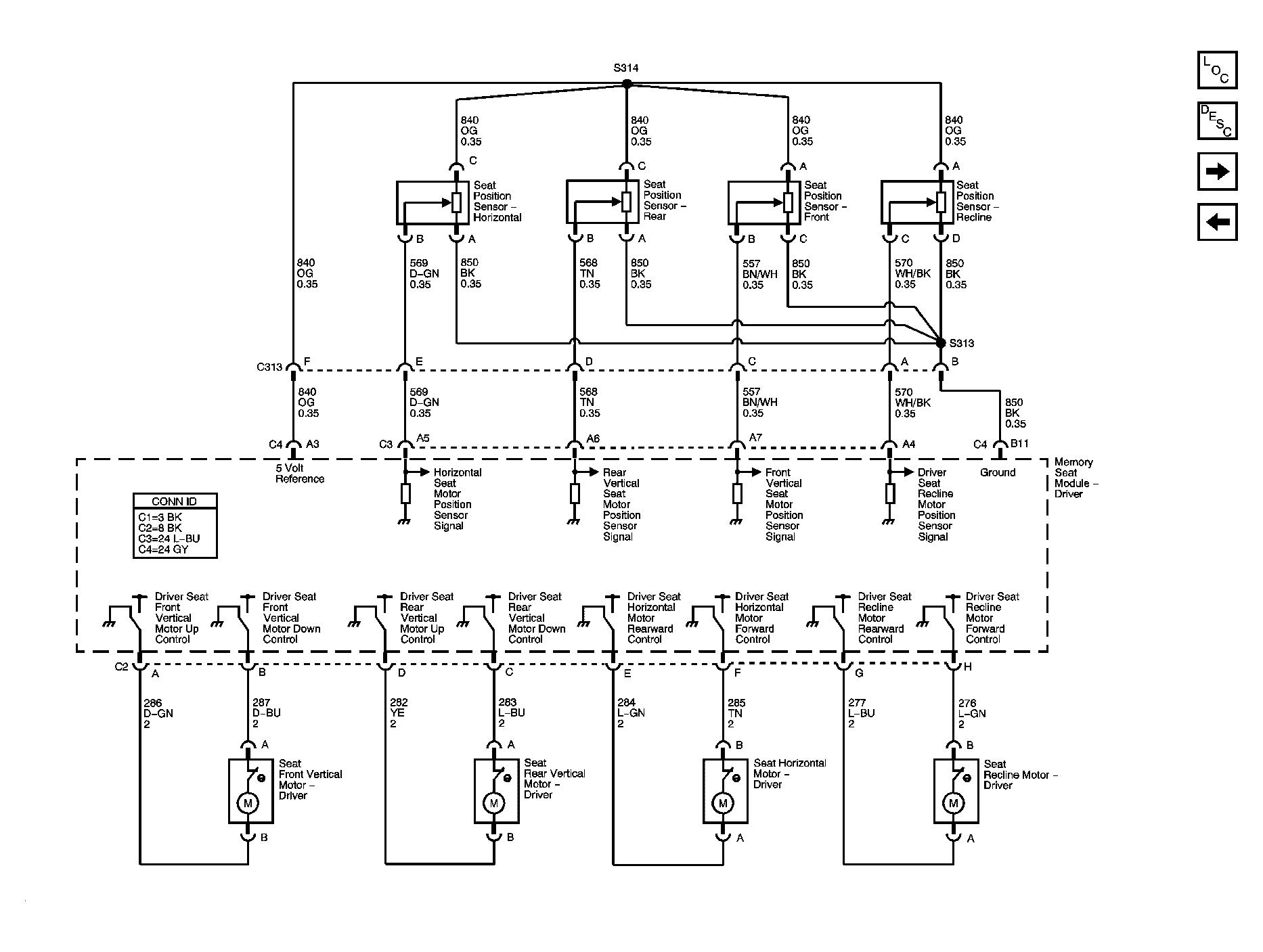

Fig 3: Power Seat Controls w/Memory - Motors and Position Sensors

GM1337286

Courtesy of GENERAL MOTORS CORP.

Fig 4: Lumbar Controls w/o Memory

GM1337288

Courtesy of GENERAL MOTORS CORP.

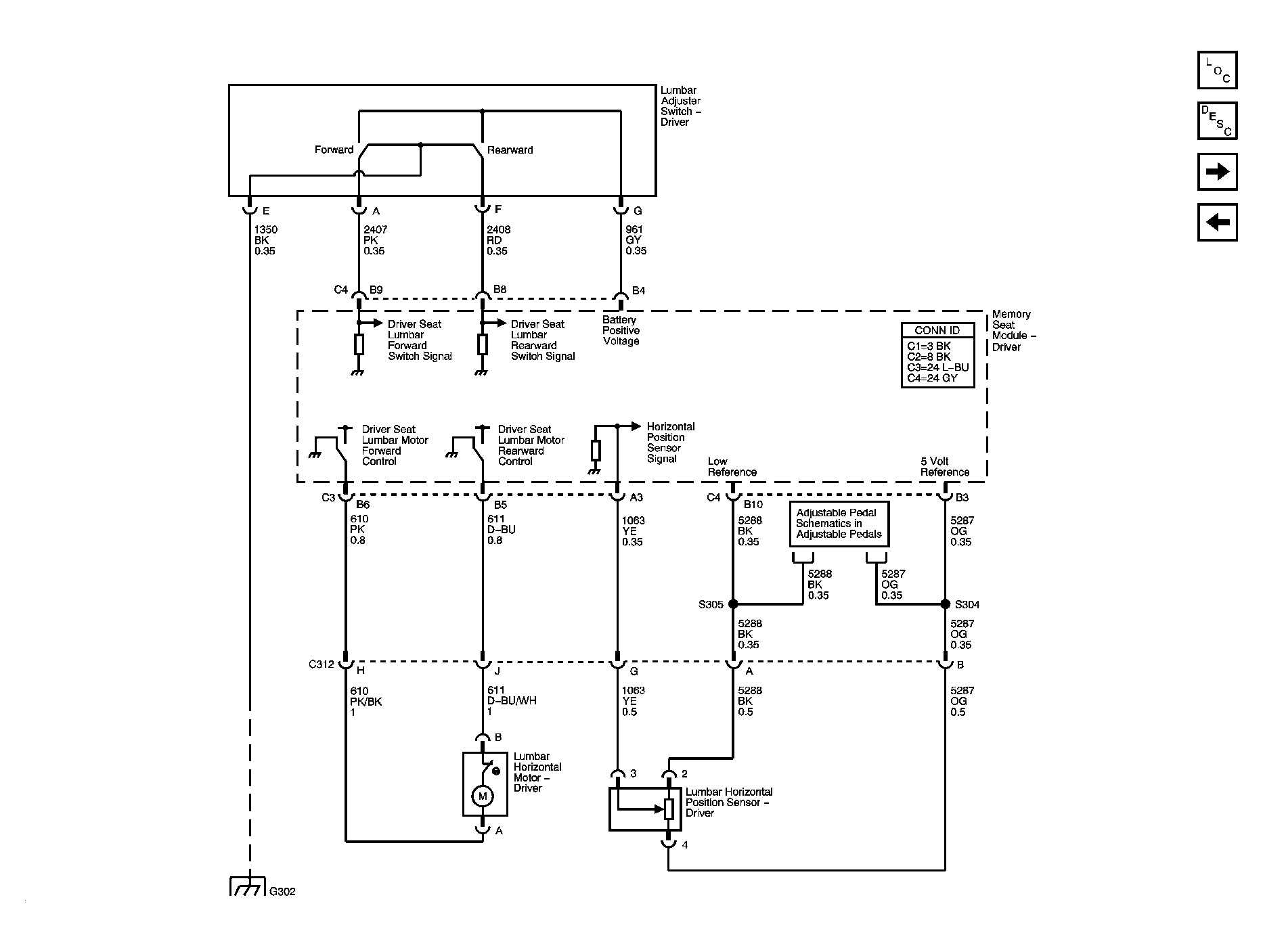

Fig 5: Lumbar Controls w/Memory

GM1337290

Courtesy of GENERAL MOTORS CORP.

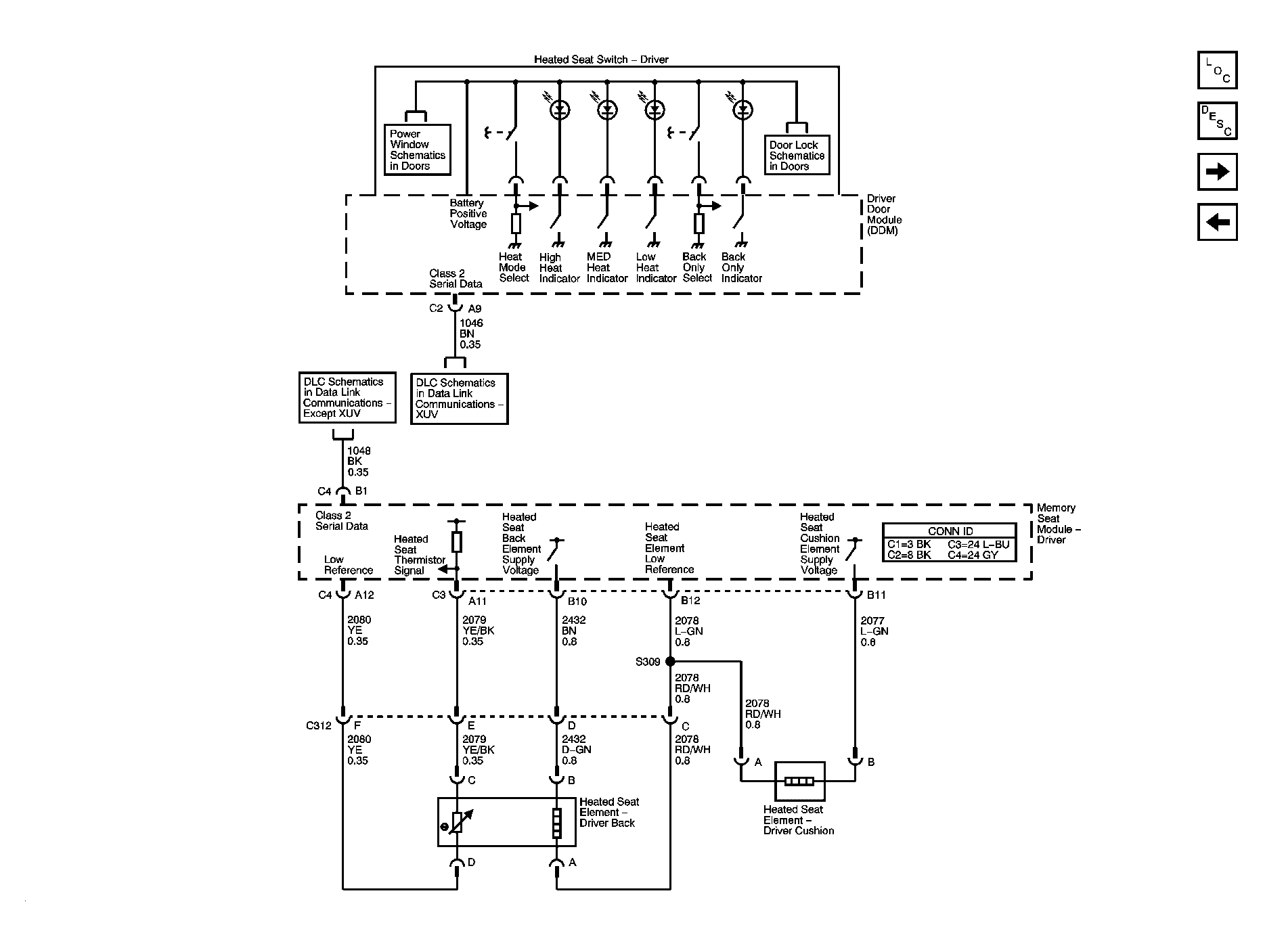

Fig 6: Heat Controls

GM1337291

Courtesy of GENERAL MOTORS CORP.

Fig 7: Memory Controls

GM1337293

Courtesy of GENERAL MOTORS CORP.
