Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

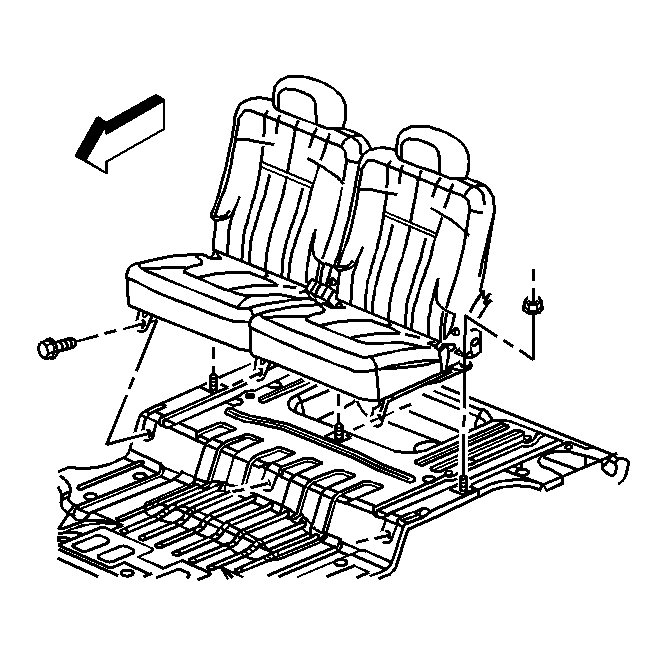

    Fig 1: Removing/Installing Seat - Rear No. 2
    GM828139Courtesy of GENERAL MOTORS CORP.
  1. Install the seat assembly onto the floor studs in the vehicle.
  2. Install the two seat belt anchors onto the floor studs.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the three seat mounting nuts.

    Tighten:  Tighten the rear seat mounting nuts to 45 N.m (33 lb ft).

  4. Install the three seat mounting bolts.

    Tighten:  Tighten the rear seat mounting bolts to 45 N.m (33 lb ft).
