Power Window Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

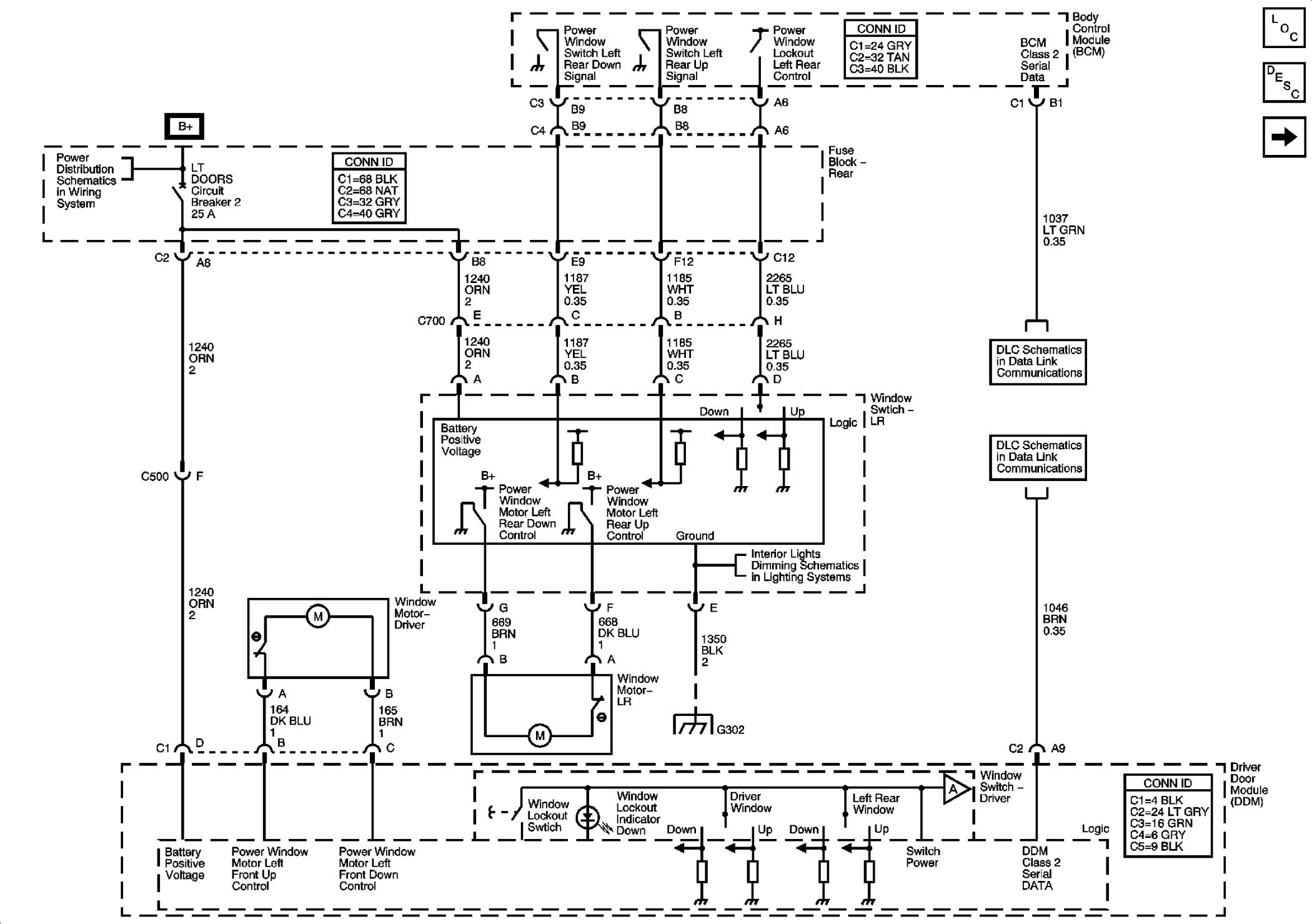

Fig 1: Power Window Schematics Left
GM743743Courtesy of GENERAL MOTORS CORP.

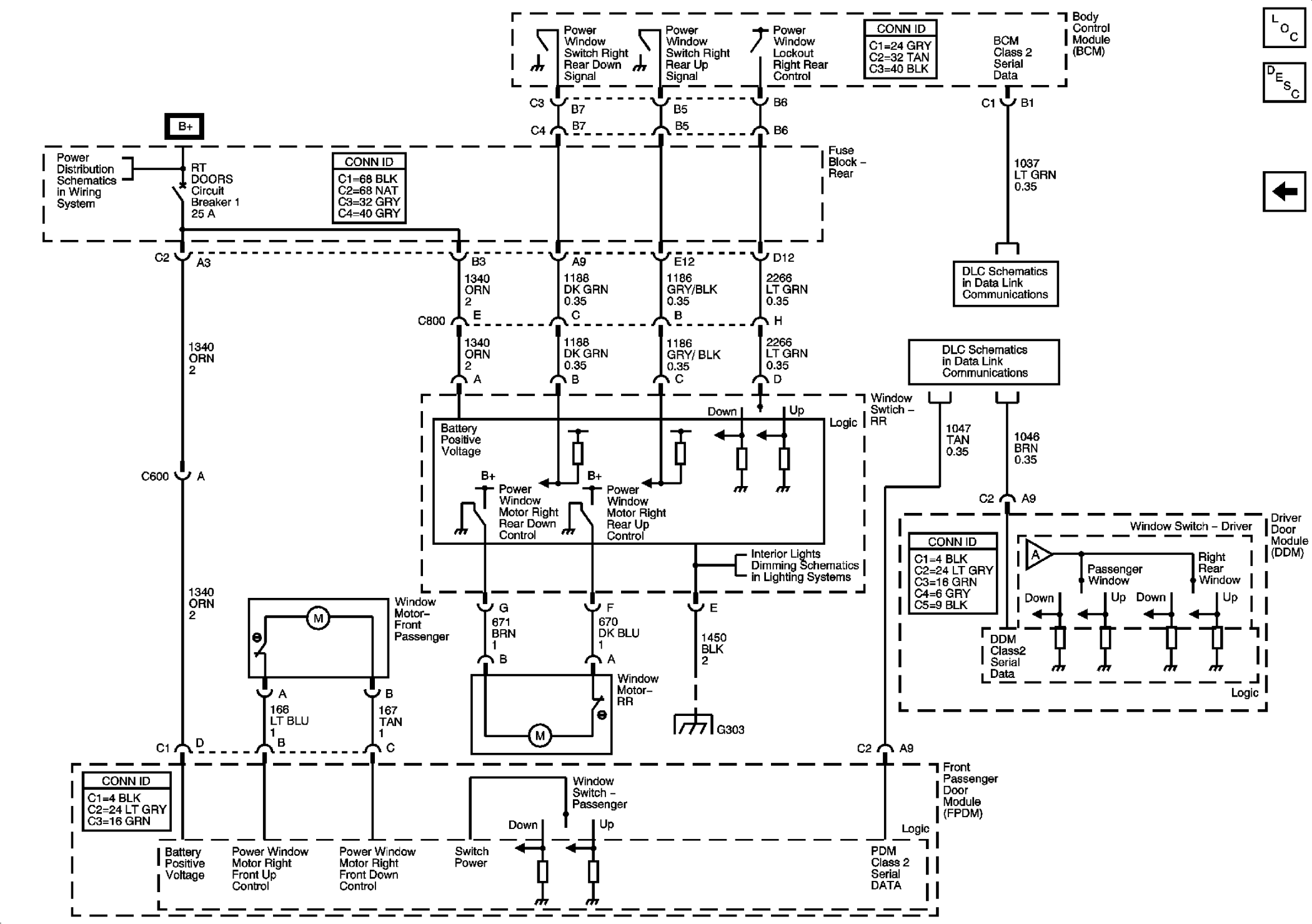

Fig 2: Power Window Schematics Right
GM890697Courtesy of GENERAL MOTORS CORP.
