Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

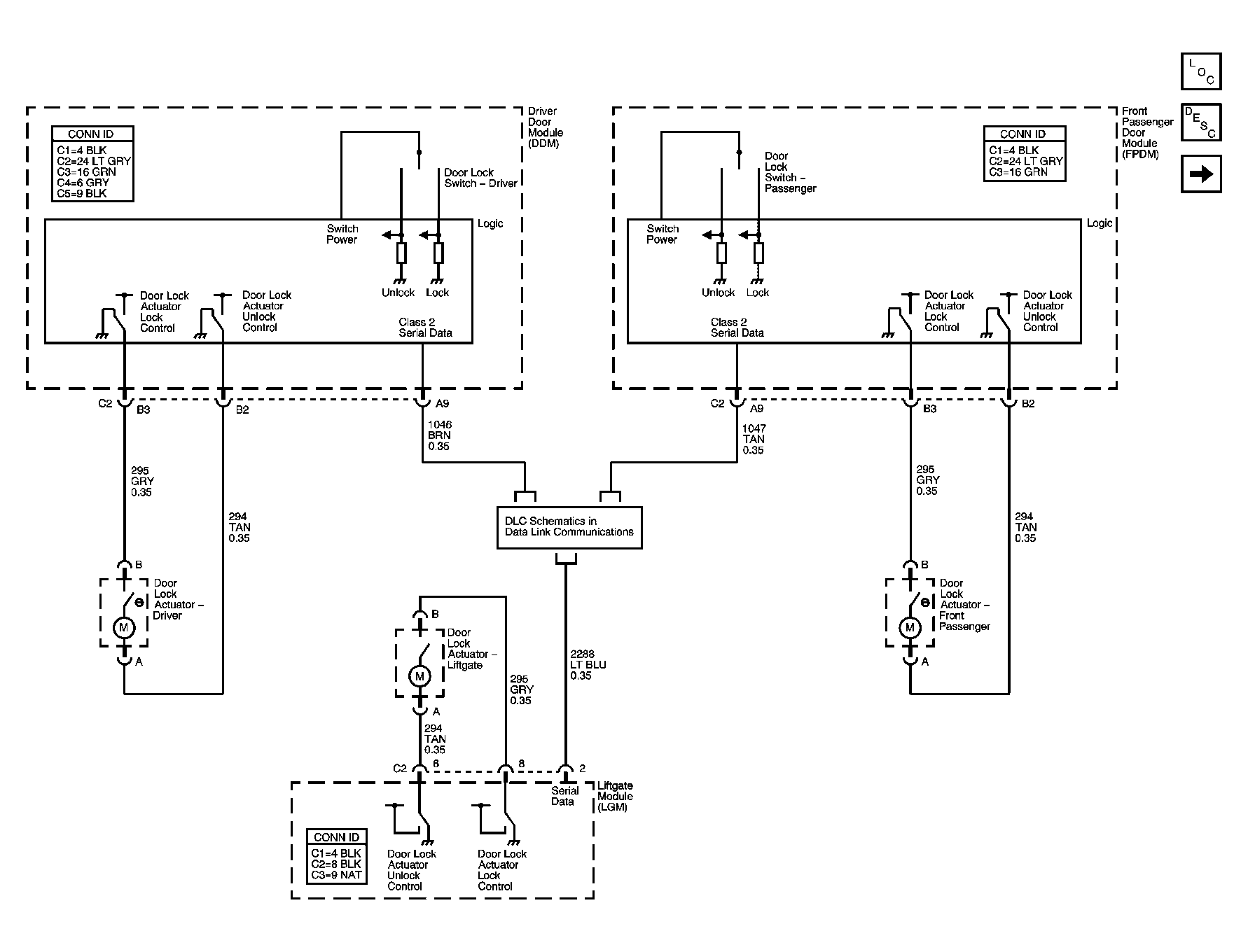

Fig 1: Door Lock/Indicator Schematics Front and Liftgate

Courtesy of GENERAL MOTORS CORP.

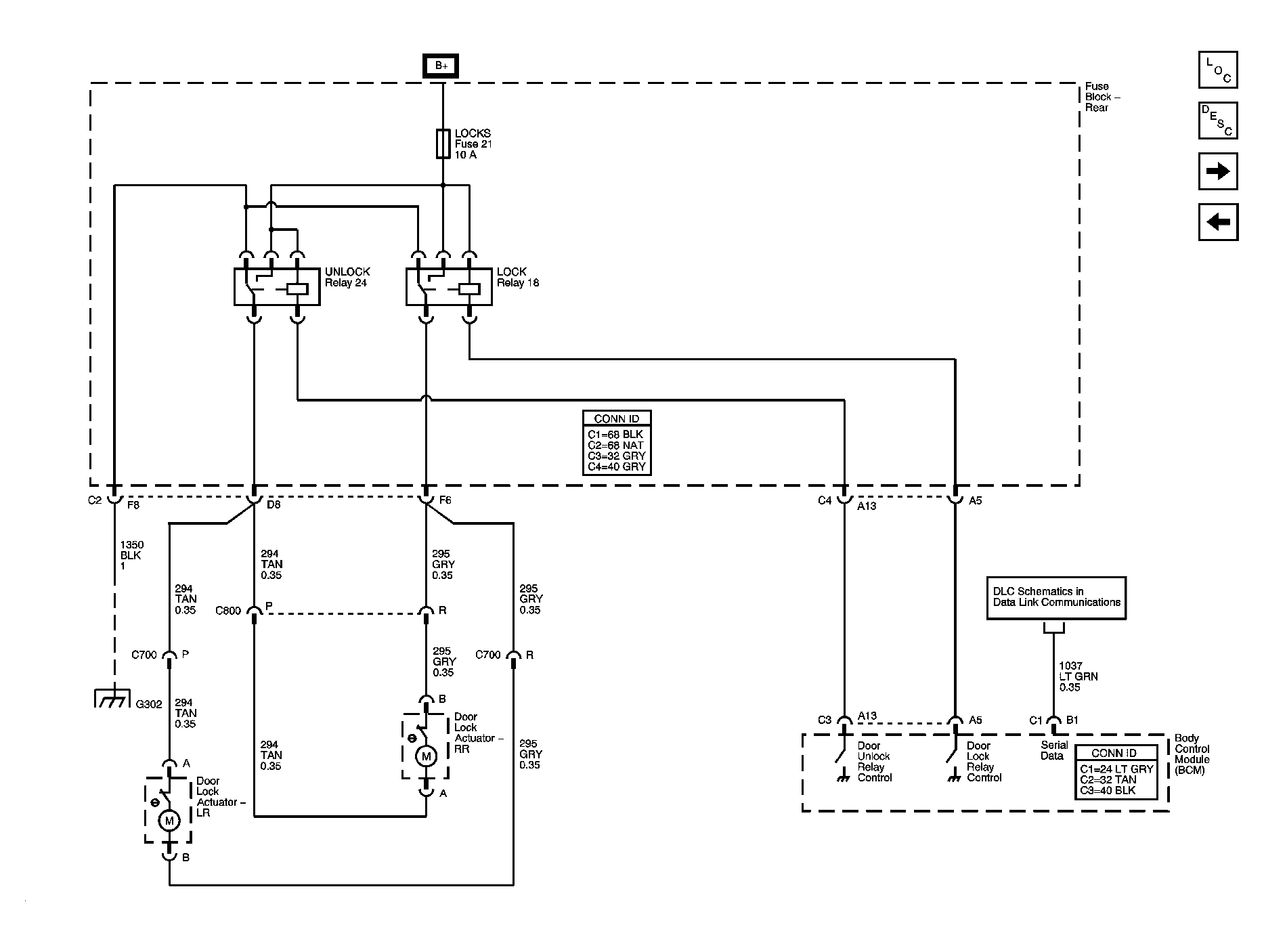

Fig 2: Door Lock/Indicator Schematics Rear

Courtesy of GENERAL MOTORS CORP.

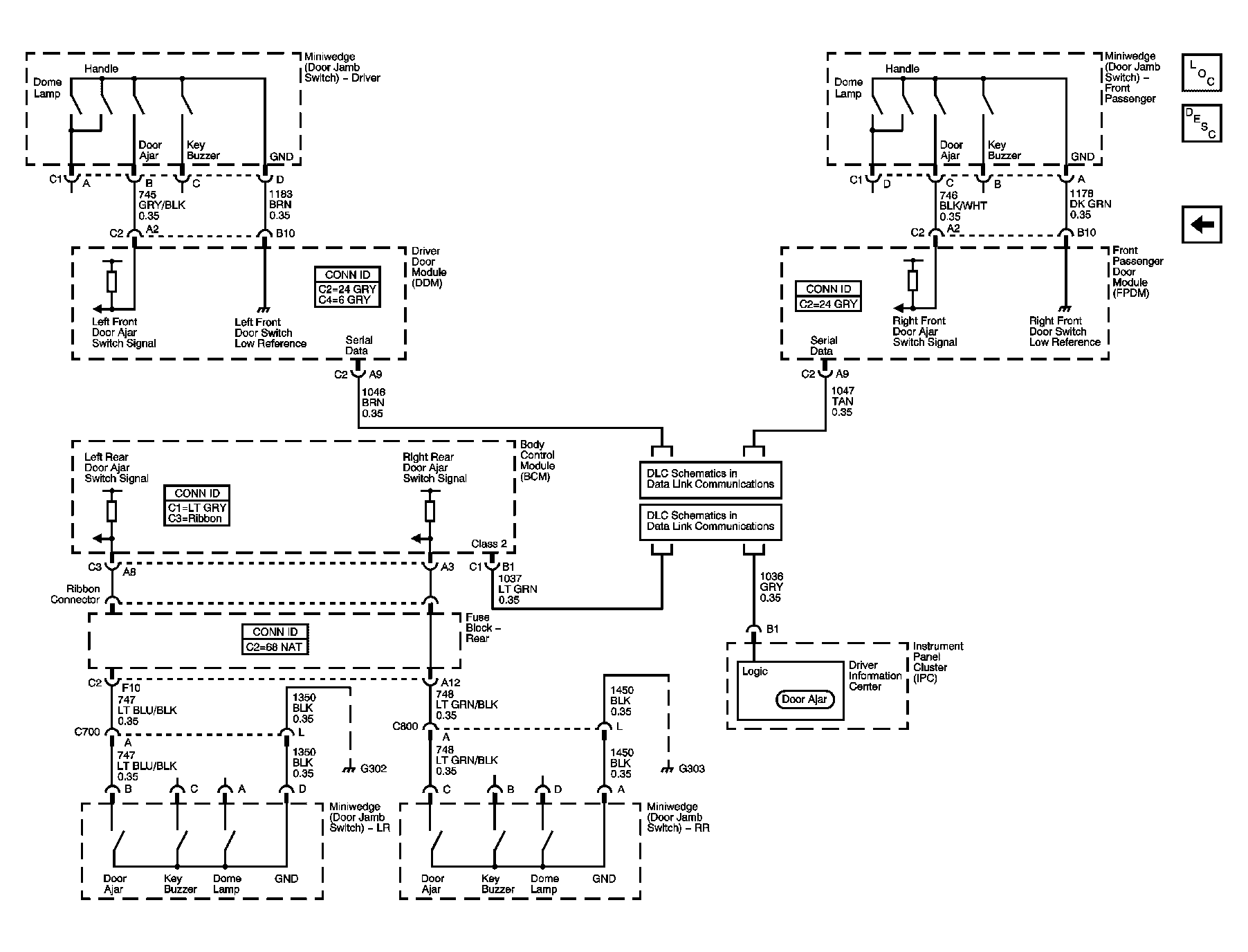

Fig 3: Door Ajar Warning Schematics

Courtesy of GENERAL MOTORS CORP.
