Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the door speaker. Refer to Speaker Replacement - Front Door in Entertainment.
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
    5. CAUTION: Disconnect the power window switch when working inside the driver's door. When operated, the Express Down Feature allows the door window to drop very quickly, without stopping, which could cause personal injury.

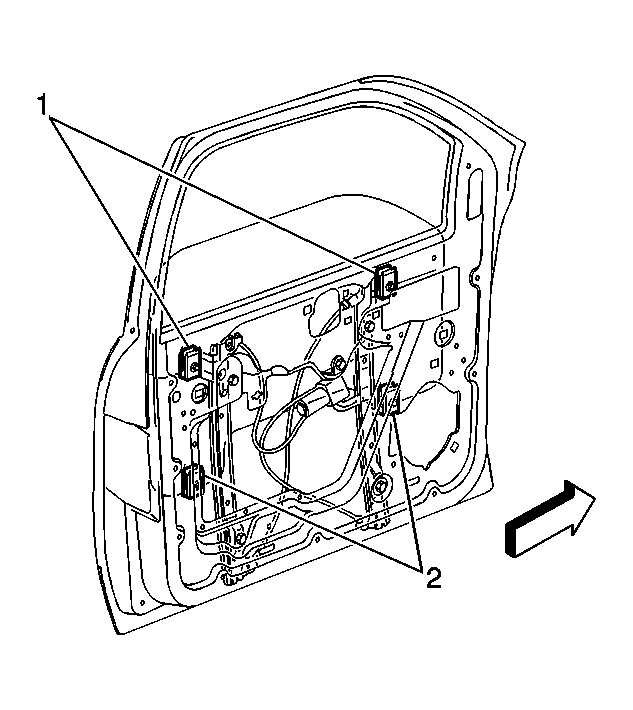

    Fig 1: Regulator In Remove/Load Position And Window Fully Secure Position (Front Door)
    GM723036Courtesy of GENERAL MOTORS CORP.
  5. Adjust the window to the remove/load position (2).
  6. Mark the location of the window at the regulator clamps.
  7. Loosen the 2 regulator clamp bolts.
    8. CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
  8. In order to remove the window out of the frame, carefully grasp and tilt the window as you guide the window up and forward.
  9. Remove the window from the door.
