Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory switch panel. Refer to Switch Replacement - Door Lock and Side Window - Driver .

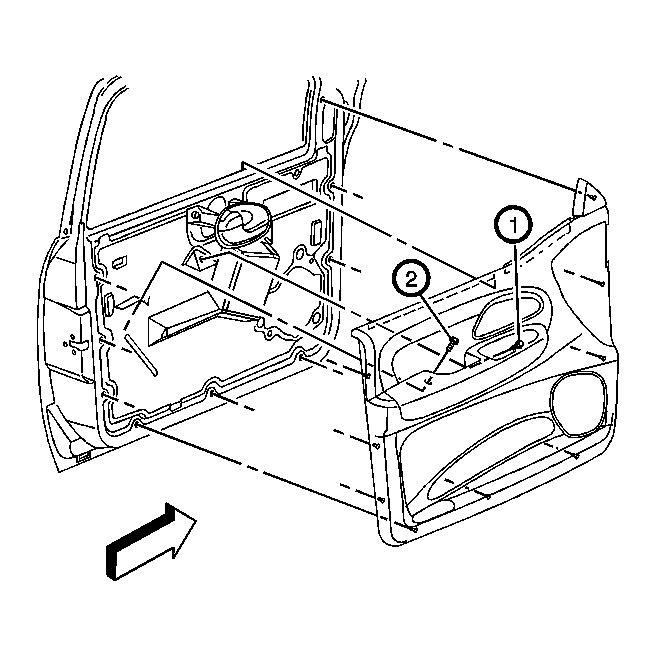

    2. Fig 1: Trim Panel And Retaining Bolts Removed
    GM683551Courtesy of GENERAL MOTORS CORP.
  2. Remove the 2 trim panel retaining bolts (1 and 2).
  3. Use the J 36796  in order to release the 9 trim panel fasteners from the door.
  4. Remove the trim panel from the door.
  5. Remove the inside door handle bezel. Refer to Door Handle Bezel Replacement .
  6. Remove the outside rear view mirror (ORVM) switch, if equipped. Refer to Power Mirror Switch Replacement .
