Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power window switch. Refer to Power Window Switch Replacement - Rear Door (Chevrolet) Power Window Switch Replacement - Rear Door (GMC/Oldsmobile) .
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the inner window belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  4. Remove the outer window belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  5. Remove the upper sealing strip. Refer to Sealing Strip Replacement - Rear Door Upper .
  6. Remove the inside release handle. Refer to Door Handle Replacement - Inside .
  7. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  8. Remove the speaker. Refer to Speaker Replacement - Rear Door in Entertainment.
  9. Remove the window. Refer to Window Replacement - Rear Door (TrailBlazer, Envoy, Bravada) Window Replacement - Rear Door (TrailBlazer EXT, Envoy XL) .
  10. Remove the stationary window and run channel assembly. Refer to Window Weatherstrip Run Channel Assembly Replacement - Rear (TrailBlazer, Envoy, Bravada) Window Weatherstrip Run Channel Assembly Replacement - Rear (TrailBlazer EXT, Envoy XL) .
  11. Remove the window regulator. Refer to Window Regulator Replacement - Rear Door (TrailBlazer, Envoy, Bravada) Window Regulator Replacement - Rear Door (TrailBlazer EXT, Envoy XL) .
  12. Remove the door latch assembly. Refer to Latch Replacement - Rear Door .
  13. Remove the outside door handle. Refer to Door Handle Replacement - Rear Outside (TrailBlazer, Envoy, Bravada) Door Handle Replacement - Rear Outside (TrailBlazer EXT, Envoy XL) .
  14. Remove the check link. Refer to Door Check Link Replacement .
  15. Remove the wire harness from the door. Refer to Wiring Harness Replacement - Rear Door .

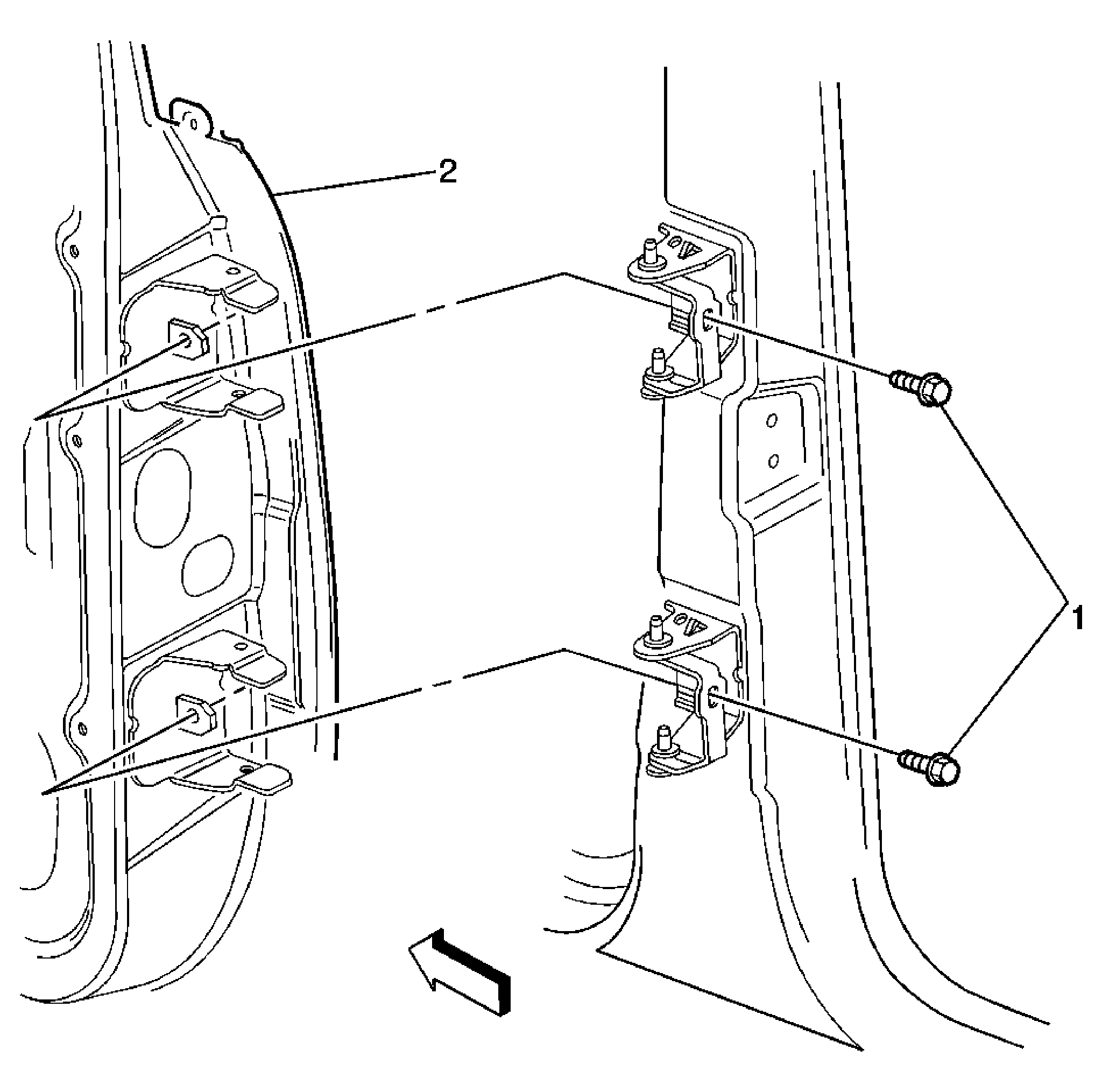

    16. Fig 1: Identifying Door To Hinge Plate Bolts
    GM723025Courtesy of GENERAL MOTORS CORP.
  16. Remove the bolts that retain the door to the hinge plates.
  17. Remove the door from the vehicle with an assistant.
