Water Pump Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump pulley bolts.
  2. Remove the water pump pulley.

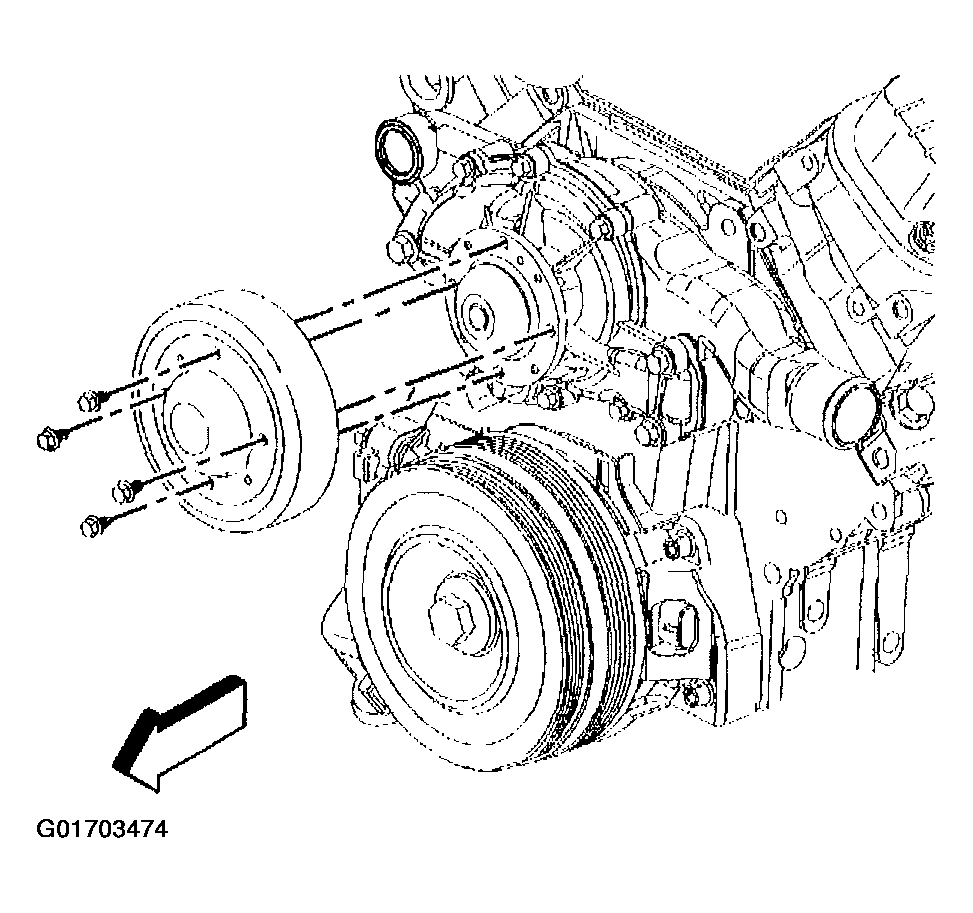

    Fig 1: Water Pump Pulley & Bolts
    G01703474Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump bolts.
  4. Remove the water pump.
  5. Remove the water pump gasket.

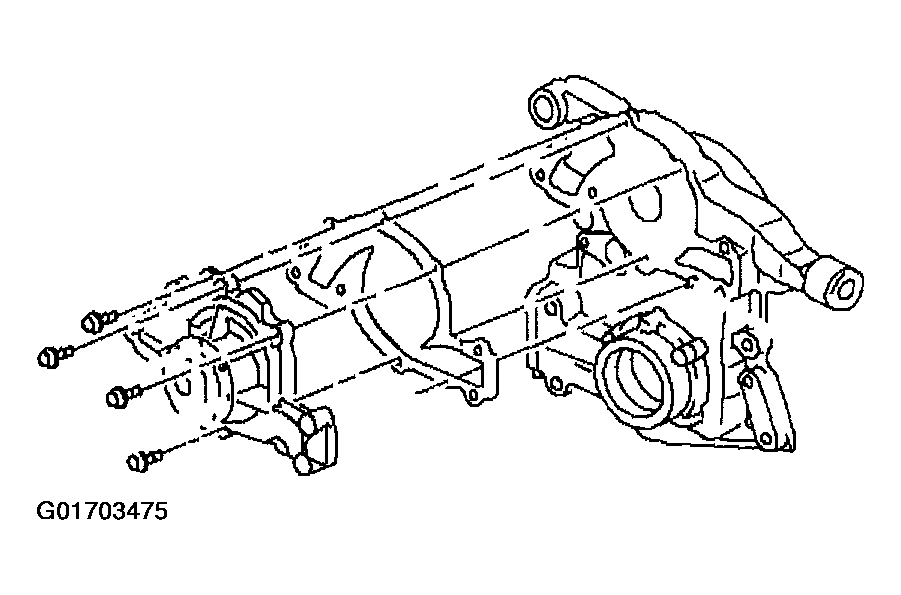

    Fig 2: Water Pump, Bolts & Gasket
    G01703475Courtesy of GENERAL MOTORS CORP.
