Water Pump Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the water pump gasket.
Install the water pump.
NOTE: Refer to FASTENER NOTICE .
Install the water pump bolts.
Tighten
- Tighten the small water pump bolts to 22 N.m (16 lb ft).
- Tighten the large water pump bolts to 34 N.m (25 Ib. ft).

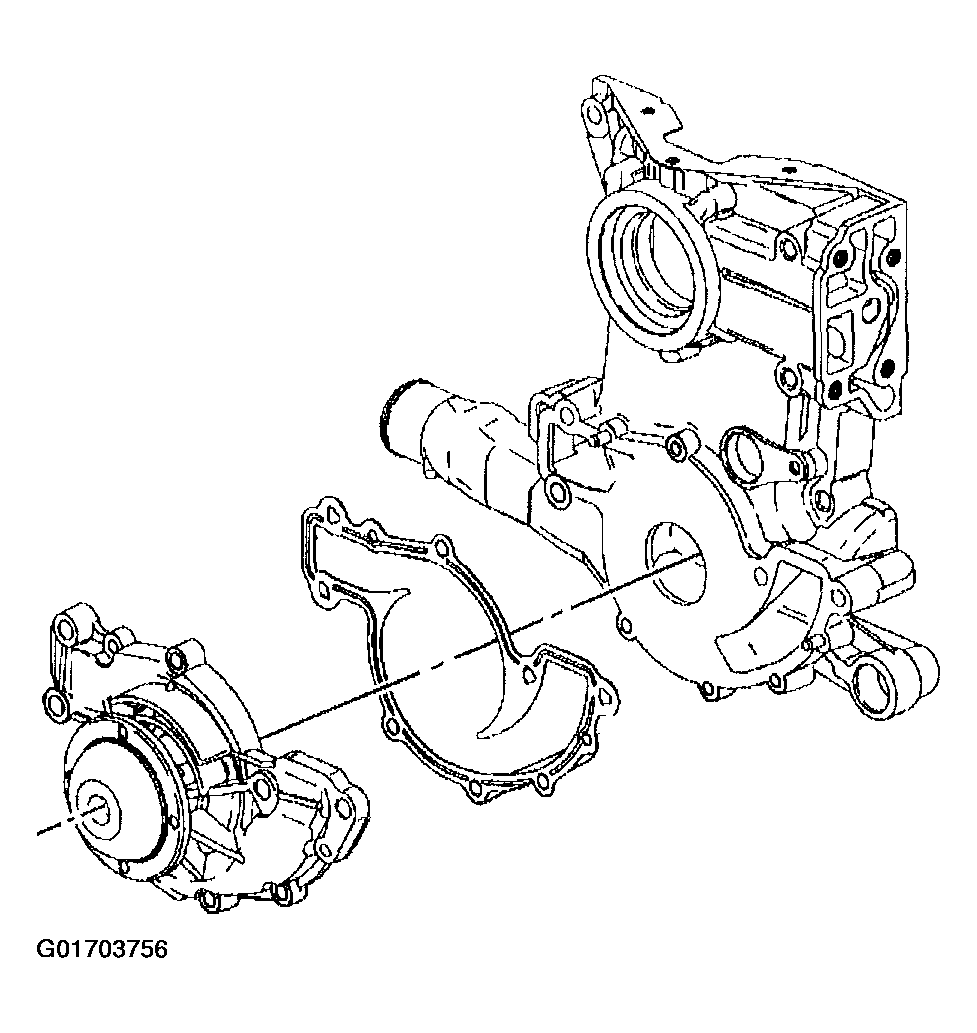

  Fig 1: Water Pump, Gasket & Bolts
  Courtesy of GENERAL MOTORS CORP.
Install the water pump pulley.
Install the water pump pulley bolts.
Tighten

Tighten the water pump pulley bolts to 13 N.m (116 Ib. in).

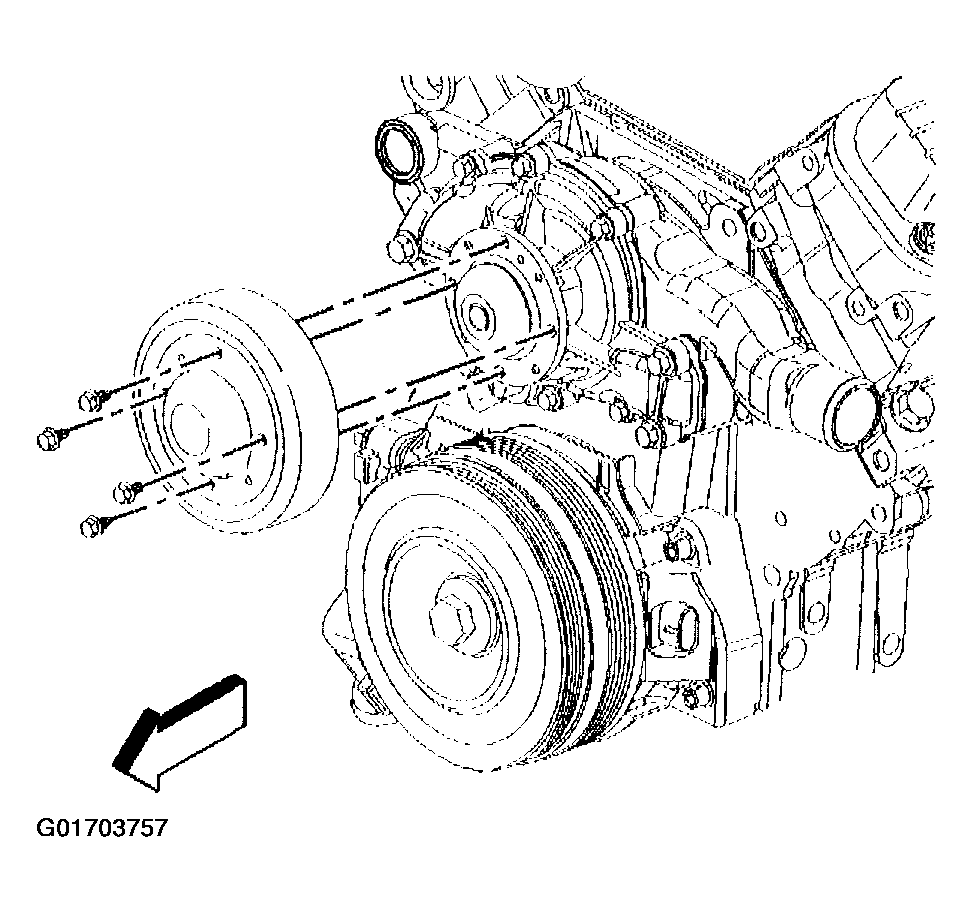

Fig 2: Water Pump Pulley & Bolts
Courtesy of GENERAL MOTORS CORP.
