Water Outlet Installation (L67)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat.
  2. Install the water outlet.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the water outlet bolt and stud.

    Tighten

    Tighten the water outlet bolt and stud to 27 N.m (20 Ib. ft).

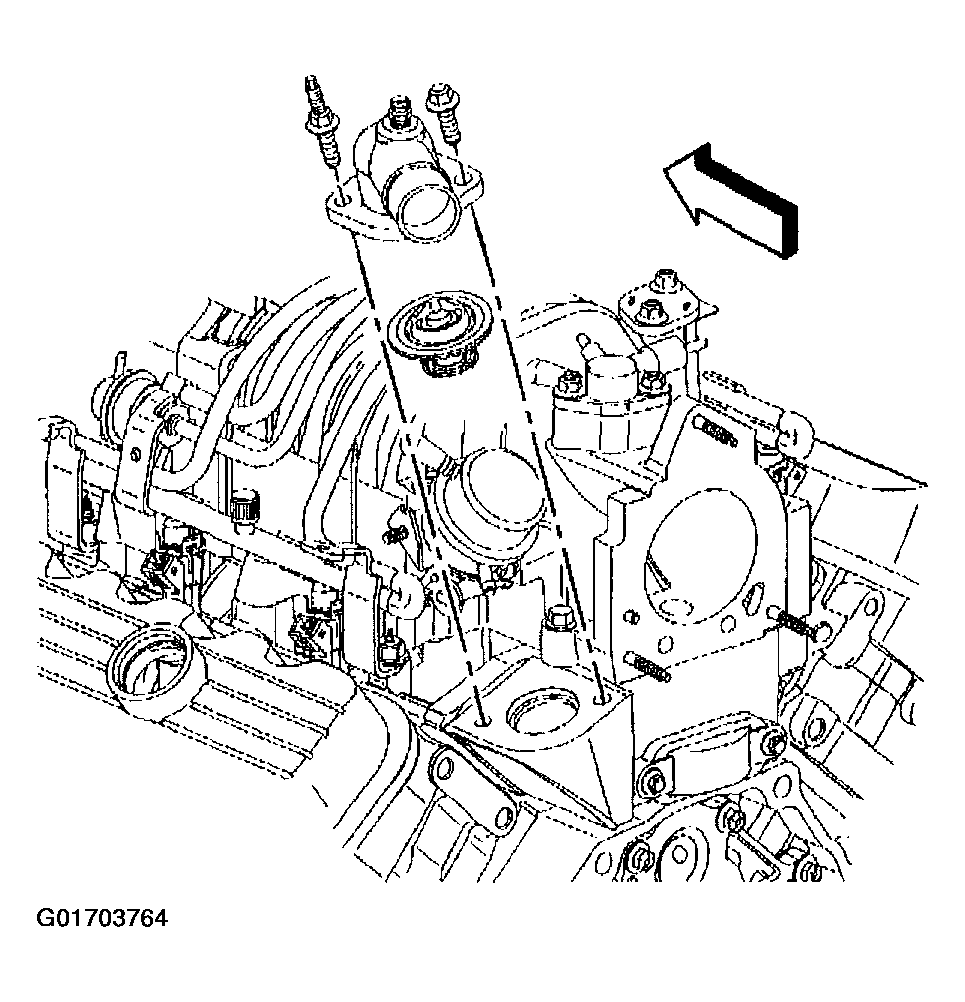

    Fig 1: Thermostat, Water Outlet, Bolt & Stud
    G01703764Courtesy of GENERAL MOTORS CORP.
