Valve Rocker Arm Cover Removal - Right

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover.

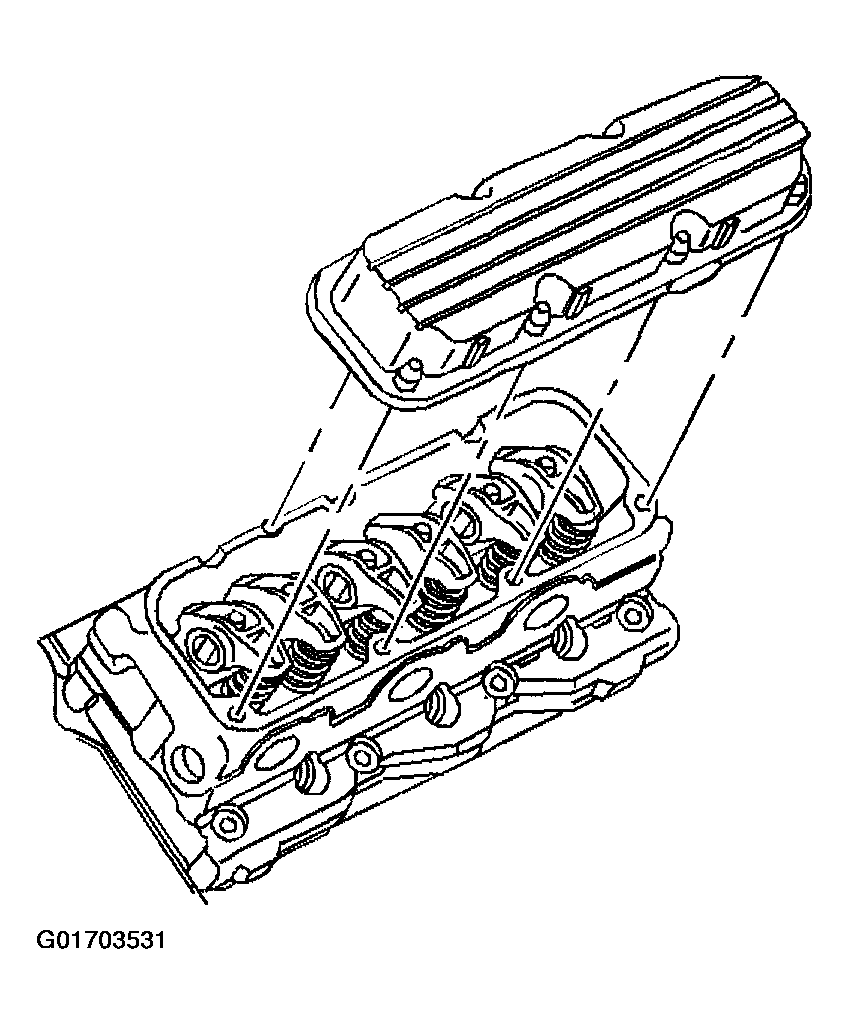

    Fig 1: Valve Rocker Arm Cover & Bolts
    G01703531Courtesy of GENERAL MOTORS CORP.
