Valve Rocker Arm Cover Installation - Right

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover.
  2. Apply GM P/N United States 12345382, GM P/N Canada 10953489 threadlocker or the equivalent to the threads.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 10 N.m (89 Ib. in).

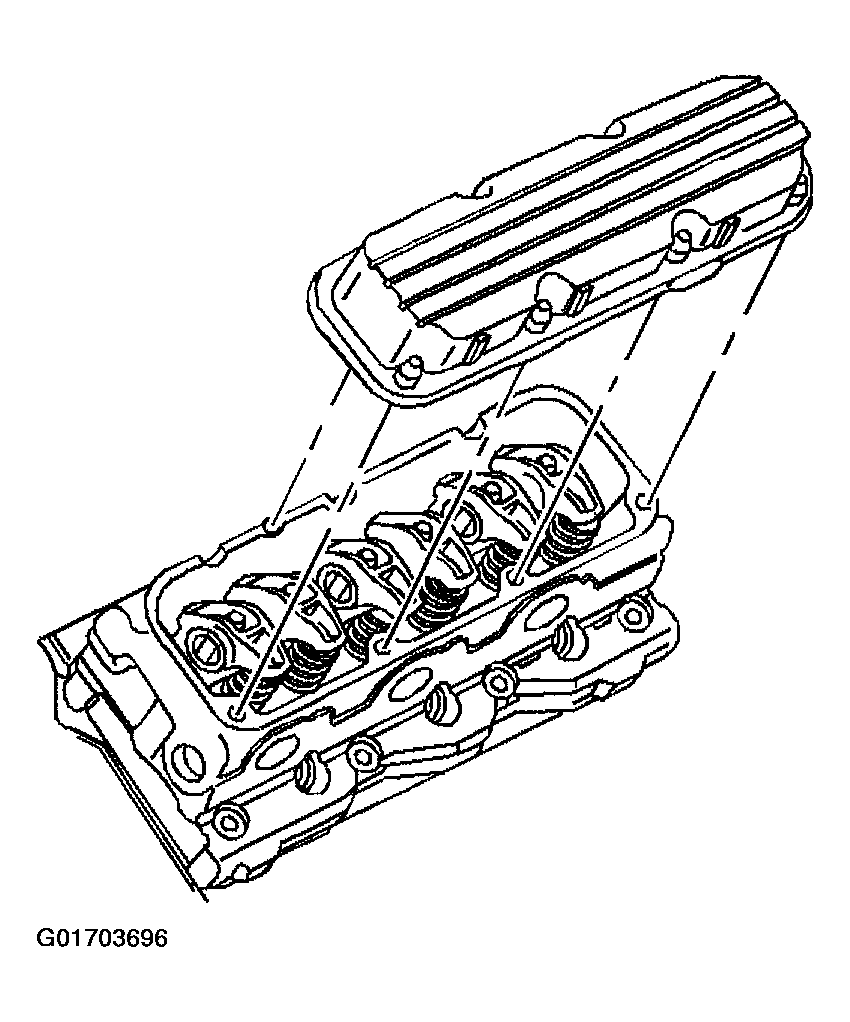

    Fig 1: Right Valve Rocker Arm Cover & Bolts
    G01703696Courtesy of GENERAL MOTORS CORP.
