Oil Pump Disassemble

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump cover screws.
  2. Remove the oil pump cover.
  3. Remove the oil pump gears.

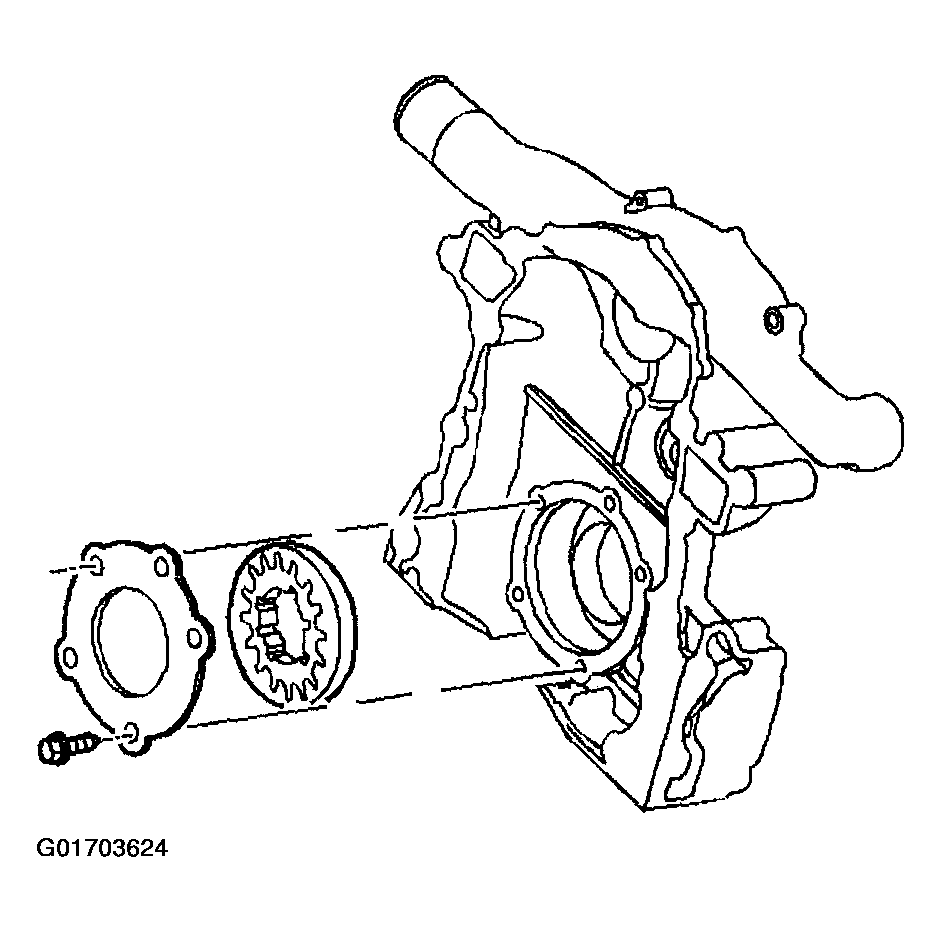

    Fig 1: Remove Oil Pump Cover, Screws & Gears
    G01703624Courtesy of GENERAL MOTORS CORP.
