Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator nut.
  2. Remove the oil level indicator.
  3. Remove the oil level indicator tube.

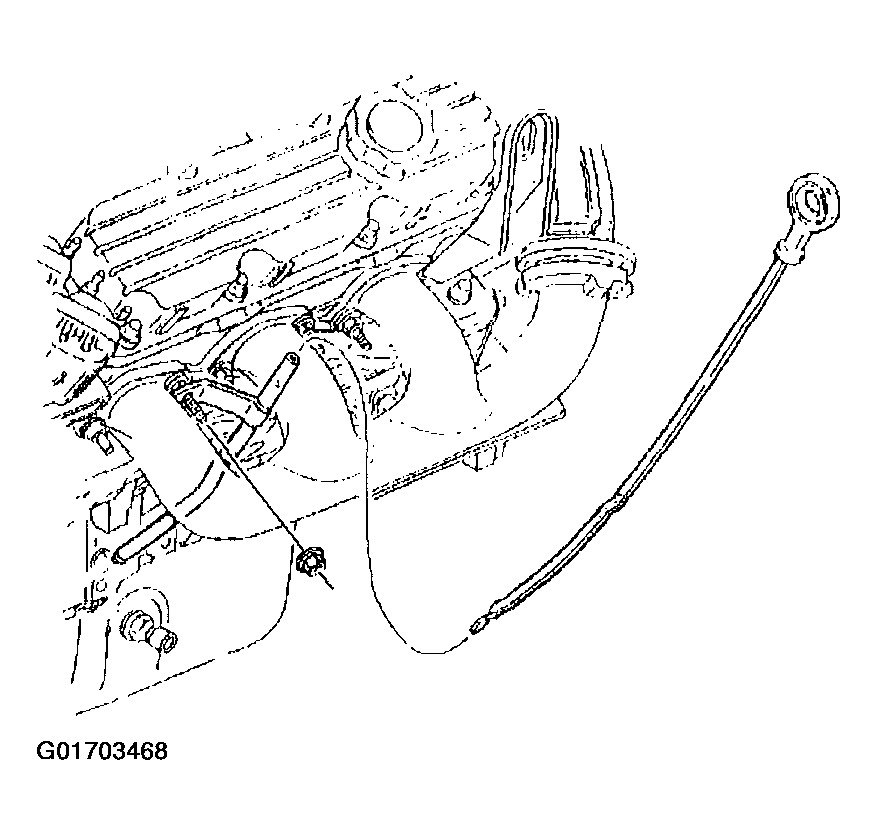

    Fig 1: Oil Level Indicator, Tube & Nut
    G01703468Courtesy of GENERAL MOTORS CORP.
