Oil Level Indicator and Tube Installation
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

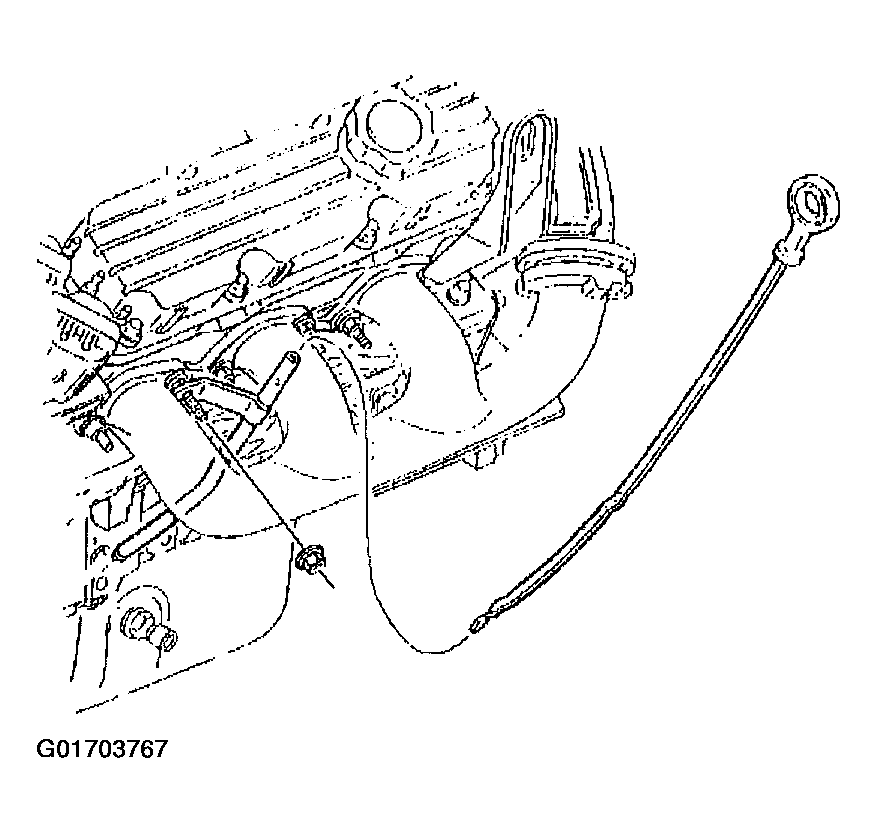

- Install the oil level indicator tube.
- Lubricate the O-ring with engine oil and make sure it is in place.
- Make sure the assembly is fully seated in the engine block.
NOTE: Refer to FASTENER NOTICE . - Install the oil level indicator tube nut.
Tighten
Tighten the nut to 19 N.m (14 Ib. ft).
