Intake Manifold Installation - Upper

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the upper intake manifold gasket.
Install the upper intake manifold.

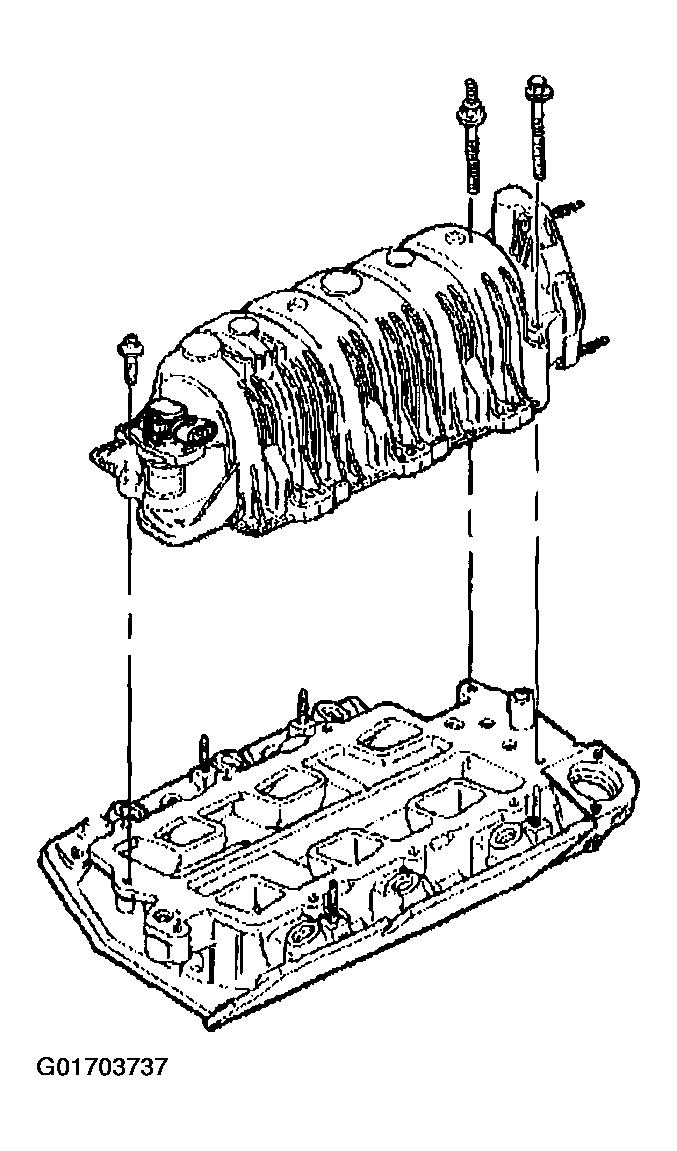

Fig 1: Upper Intake Manifold & Gasket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the upper intake manifold bolts.
Tighten

Tighten the upper intake manifold bolts in sequence to 10 N.m (89 Ib. in).

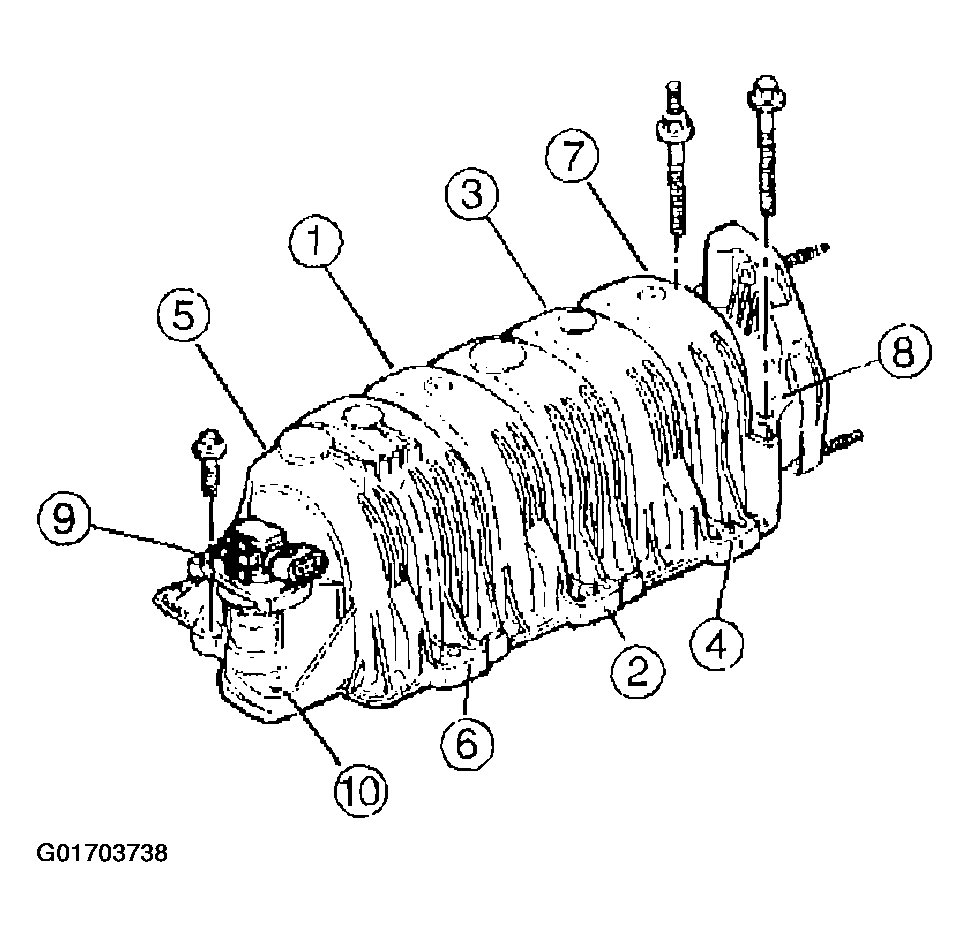

Fig 2: Tightening Sequence For Upper Intake Manifold Bolts
Courtesy of GENERAL MOTORS CORP.
Install the throttle body gasket.
Install the throttle body.
Install the throttle body nuts.
Tighten

Tighten the throttle body nuts to 10 N.m (89 Ib. in).

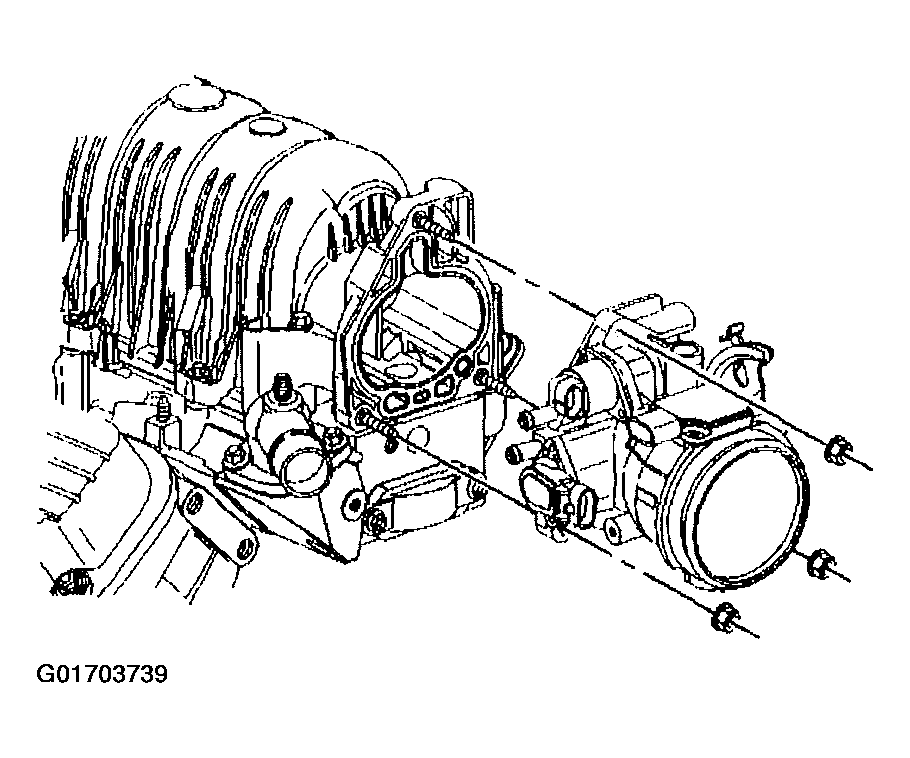

Fig 3: Throttle Body, Gasket & Nuts
Courtesy of GENERAL MOTORS CORP.
Install the engine wiring harness heat shield.
Install the engine wiring harness heat shield bolt and nut.
Tighten

Tighten the engine wiring harness heat shield bolt and nut to 10 N.m (89 Ib. in).

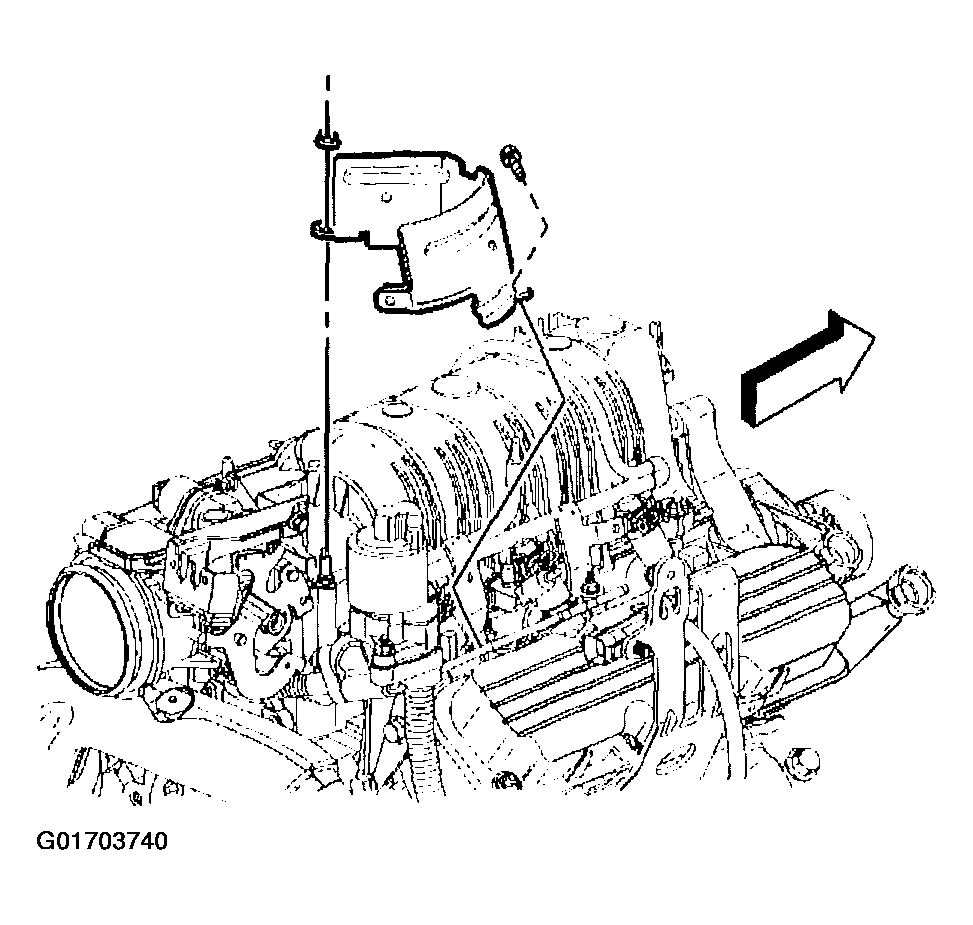

Fig 4: Engine Wiring Harness Heat Shield, Bolt & Nut
Courtesy of GENERAL MOTORS CORP.
Install the accelerator control cable bracket.
Install the accelerator control cable bracket bolts.
Tighten

Tighten the accelerator control cable bracket bolts to 16 N.m (12 lb ft).

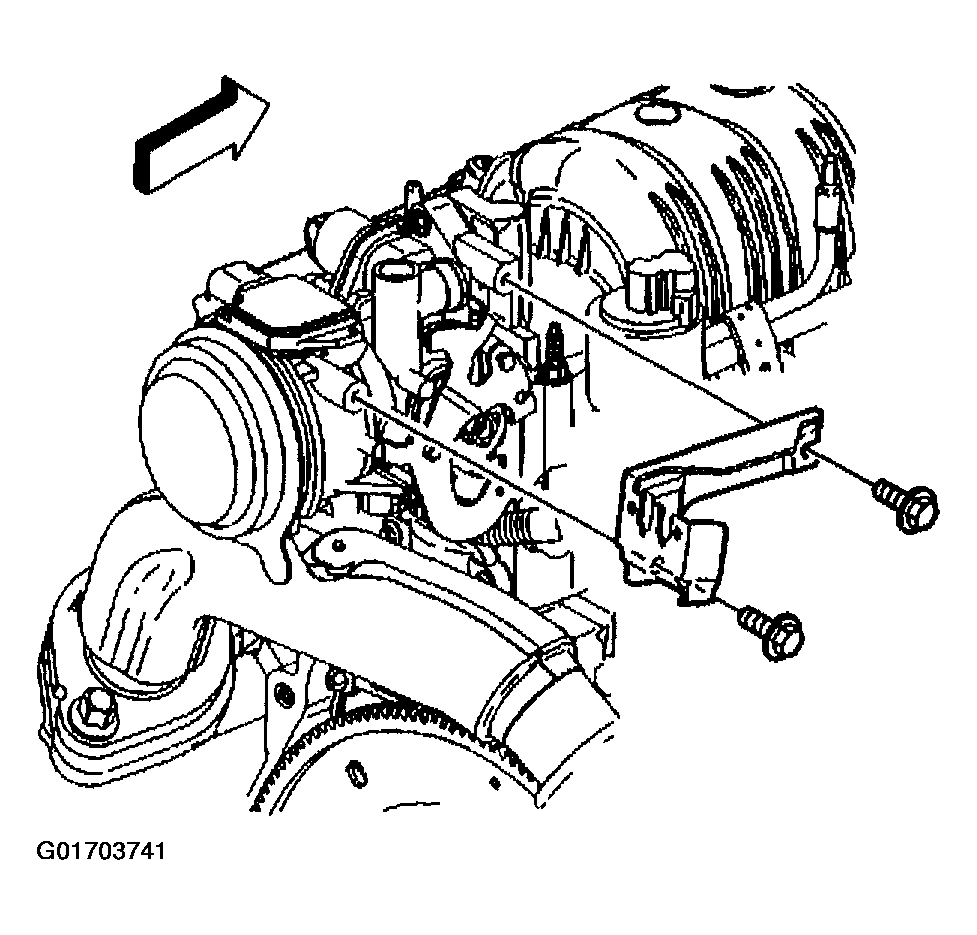

Fig 5: Accelerator Control Cable Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the fuel injector rail.
Install the fuel injector rail nuts.
Tighten

Tighten the fuel injector rail nuts to 10 N.m (89 lb in).

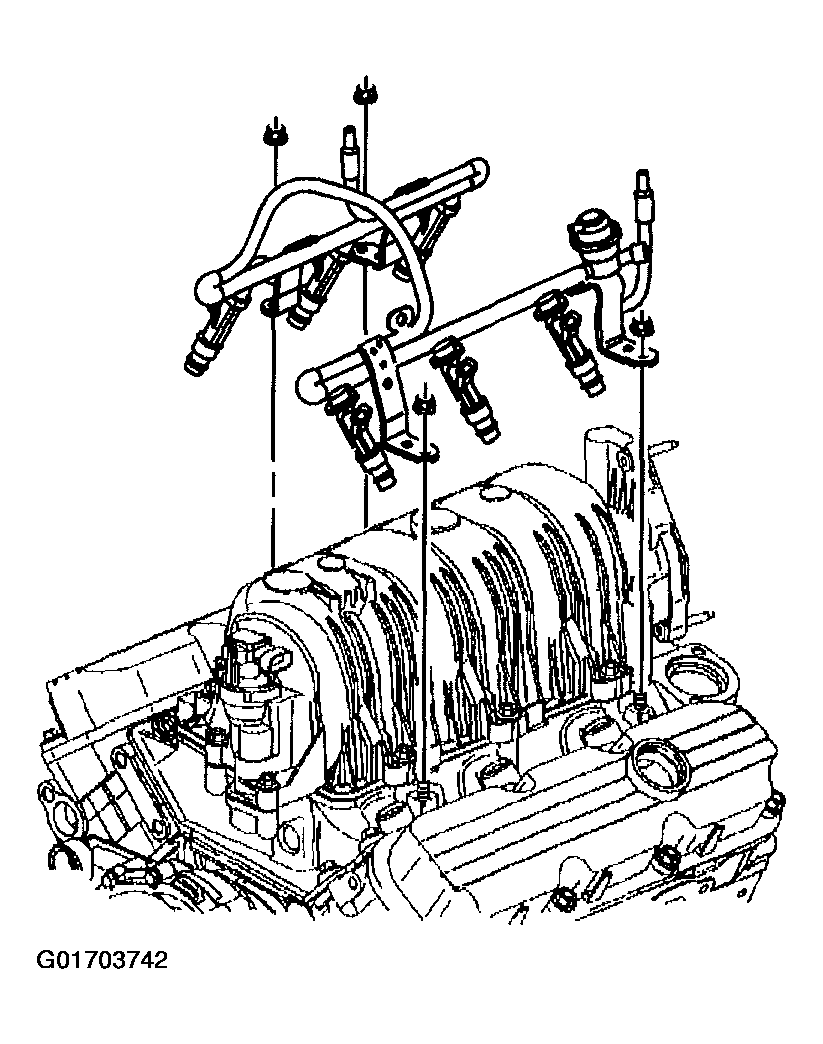

Fig 6: Fuel Injector Rail & Nuts
Courtesy of GENERAL MOTORS CORP.
Install the ignition control module assembly.
Install the ignition control module assembly bracket nuts.
Tighten

Tighten the ignition control module assembly bracket nuts to 50 N.m (37 Ib. ft).
Connect the ignition control module connector to the ignition control module assembly.
Connect the ignition wires to the fuel injector rail.
Install the spark plug wires.

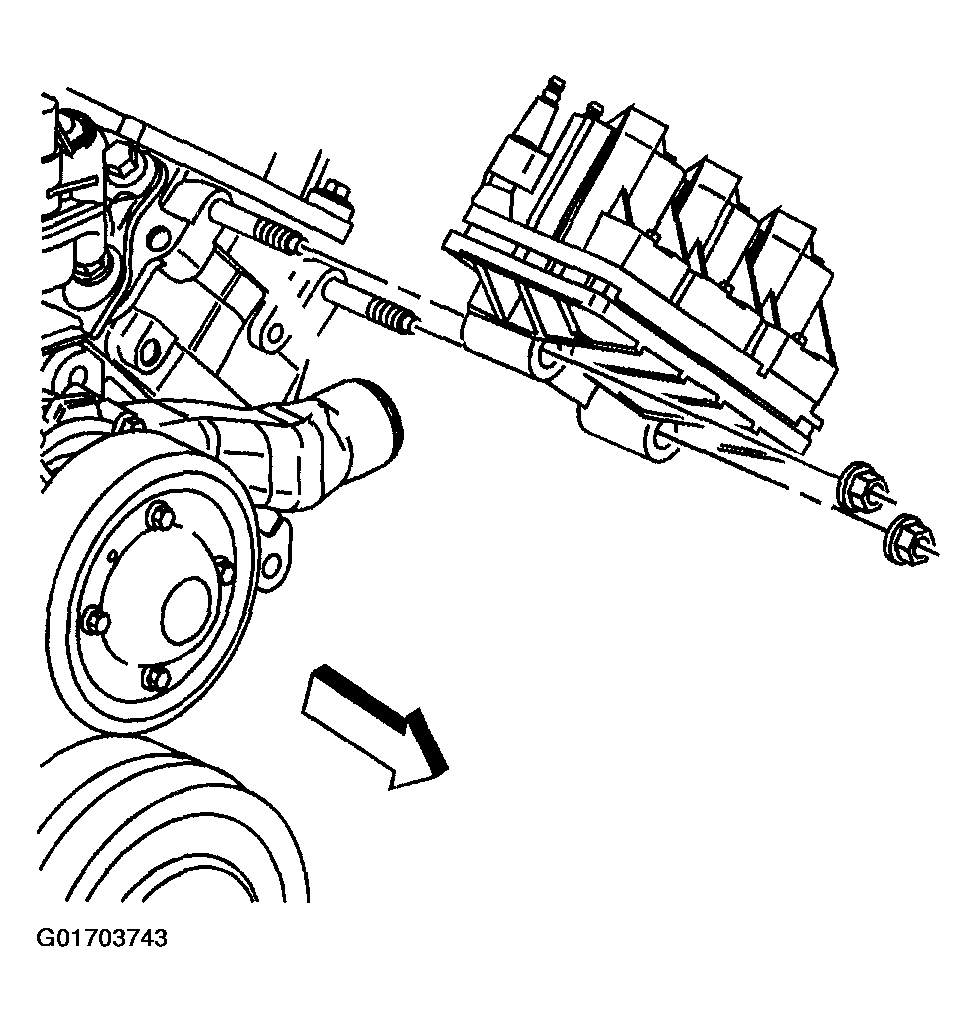

Fig 7: Ignition Control Module Assembly & Bracket Nuts
Courtesy of GENERAL MOTORS CORP.
