Drive Belt Tensioner Removal - Left (L67)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt tensioner nut.
  2. Remove the drive belt tensioner.

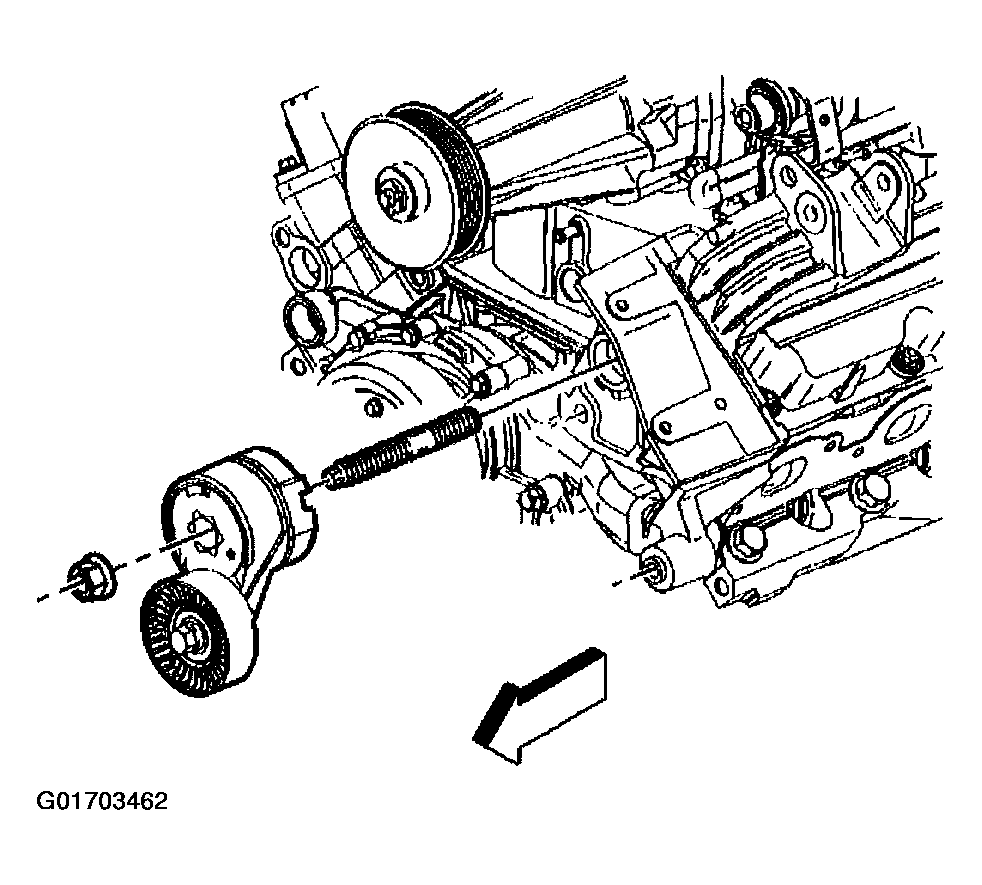

    Fig 1: Drive Belt Tensioner & Nut
    G01703462Courtesy of GENERAL MOTORS CORP.
