Crankshaft Front Oil Seal Installation
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
J 35354 Seal Installer
- Coat the inside diameter of the crankshaft front oil seal with lubricant GM P/N United States 12345616, GM P/N Canada 993182 or the equivalent.

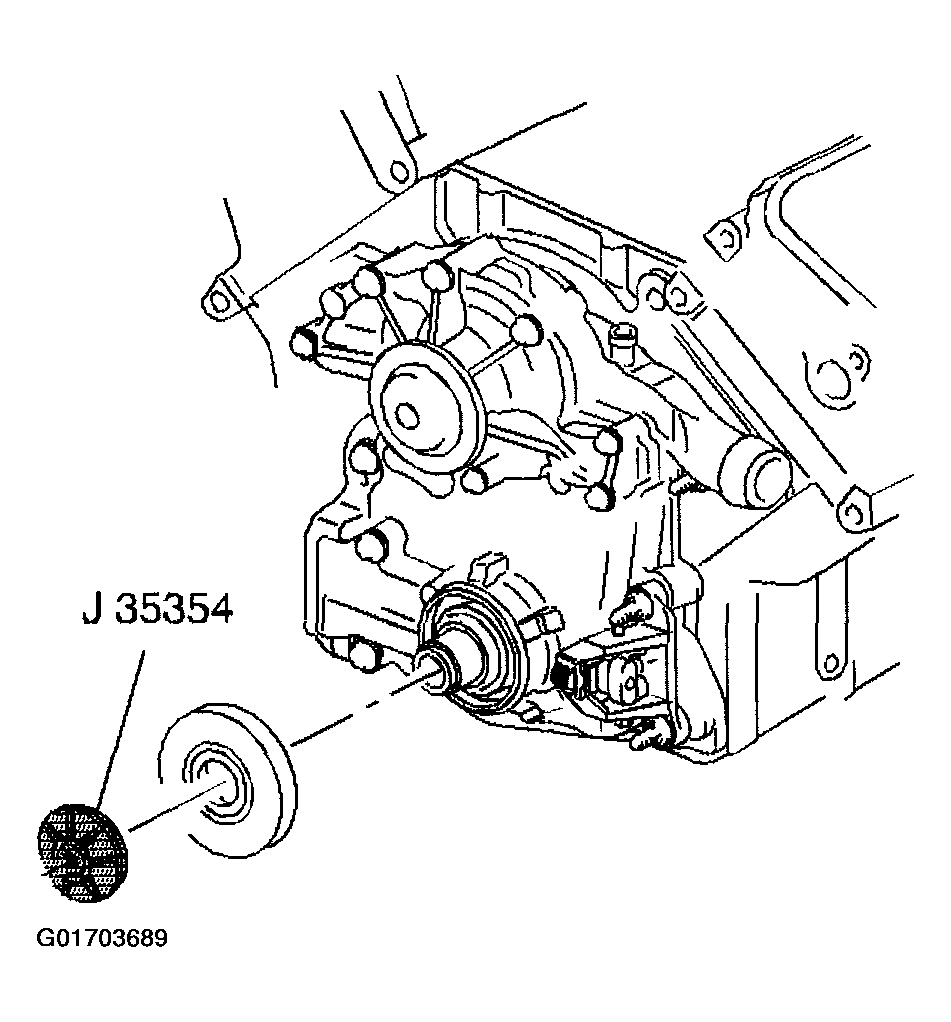

- Use J 35354 and a soft faced hammer to install the crankshaft front oil seal.
- Remove J 35354.
