Removal & Installation
WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

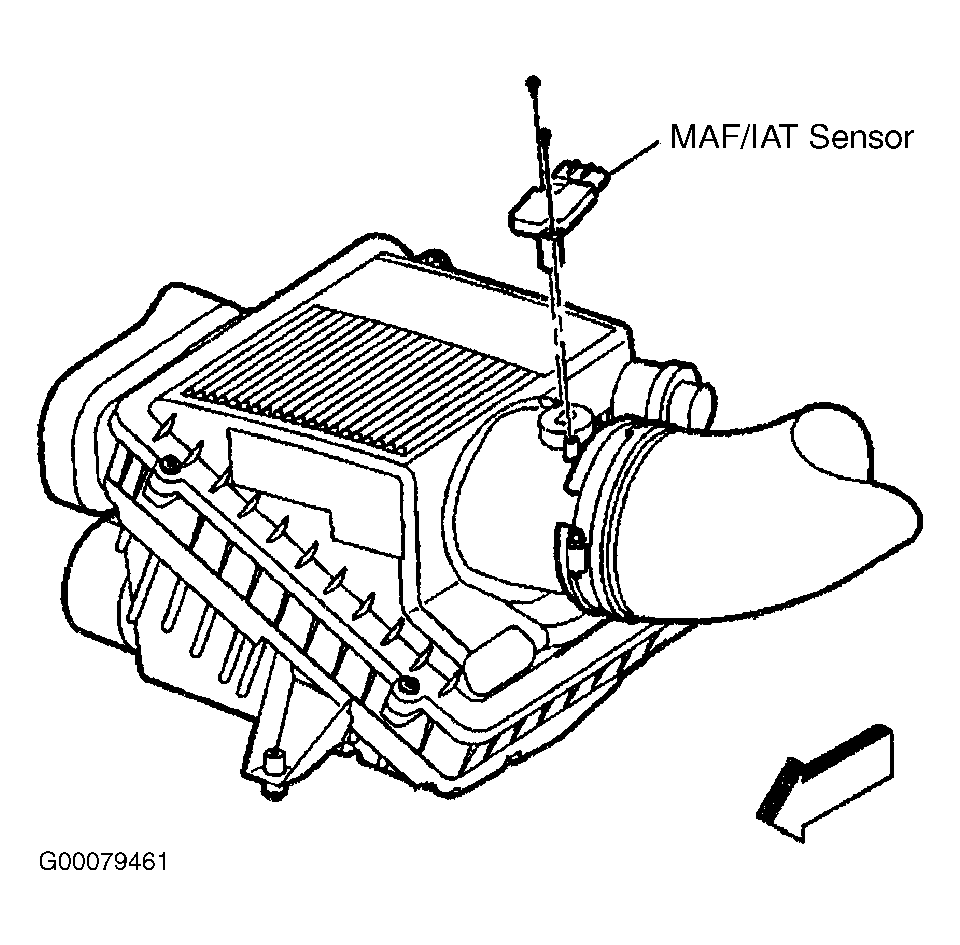

Disconnect the electrical connector of the Mass Air Flow/Intake Air Temperature (MAF/IAT) sensor. See Fig 1. Remove the mounting bolts of the MAF/IAT sensor from the upper housing of the air cleaner assembly. Remove the MAF/IAT sensor. To install, reverse removal procedure.
