Removal & Installation
WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

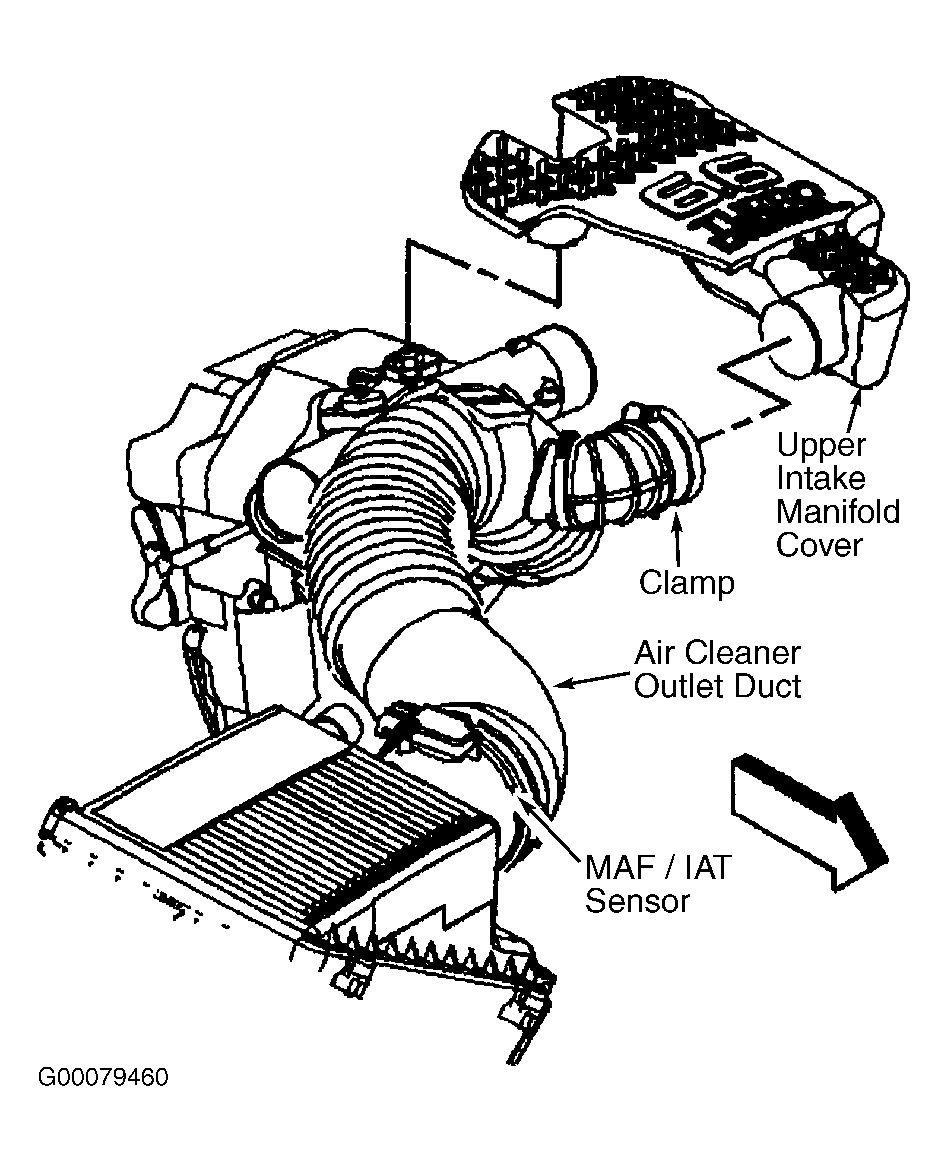

Loosen the outlet duct clamp at the upper intake manifold cover. Remove he upper intake manifold cover from the outlet duct. Remove the upper intake manifold cover. Remove the intake air heater harness connector nut. Remove the intake air heater from the inlet pipe. See Fig 1. To install, reverse removal procedure.
