Removal & Installation
WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

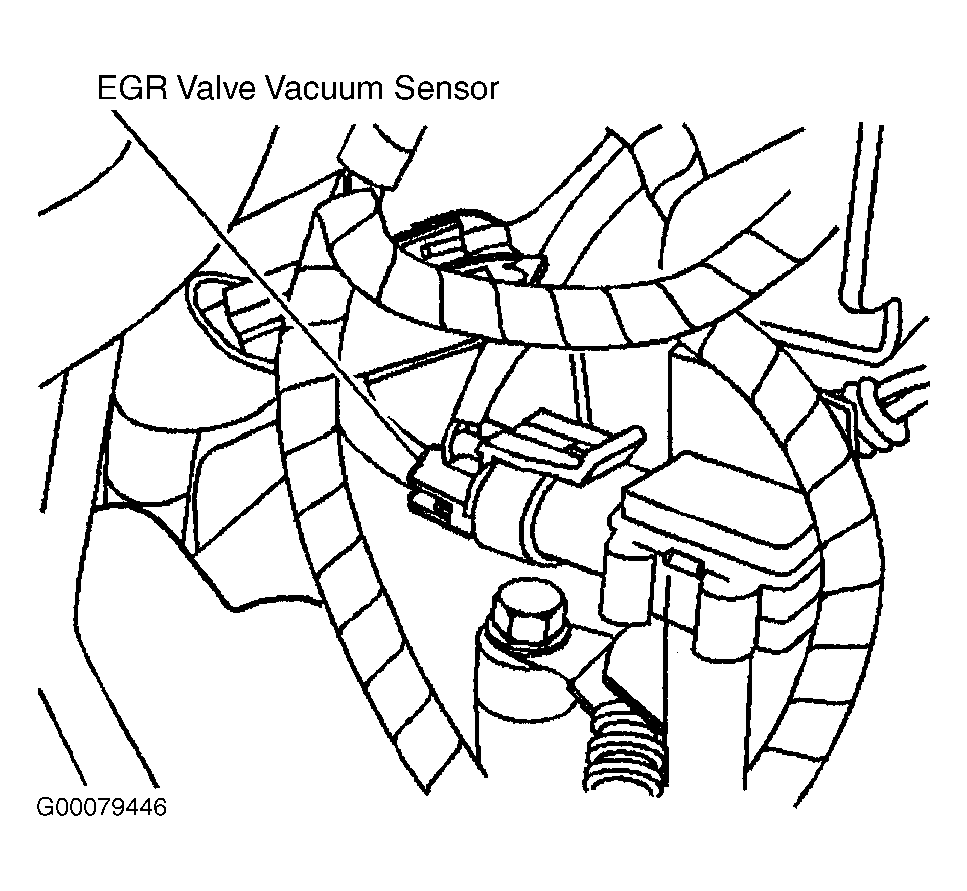

Disconnect the negative battery cable. Disconnect the Exhaust Gas Recirculation (EGR) valve vacuum sensor electrical connector. See Fig 1. Disconnect the EGR valve vacuum sensor vacuum line. Remove the EGR valve vacuum sensor from the bracket. To install, reverse removal procedure.
