Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamps. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (EXCEPT AVALANCHE) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AVALANCHE) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (ESCALADE) .
  2. Remove the park/turn signal lamps. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT (EXCEPT AVALANCHE) or PARK/TURN SIGNAL LAMP REPLACEMENT (AVALANCHE) .
  3. Remove the grille. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) .
  4. Remove the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (AVALANCHE) .

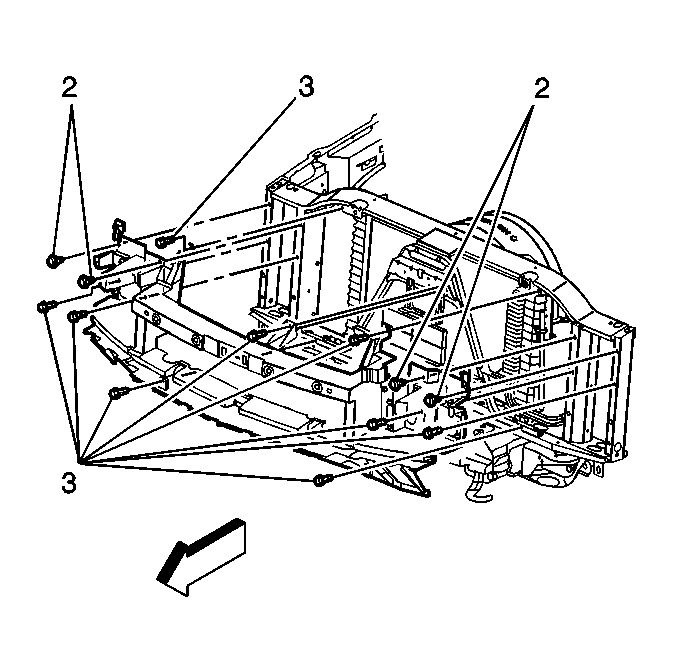

    5. Fig 1: Radiator Grille Reinforcement Support
    GM741571Courtesy of GENERAL MOTORS CORP.
  5. Remove the retaining bolts (3) from the grille reinforcement.
  6. Remove the retaining screws (2) from the grille reinforcement.
  7. Remove the reinforcement from the vehicle.
