Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT .
    2. Fig 1: View Of Cowl Vent Grille Panel Outboard Section
    GM334315Courtesy of GENERAL MOTORS CORP.
  2. Pull up in order to release the outboard air inlet grille panel clips.

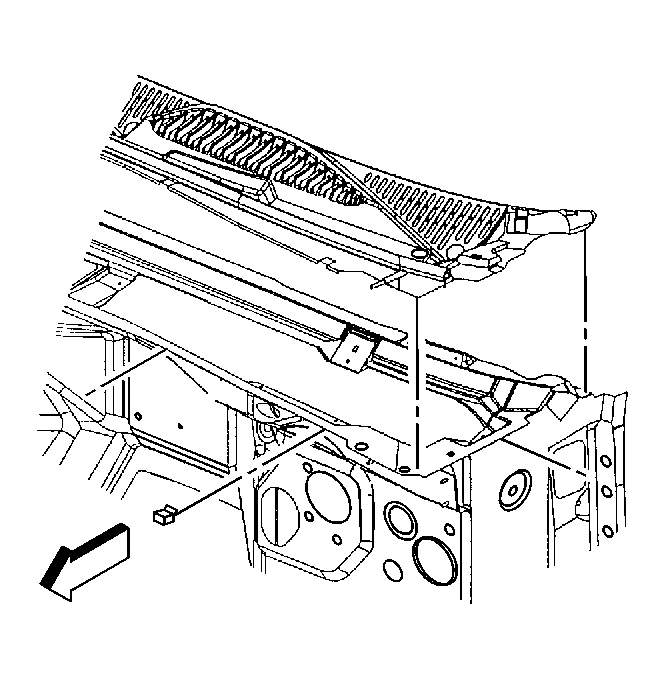

    3. Fig 2: Air Inlet Grille Panel & Clips
    GM348546Courtesy of GENERAL MOTORS CORP.
  3. Remove the attaching clips running along the edges of the center air inlet grille panel.
  4. Remove the sheet metal screws on each end of the air inlet grille panel.
  5. Disconnect the windshield washer hose from the nozzle underneath the center air inlet grille panel.
  6. Remove the air inlet grille panel.
