Rear Camber and Toe Adjustment (AWD)
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

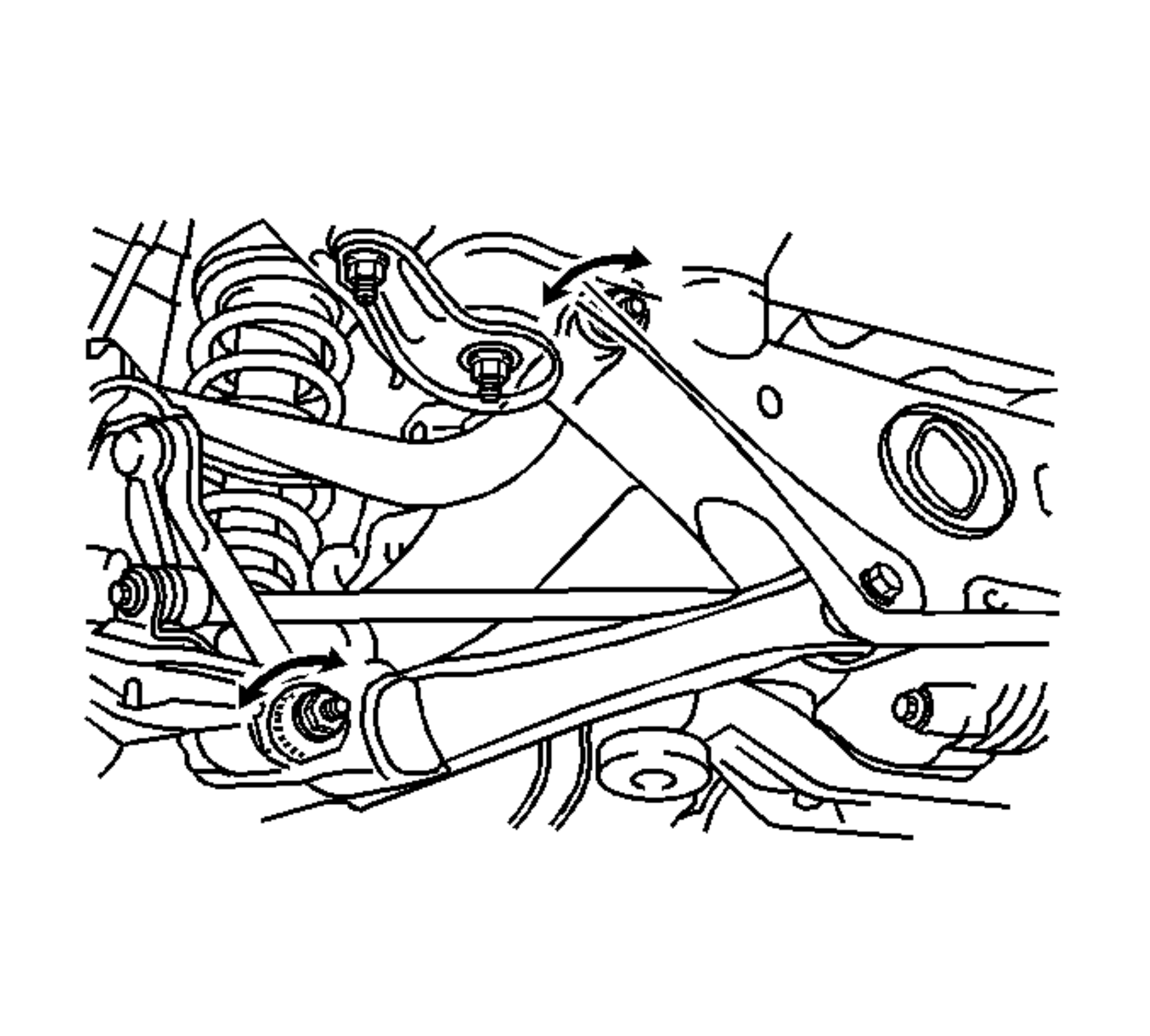

- Loosen the nut on the upper control arm cam bolt.
- Loosen the nut on the lower control arm cam bolt.
- Rotate the cam bolts in order to adjust the camber and the toe to the specification. Refer to Wheel Alignment Specifications .
- Measure the distance from the lower left control arm bracket to the right rear crossmember bolt.
- Measure the distance from the lower right control arm bracket to the left rear crossmember bolt.
- Verify the difference between measurement (a) and measurement (b) are within the specification.
Specification: The difference between measurement (a) and measurement (b) should be 6 mm (0.24 in) or less.
- Tighten the nuts on the control arm cam bolts.
Tighten: Tighten the nuts to 74 N.m (54.6 lb ft).
- Measure the alignment.
- Adjust the rear camber and toe if necessary.

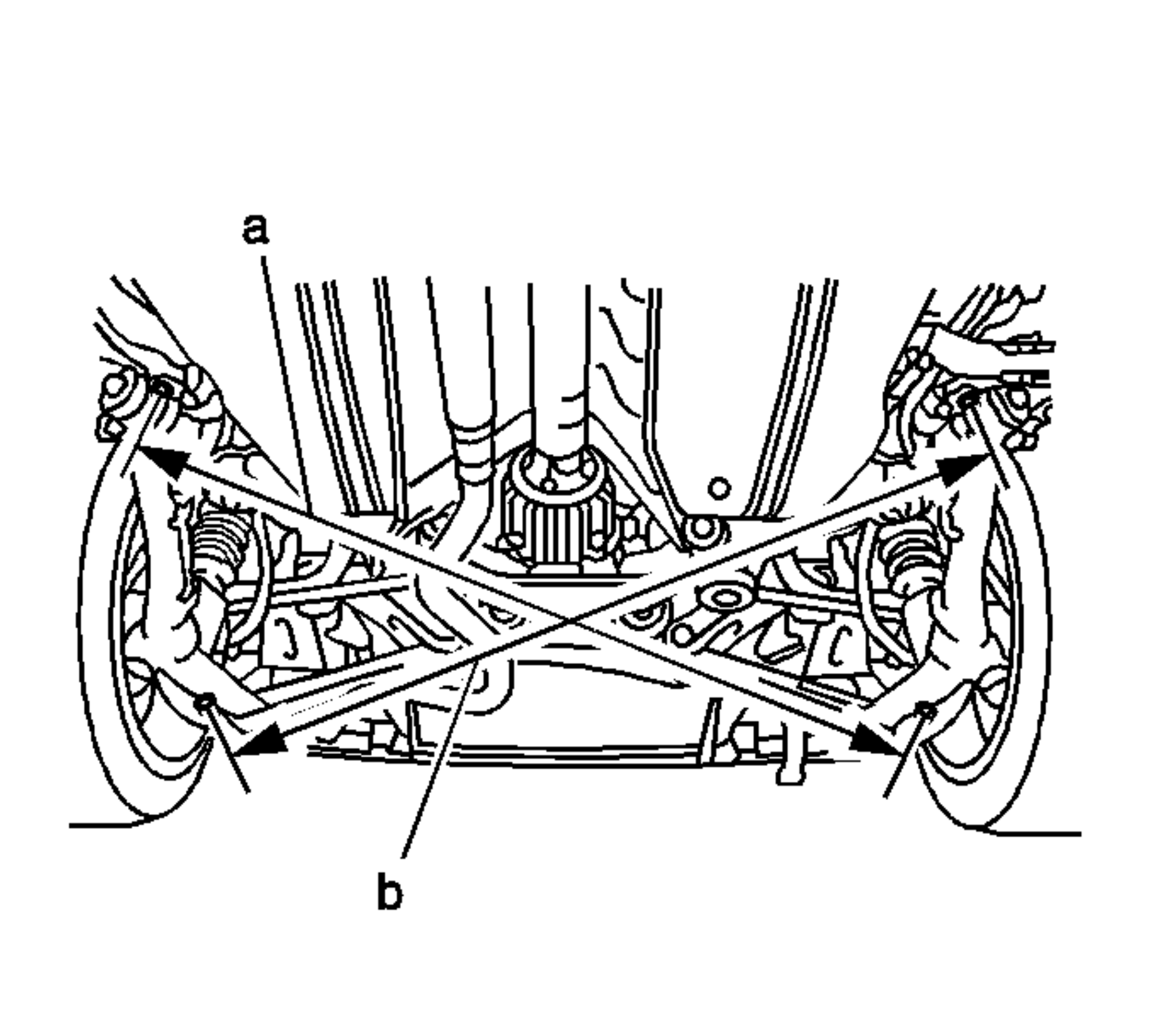

Fig 2: Measurement Between Lower Left/Right Control Arm Bracket To The Right Rear/Left Crossmember Bolt
