Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the compressor. Refer to Compressor Replacement .

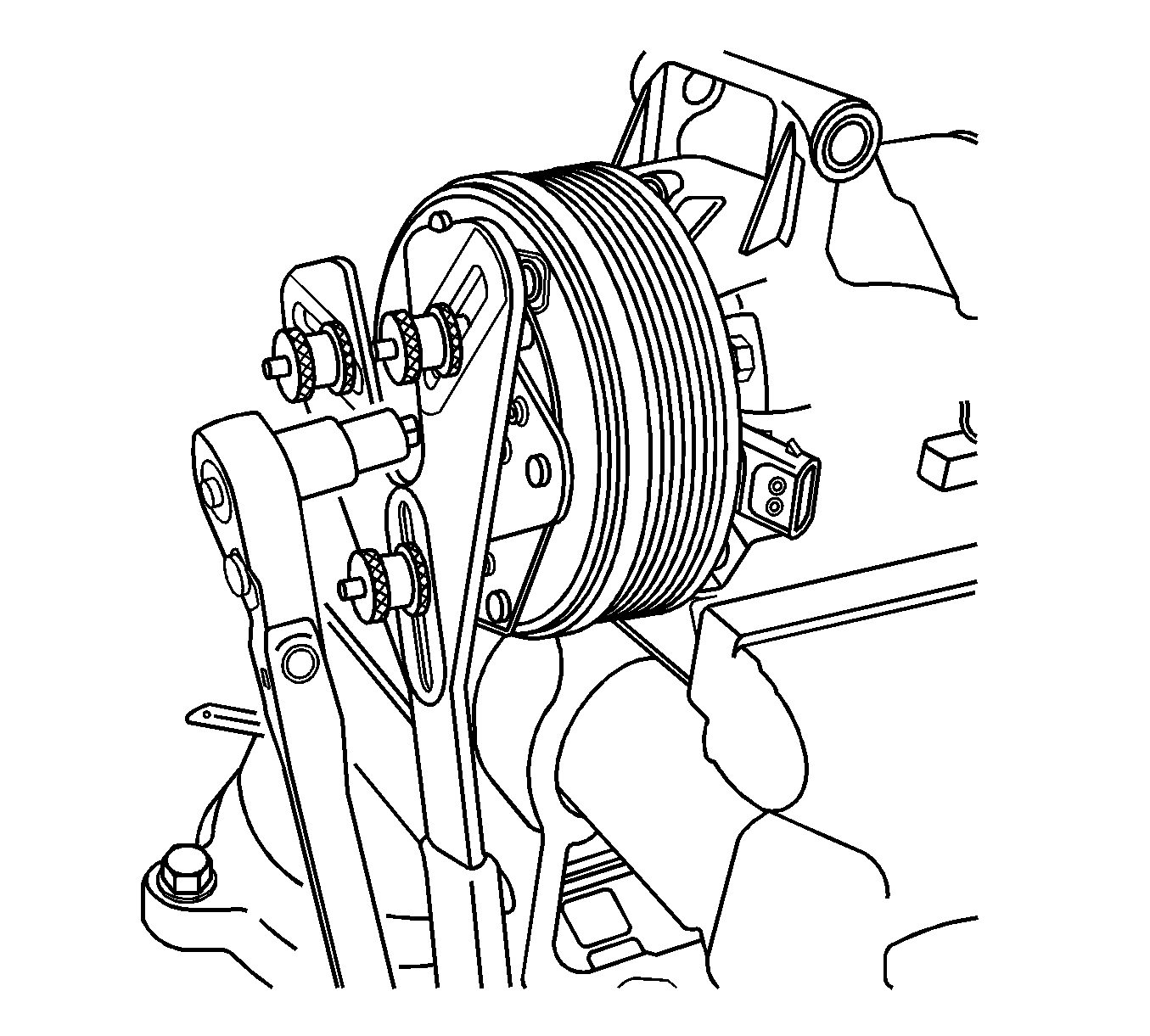

    2. Fig 1: Identifying Compressor Clutch Plate Bolt
    GM872553Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Remove the three adjustable dowels from the J 37872  Universal Spanner Wrench. See Special Tools and Equipment .
    Install three 5/16 x 1 inch bolts in place of the dowels.
  2. Remove and discard the compressor clutch plate bolt.

    Use the J 37872  to hold the compressor clutch plate from turning. See Special Tools and Equipment .

    3. Fig 2: Identifying Compressor Clutch Plate
    GM872556Courtesy of GENERAL MOTORS CORP.
  3. Remove the compressor clutch plate from the compressor.

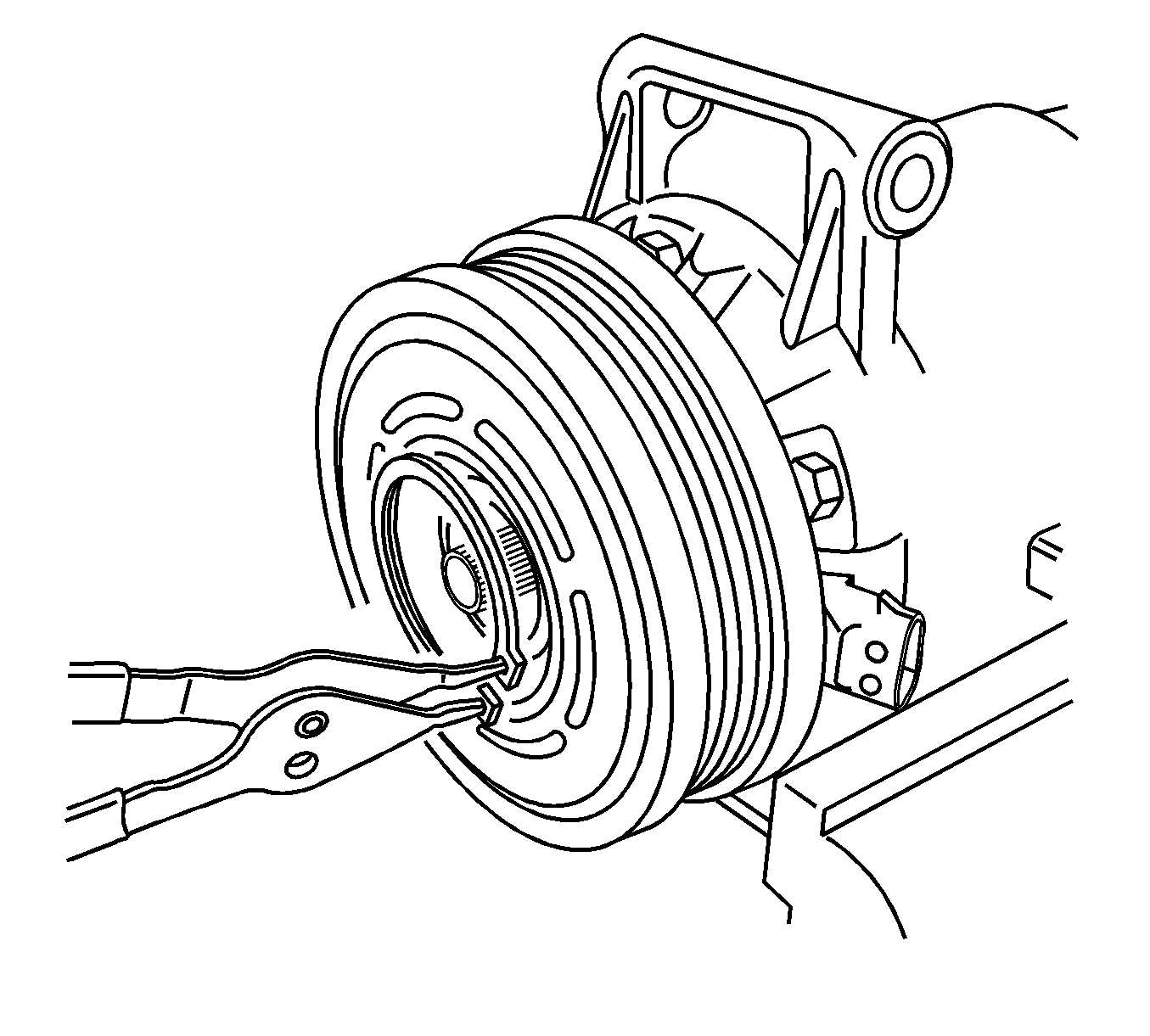

    4. Fig 3: View Of Compressor Pulley Snap Ring
    GM872558Courtesy of GENERAL MOTORS CORP.
  4. Remove the compressor pulley snap ring using the J 6083 .

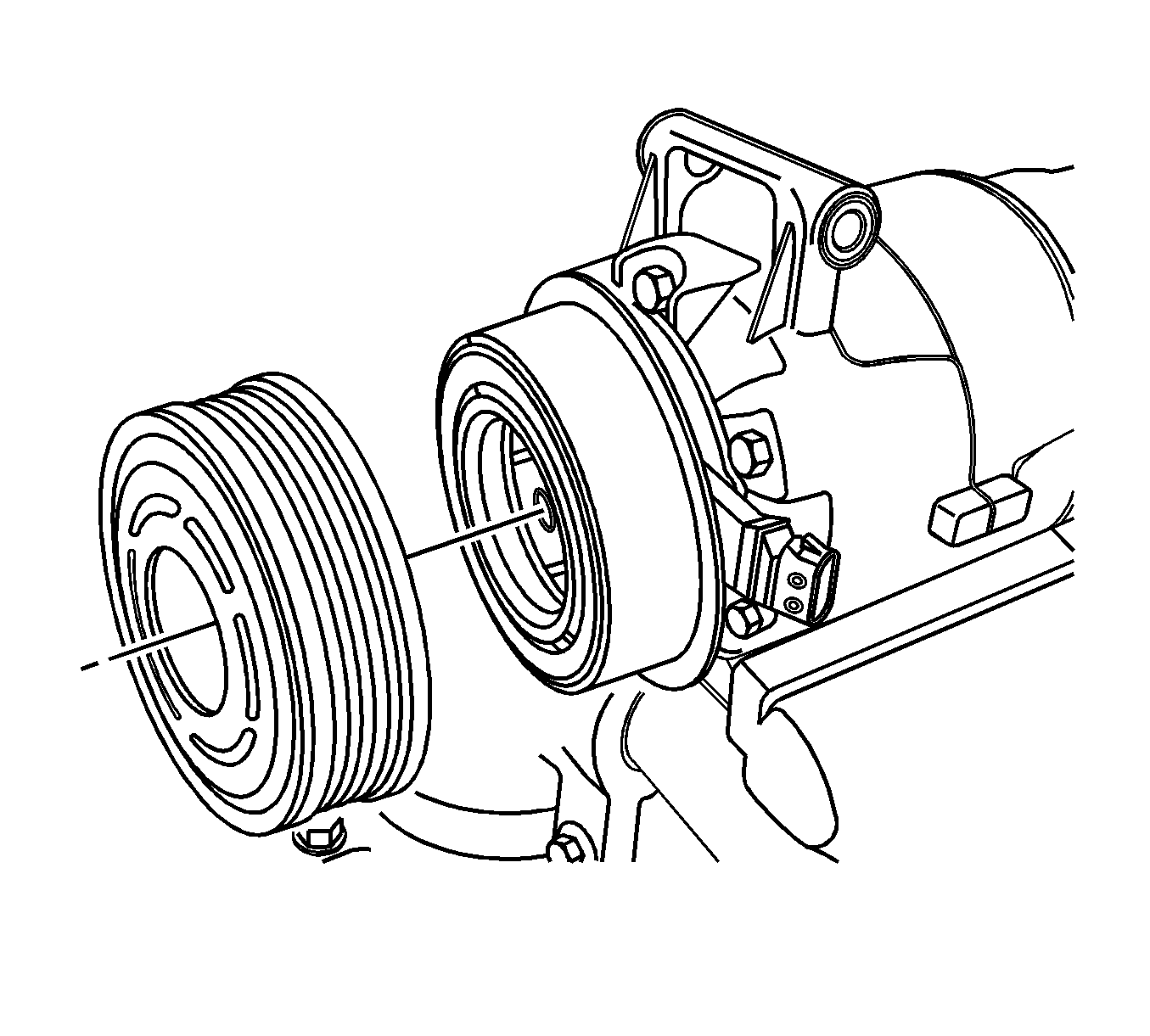

    5. Fig 4: Identifying Compressor Pulley
    GM872560Courtesy of GENERAL MOTORS CORP.
  5. Remove the compressor pulley from the compressor.

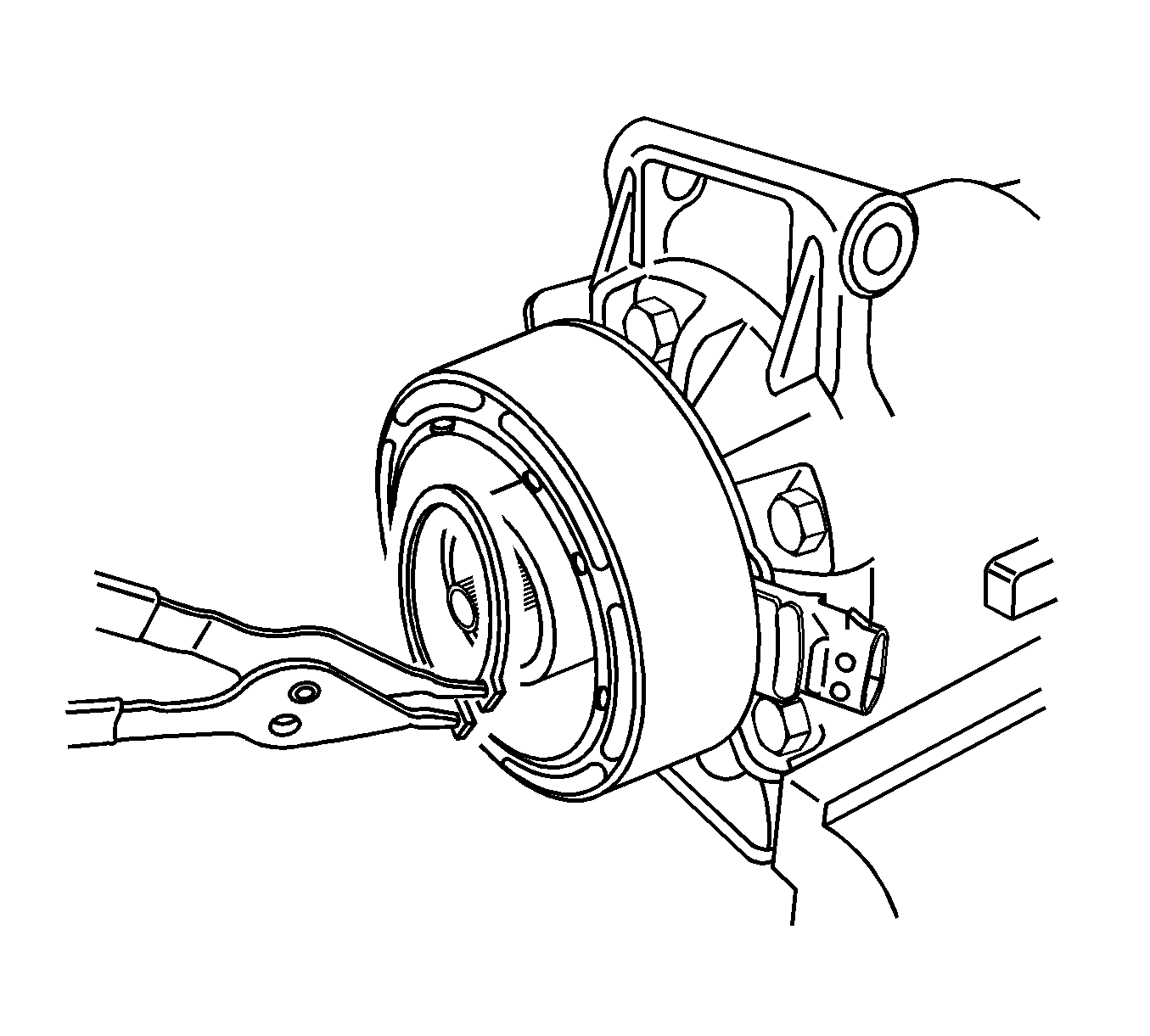

    6. Fig 5: Identifying Compressor Clutch Coil And Snap Ring
    GM872563Courtesy of GENERAL MOTORS CORP.
  6. Remove the compressor clutch coil snap ring using the J 6083 .

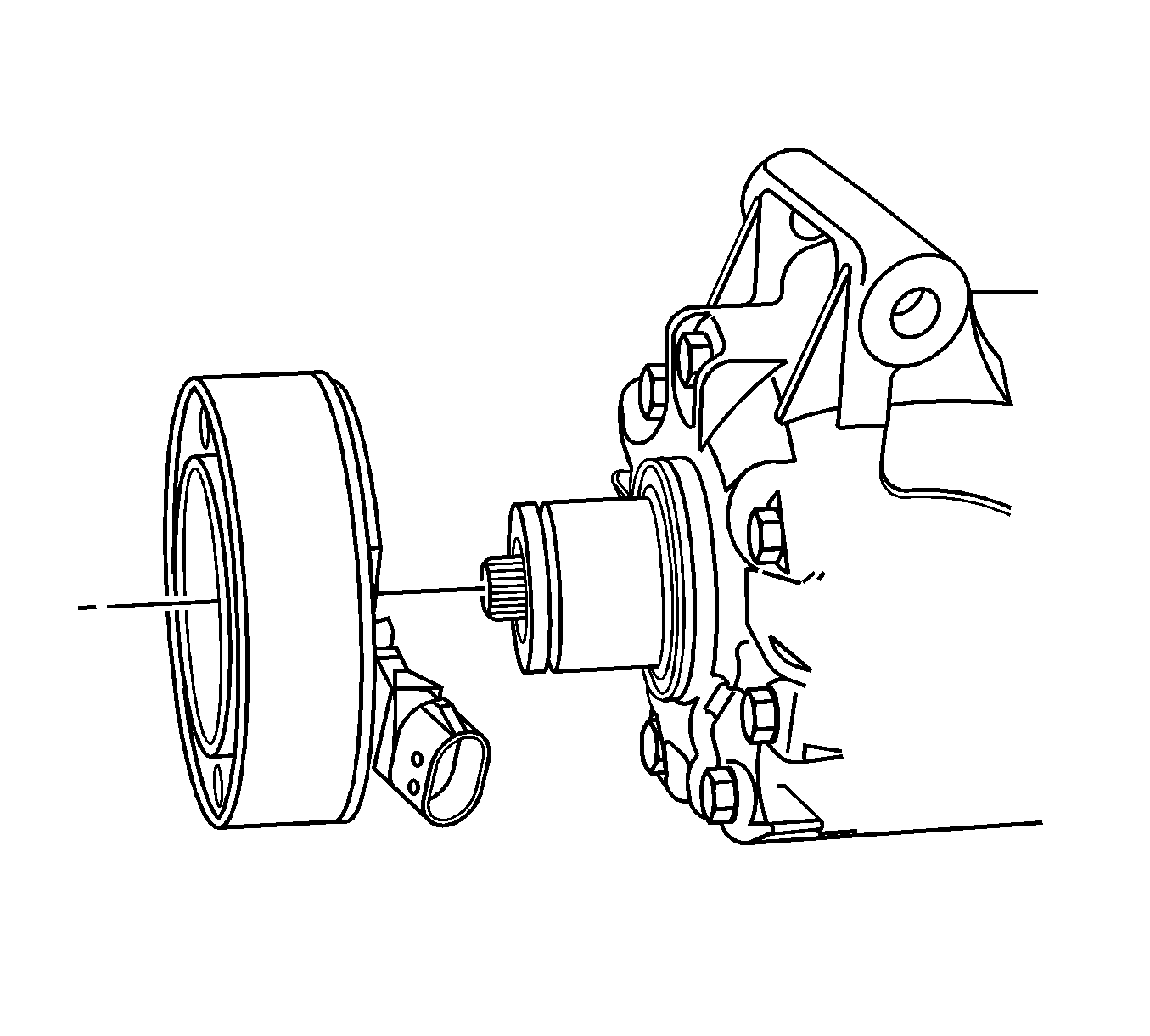

    7. Fig 6: Identifying Compressor Clutch Coil To Compressor
    GM872561Courtesy of GENERAL MOTORS CORP.
  7. Remove the compressor clutch coil from the compressor.
