With Centering Window And Service Lock

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

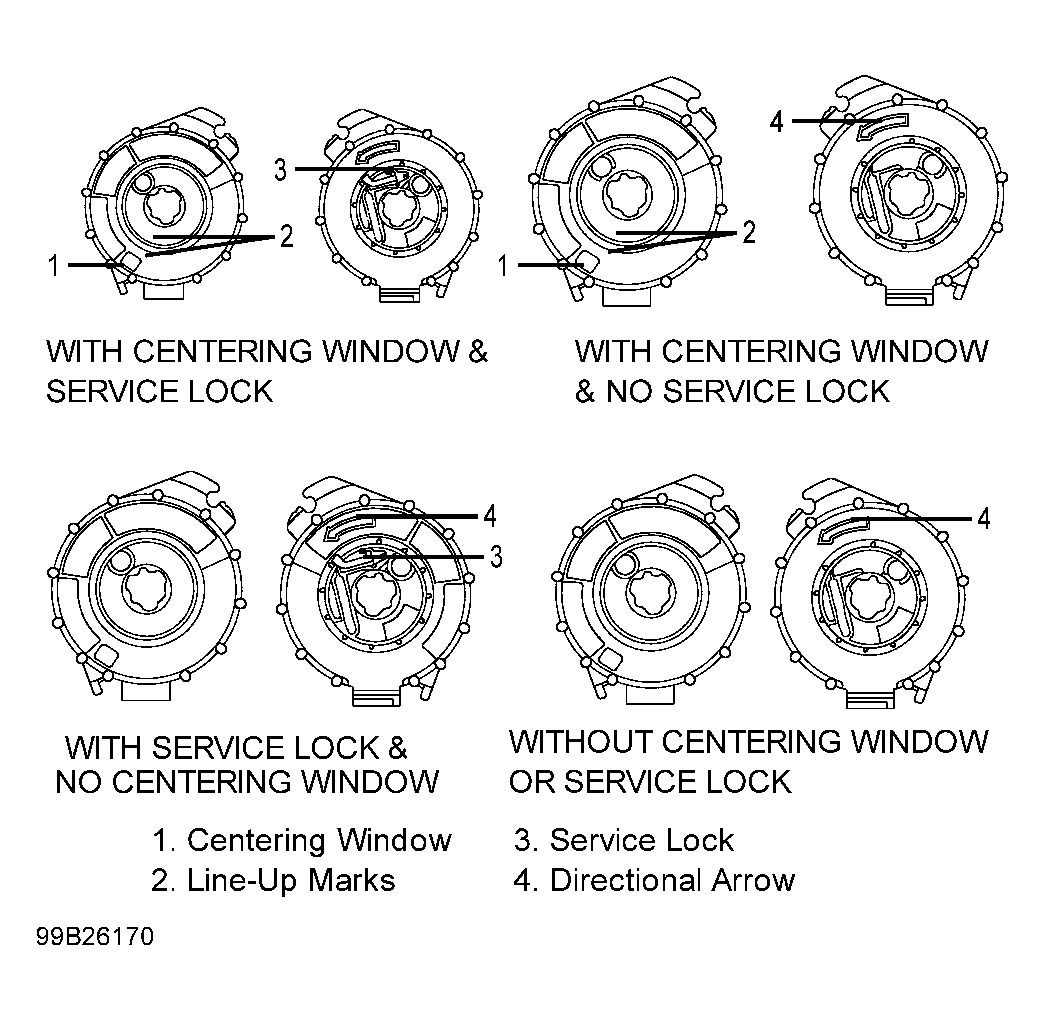

Hold SIR coil face up. See Figure. While depressing service lock, rotate coil hub clockwise until it stops. Rotate coil hub counterclockwise slowly until centering window appears Yellow and line-up marks are aligned. Release service lock.
