Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the clutch pedal assembly in the vehicle.
  2. Connect the CPP switch electrical connector.
  3. Connect the CCR switch electrical connector.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
    Fig 1: Pedal Assembly Bracket Retaining Nuts And Retaining Bolt
    GM885331Courtesy of GENERAL MOTORS CORP.
  4. Install the 2 clutch pedal retaining nuts and 1 bolt.

    Tighten:

    • Tighten the retaining nuts to 12 N.m (106 lb in).
    • Tighten the retaining bolt to 19 N.m (14 lb ft).

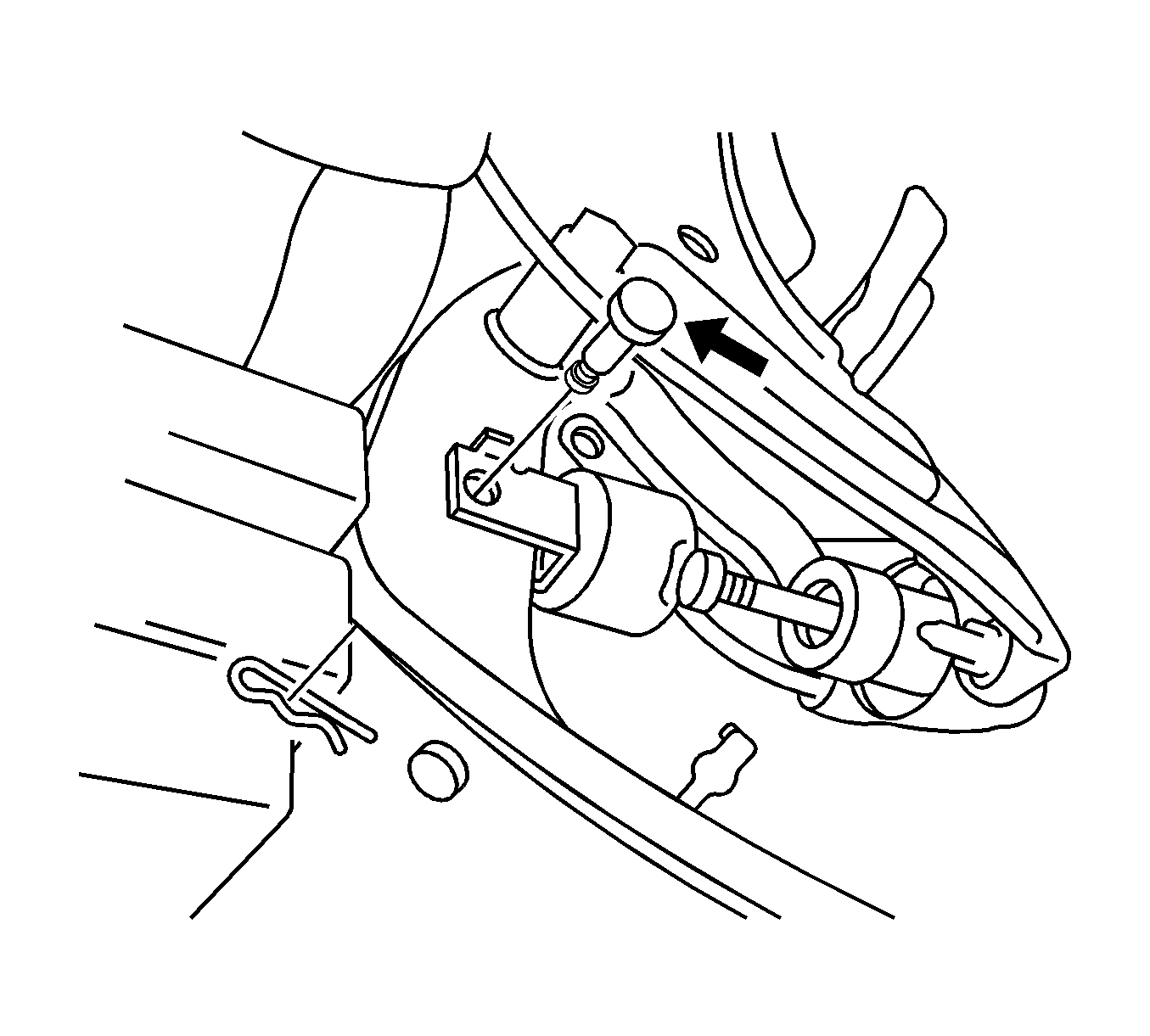

    5. Fig 2: Removing/Installing Clevis Clip And Pin
    GM885330Courtesy of GENERAL MOTORS CORP.
  5. Install the clevis clip and the pin.
  6. Install the Lower Instrument Panel. Refer to Instrument Panel (I/P) Trim Panel Replacement - Lower .
  7. Connect the negative battery cable.
