Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the clutch master cylinder in the vehicle.

Fig 1: Clutch Master Cylinder And Retaining Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the clutch master cylinder retaining nuts.
Tighten: Tighten the clutch master cylinder retaining nuts to 12 N.m (9 lb ft).

Fig 2: Removing/Installing Clevis Clip And Pin

Courtesy of GENERAL MOTORS CORP.

Install the clevis pin and clip.

Fig 3: Clutch Master Cylinder Pipe

Courtesy of GENERAL MOTORS CORP.

Install the hydraulic pipe to the clutch master cylinder.
Install the brake booster assembly in the vehicle. Refer to Hydraulic Clutch Bleeding in Hydraulic Brakes.

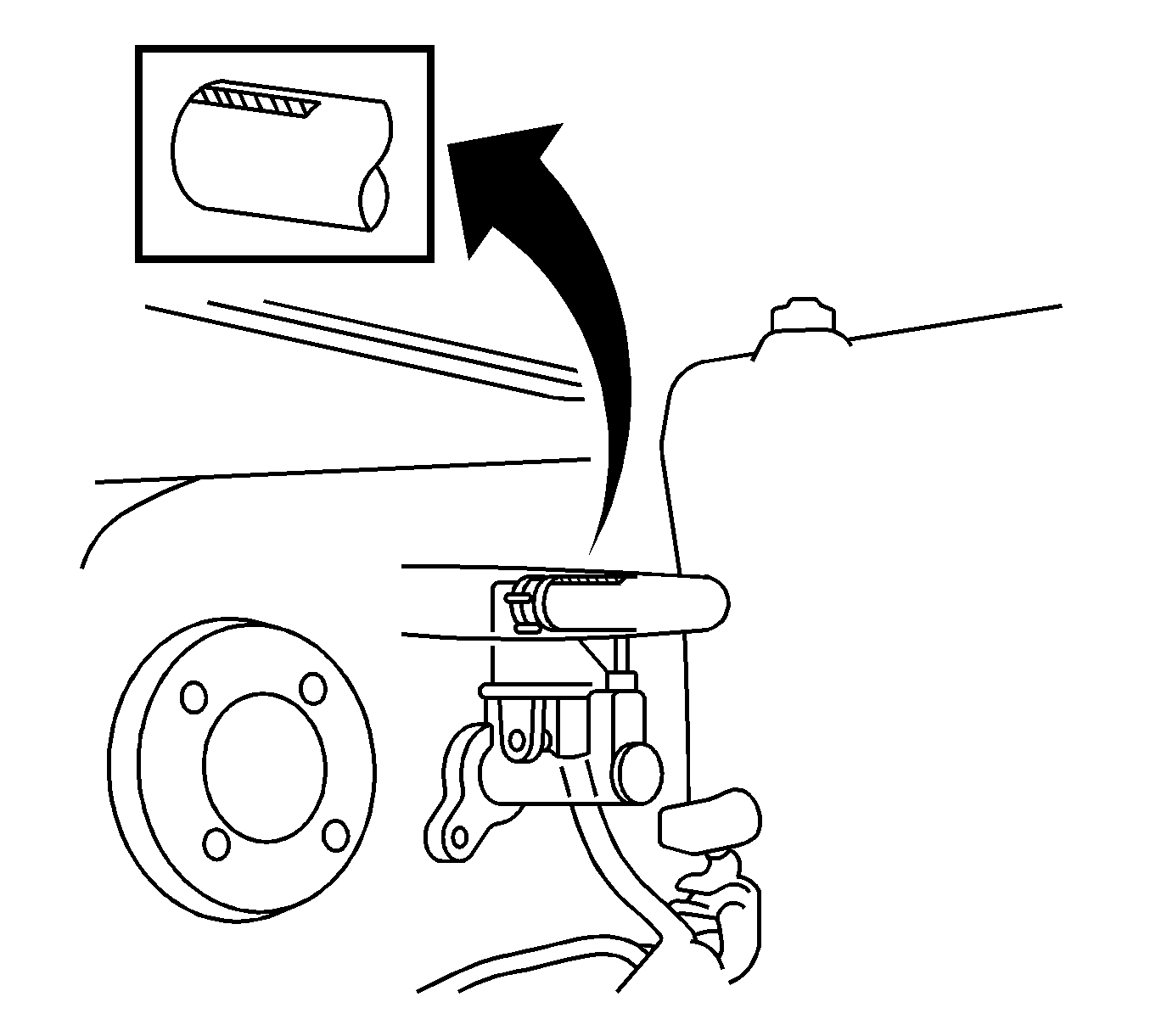

Fig 4: Clutch Reservoir Tube

Courtesy of GENERAL MOTORS CORP.

Connect the reservoir tube to the clutch master cylinder.
Bleed the clutch. Refer to Vacuum Brake Booster Replacement
