Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

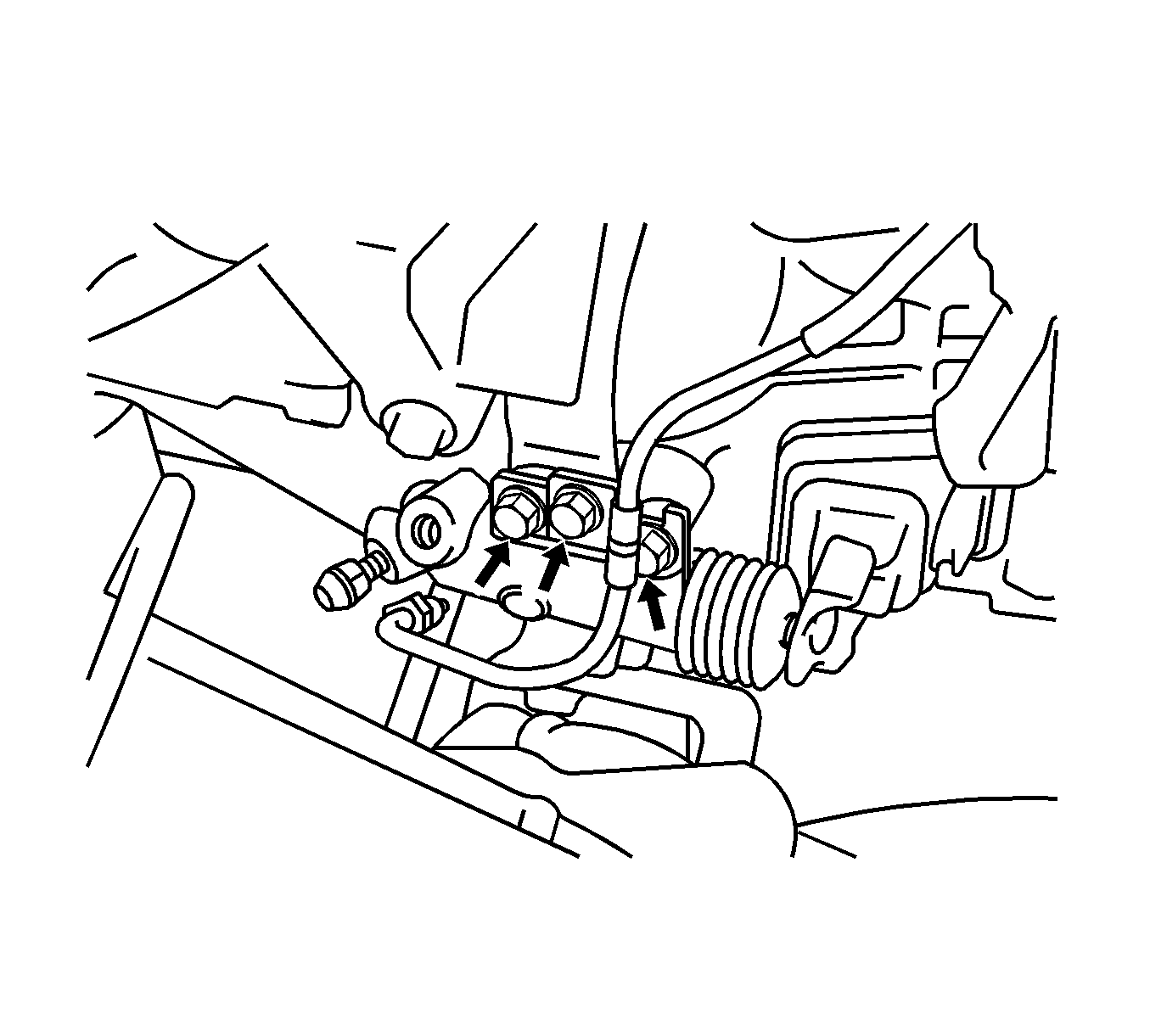

Fig 1: Clutch Actuator Cylinder Bolts

Courtesy of GENERAL MOTORS CORP.

Install the clutch actuator cylinder to the transaxle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the clutch actuator cylinder bolts.
Tighten: Tighten the clutch actuator cylinder bolts to 12 N.m (9 lb ft).

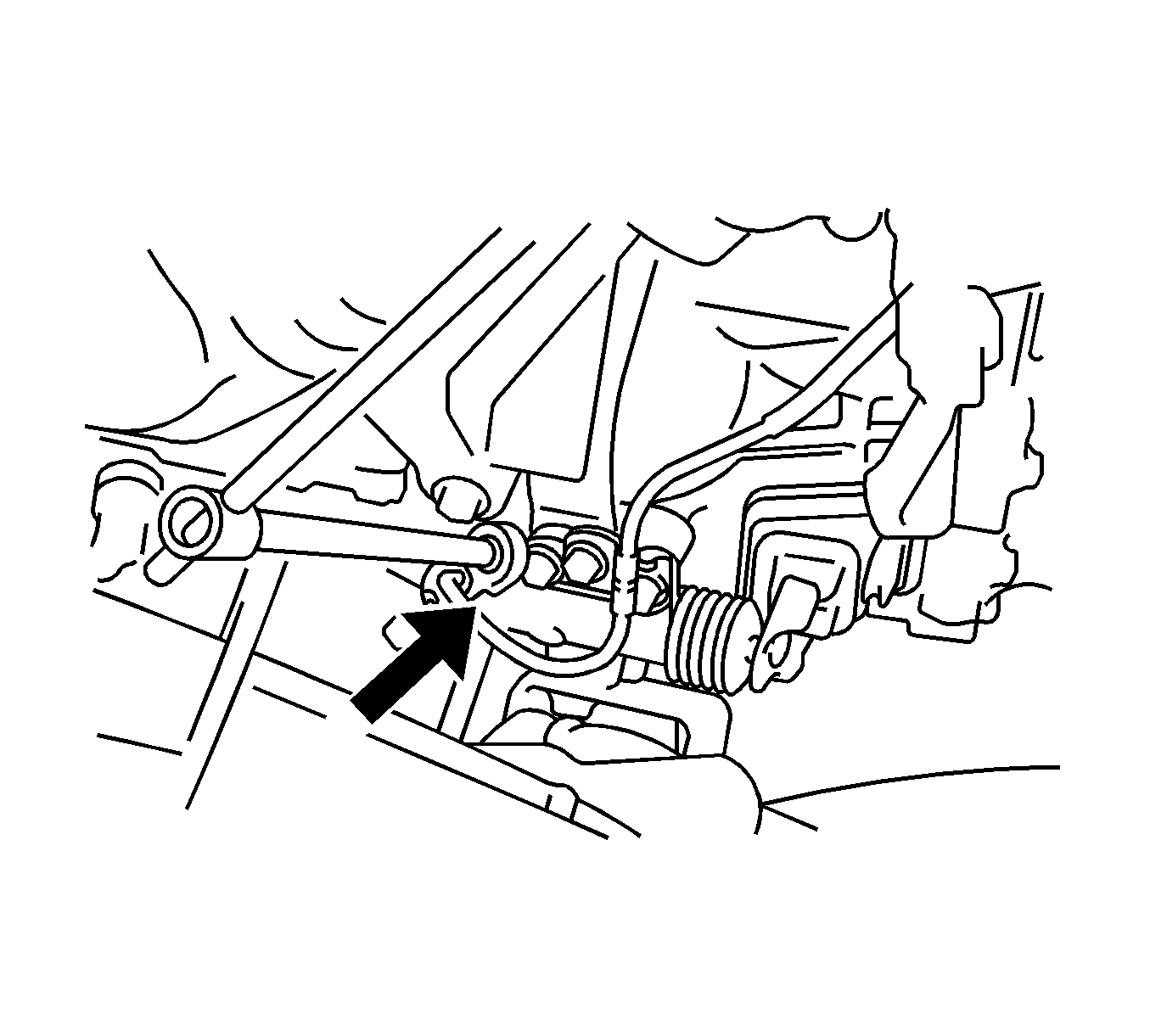

Fig 2: Clutch Actuator Cylinder Fluid Line

Courtesy of GENERAL MOTORS CORP.

Install the clutch actuator cylinder fluid line to the clutch actuator cylinder.
Bleed the hydraulic clutch system. Refer to Hydraulic Clutch Bleeding .
