Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Place a reference mark on the pinion flange yoke and the differential pinion flange.
Remove the 4 bolts and the 4 nuts and washers.

Fig 1: Shaft Bearing Support Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the mid shaft bearing support bolts (1,2).
Remove the sliding yoke (2) and the two piece propeller shaft assembly from the transmission.
Inspect the shaft for dents or other damage. Replace the shaft if the shaft is damaged.
Inspect the universal joints for smooth pivoting. If the universal joints bind or appear tight replace the universal joints as assembled.

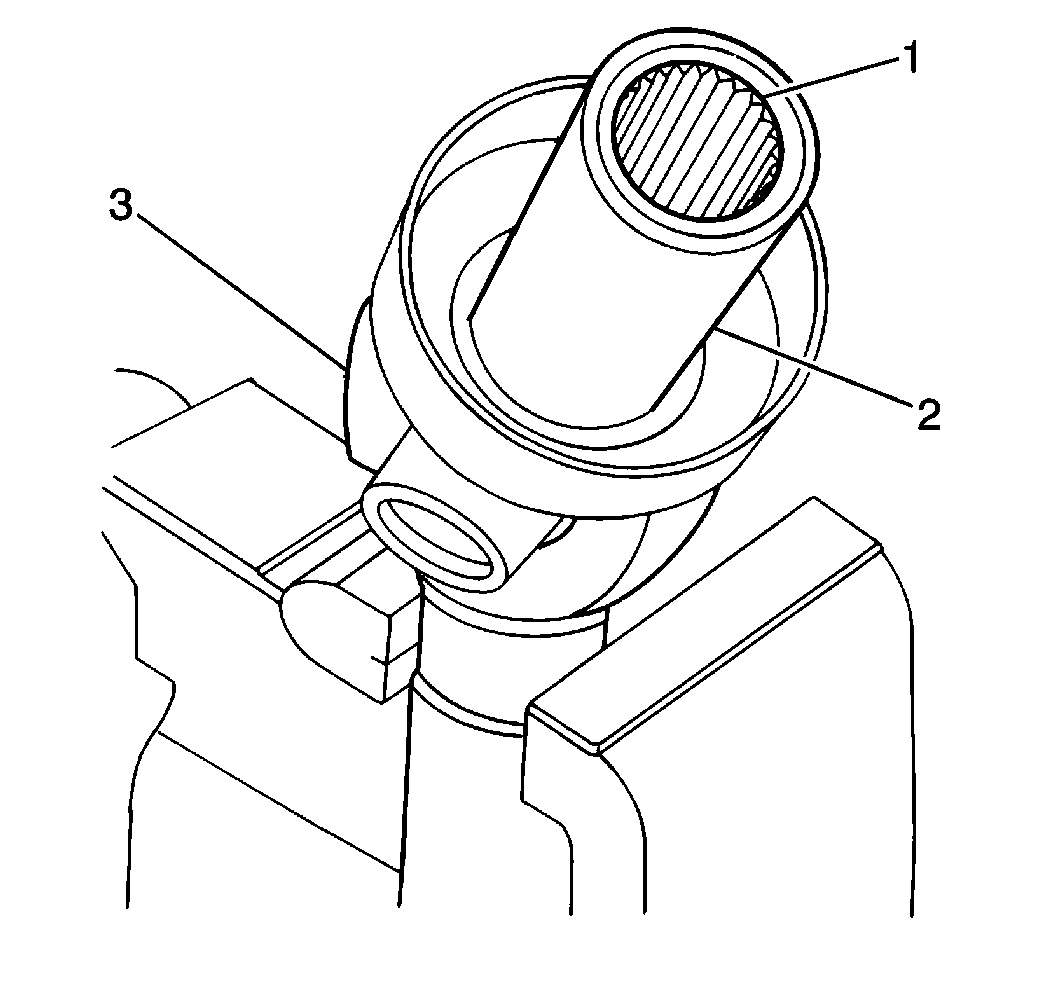

Fig 2: Sliding Yoke Splines And Sliding Yoke

Courtesy of GENERAL MOTORS CORP.

Inspect the sliding yoke splines (1) for excessive wear or damage. If the splines (1) appear worn or rounded, replace the sliding yoke (3).
Inspect the sliding yoke for the following:
- Scoring
- Burrs
- Other damage
  If the sliding yoke surface appears scored or rough, replace the sliding yoke.
Inspect the pinion flange yoke for the following:
- Cracks
- Distortion
- Other damage
  If the pinion flange yoke appears damaged or distorted, replace the pinion flange yoke.
