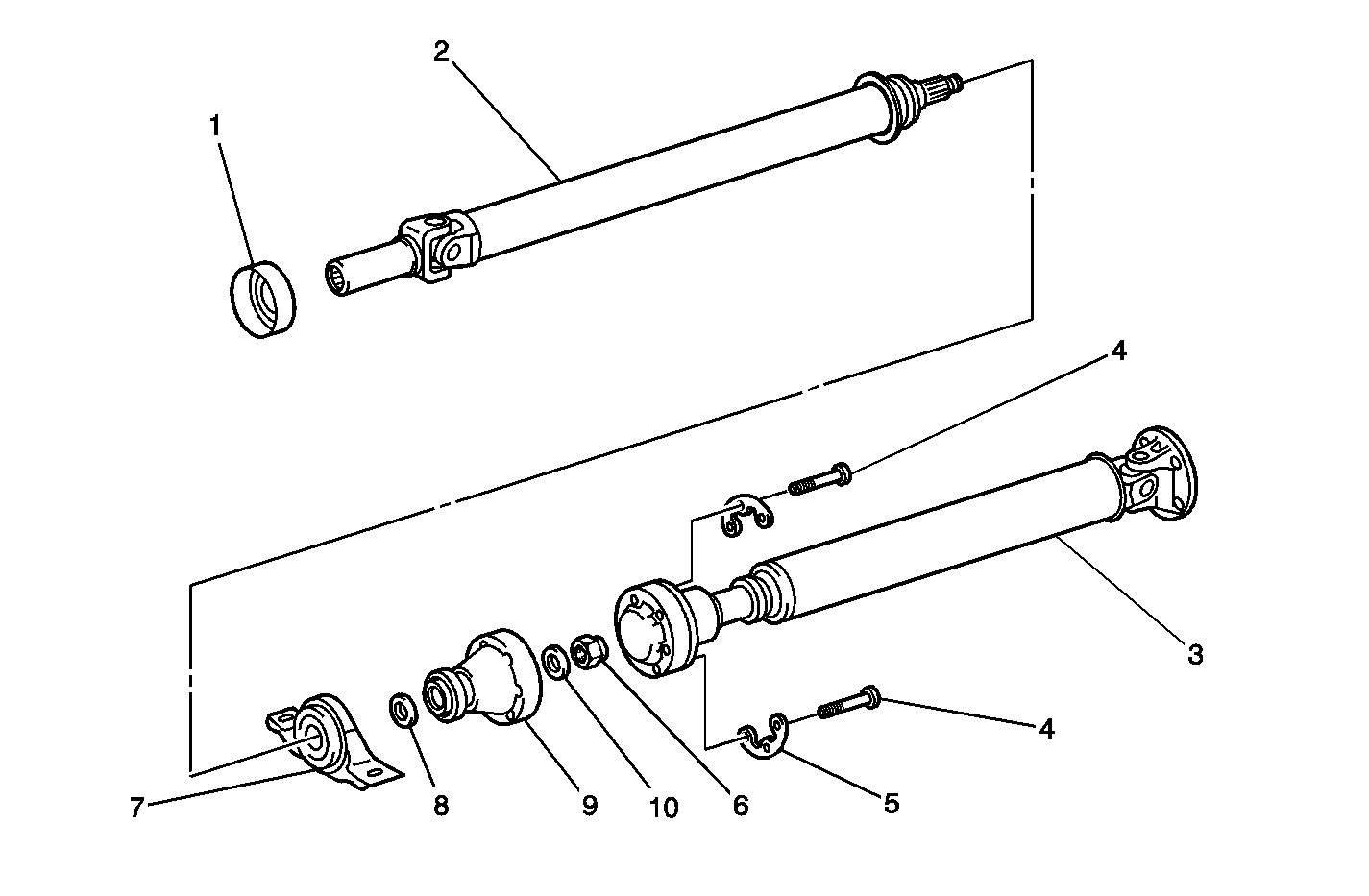

Driveline Disassembled Views
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Dust Cover |
| 2 |
Intermediate Shaft |
| 3 |
Rear Propeller Shaft |
| 4 |
Cross Groove Joint Bolt |
| 5 |
Cross Groove Joint Washer |
| 6 |
Universal Joint Flange Retaining Nut |
| 7 |
Center Support Bearing |
| 8 |
Plate Washer |
| 9 |
Universal Joint Flange |
| 10 |
Plate Washer |
